VPC Peering In AWS

In this article, we will discuss VPC peering in AWS.

Purpose

VPC peering allows 2 EC2 instances in different VPCs to communicate with each other.

Steps

For setting up VPC peering, we will work on the following steps: -

Create a peering connection
Accept the peering request
Adding an entry in the route tables
Launch 2 EC2 instances
Enable inbound and outbound rules in the firewall
Ping EC2

Let us get started.

Create A Peering Connection

First, create 2 VPCs. The next step is to Enable RDP For An EC2 Instance For A Newly Created VPC.

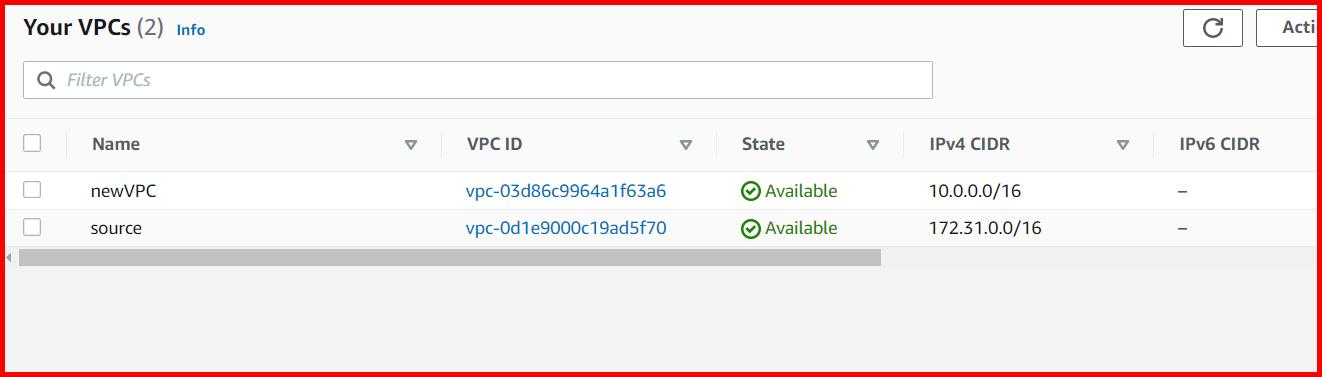

Picture showing 2 VPC connection in AWS console

Click to Enlarge

To create the VPC peering, click on Peering Connections on the left-hand side menu.

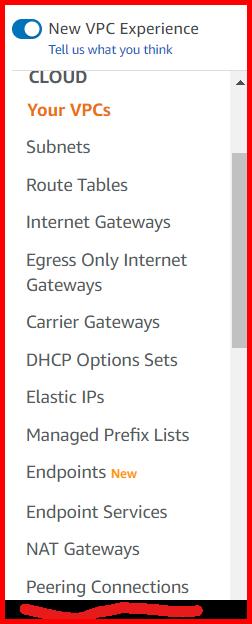

Picture showing the Peering Connections left-side menu

Click to Enlarge

A screen appears on the right-hand side to create the connection.

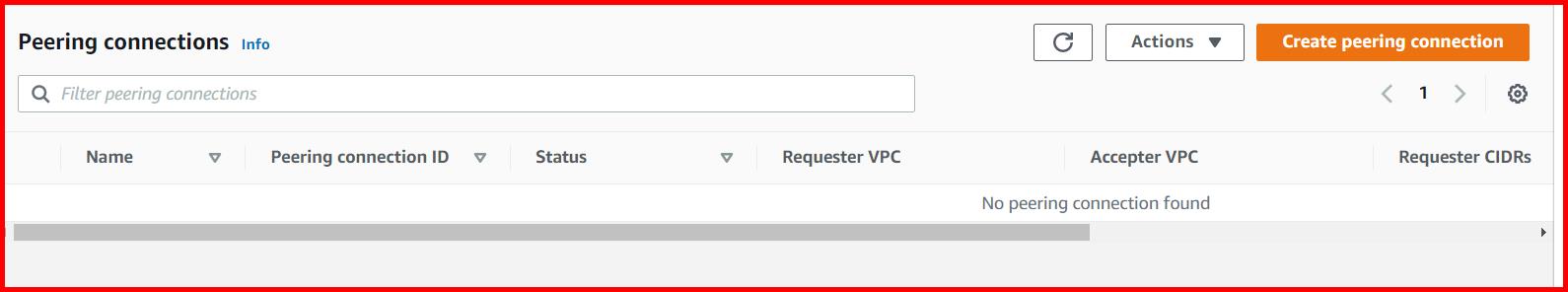

Picture showing the Peering Connection screen in AWS console

Click to Enlarge

Click on the Create peering connection button. A screen will appear where you can specify the source and destination VPC.

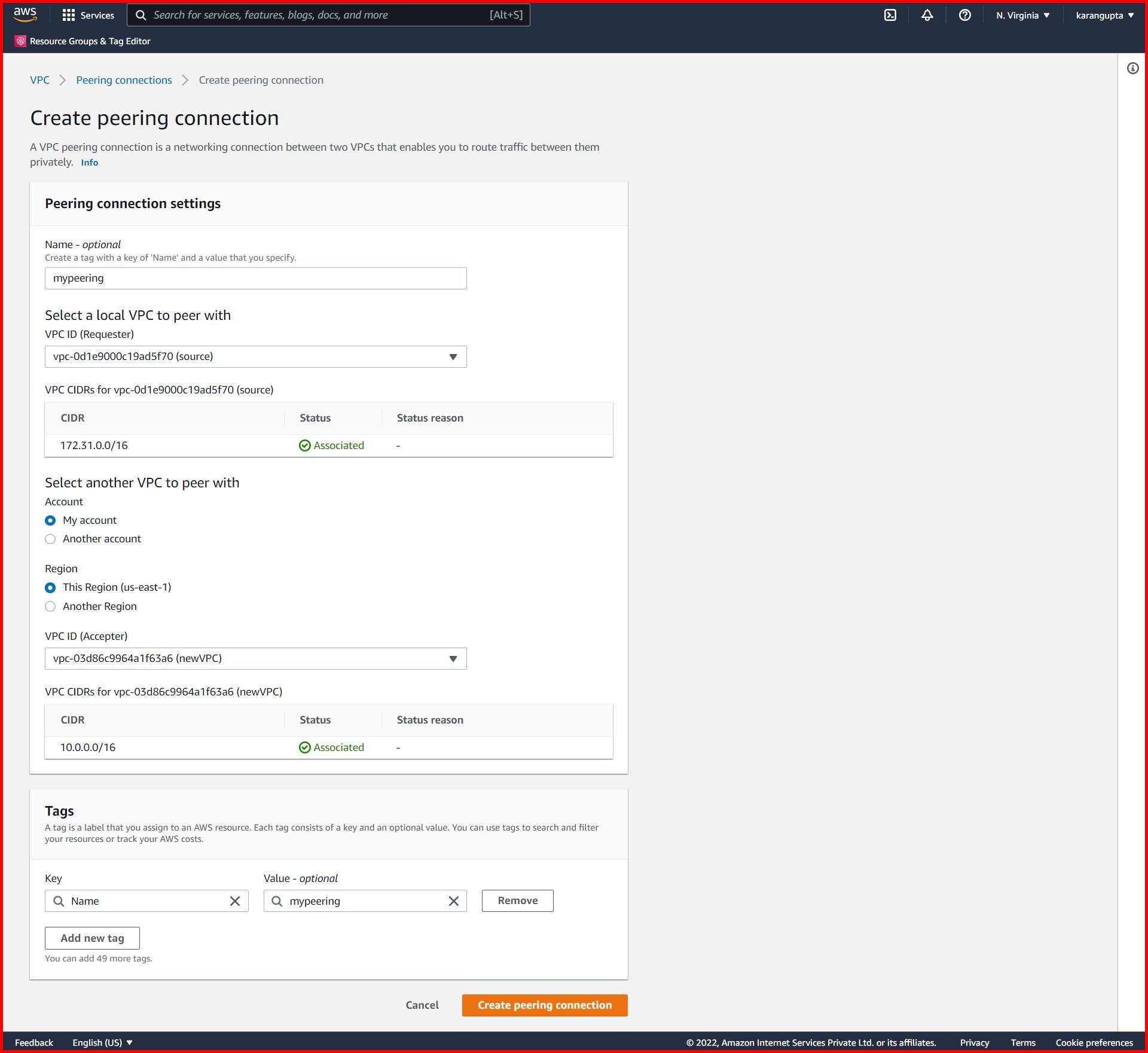

Picture showing the Create peering connection screen in AWS console

Click to Enlarge

Click on the Create peering connection at the bottom.

Accept The Peering Request

Once the peering connection is established, the status of the request is Pending acceptance. To accept the request, select the request and click on Action → Accept request.

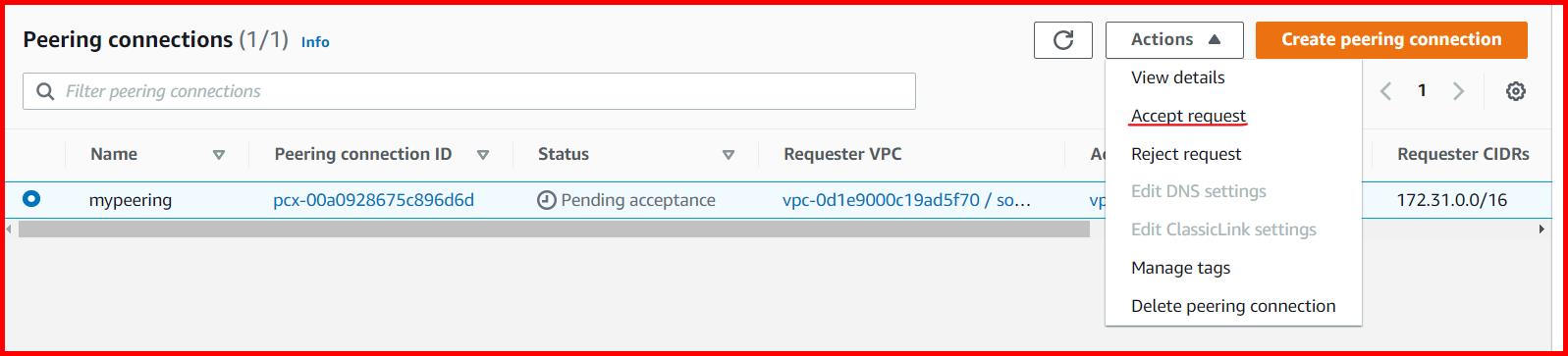

Picture showing accepting the peering connection

Click to Enlarge

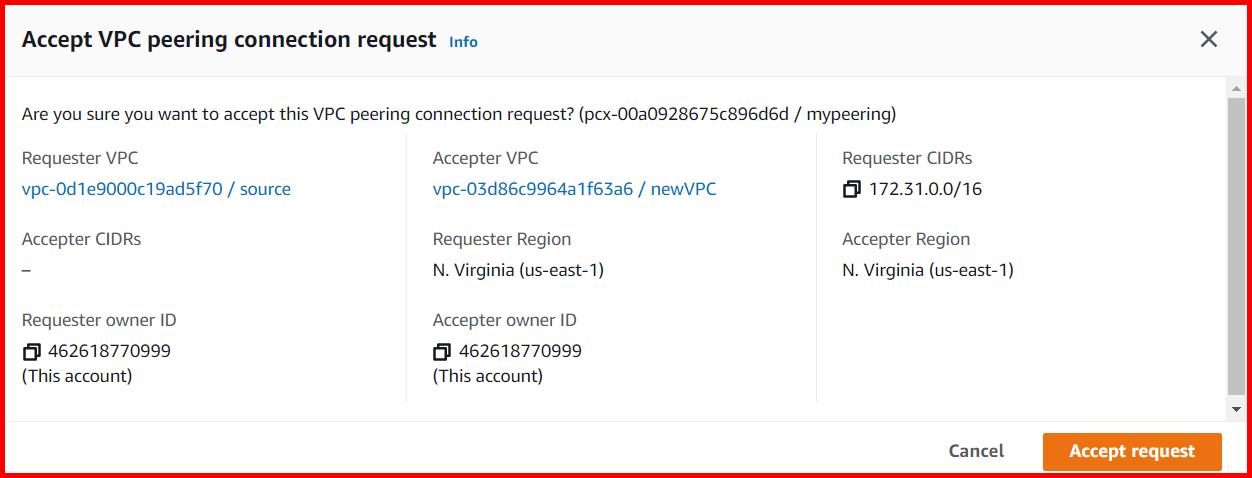

A popup window will appear to accept the request.

Click to Enlarge

Click on the Accept request button to accept the request.

Adding An Entry In The Route Tables

Add an entry of the first VPC in the route table of the second VPC.

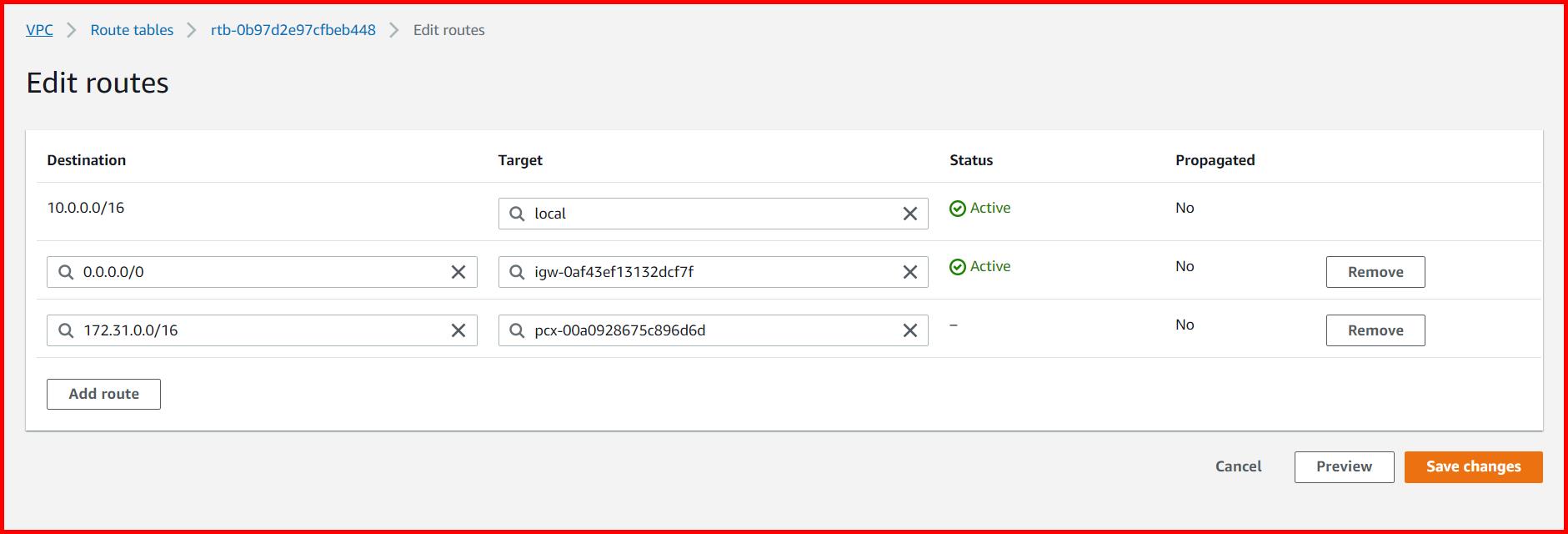

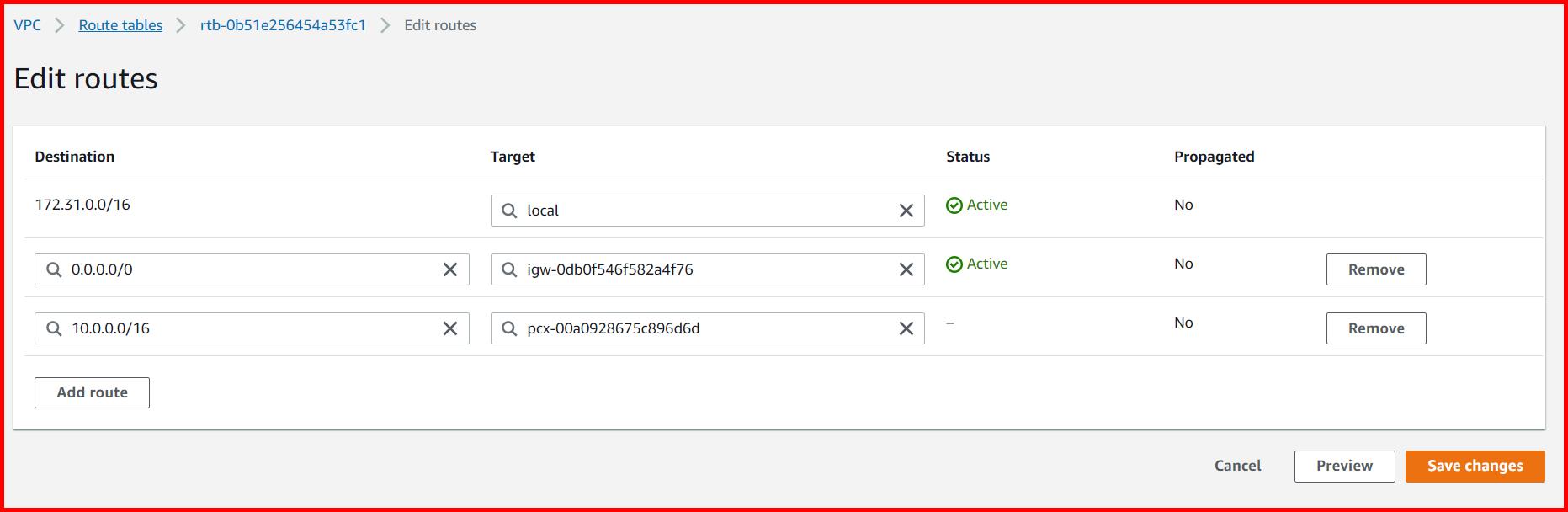

Picture showing adding an entry of VPC in route table

Click to Enlarge

Click to Enlarge

Here, Target is the name of the peering connection.

Launch 2 EC2 Instances

Launch 2 EC2 instances (one in each VPC).

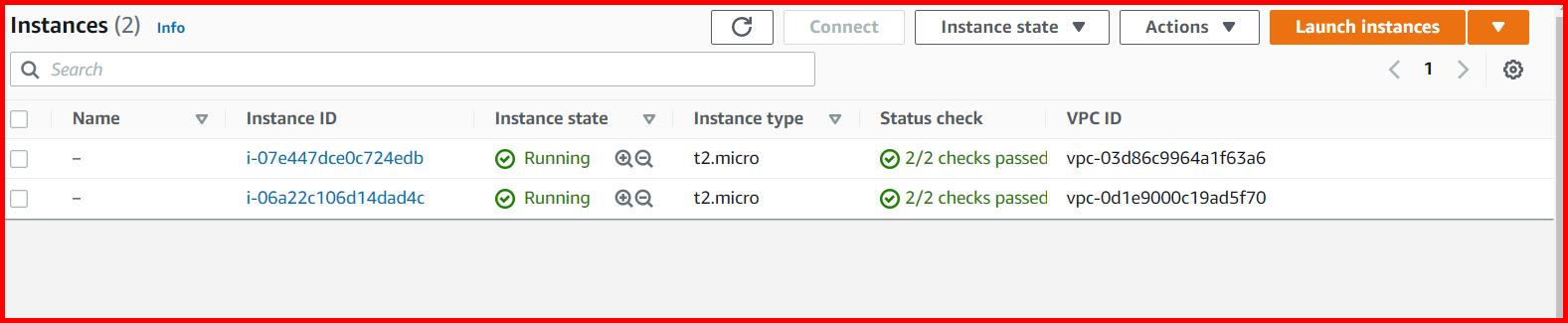

Picture showing launching 2 EC2 instances

Click to Enlarge

Enable Inbound And Outbound Rules In The Firewall

Follow this link to: -

Enable inbound rules in the security group
Enable File and Printer Sharing (Echo Request - ICMPv4) in the firewall

This should be done for both EC2 instances.

Ping EC2

Open the command prompt in the EC2 instance and ping the second EC2 instance using private IP.

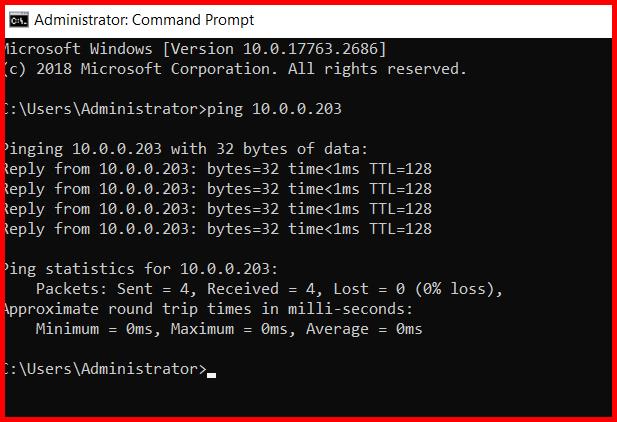

Picture showing pinging the EC2 instance in another VPC

Click to Enlarge

The connection is established.
