Send An Email If Any Finding Is Logged In AWS Guard Duty

In this article, we will send an email if any finding is logged in AWS Guard Duty.

Steps

For this article, we will work on the following steps: -

Create a topic and a subscription
Create a rule in CloudWatch
Enable Guard Duty
Create a role
Create a new security group
Launch an EC2 instance
Assign role to the EC2 instance
Download tor browser and open the site

Let us get started.

Create A Topic And A Subscription

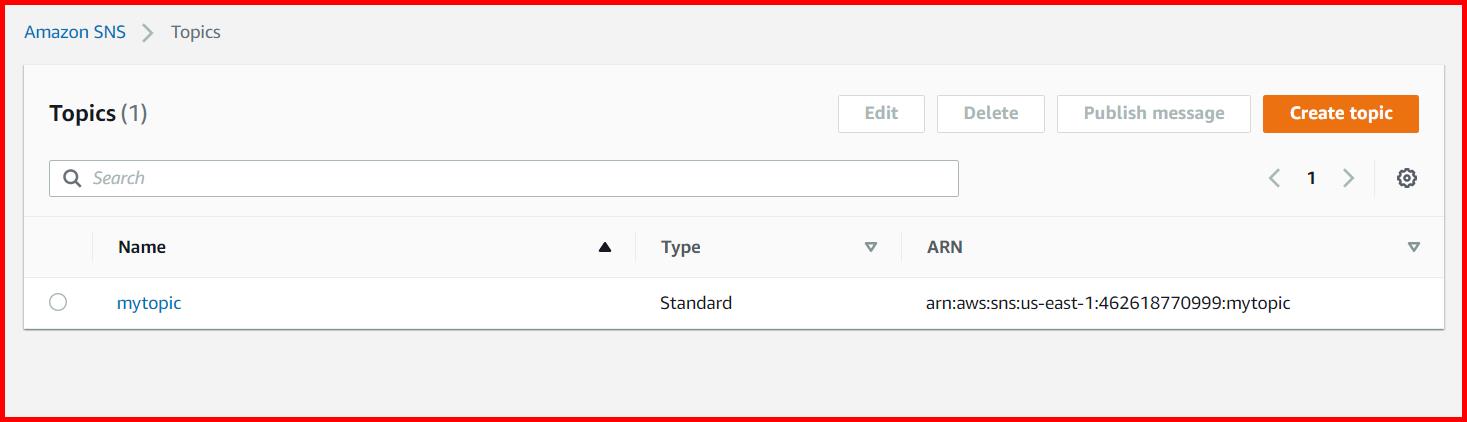

First, create a topic and a subscription.

Picture showing the topic created in aws console

Create A Rule In CloudWatch

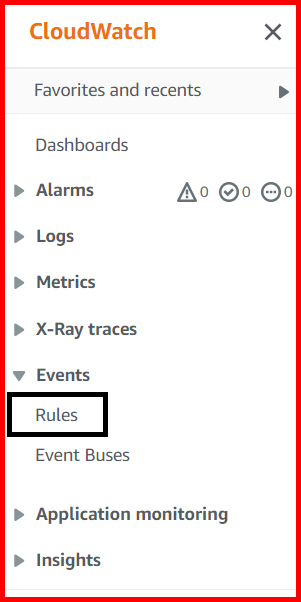

For creating the rule, go to the CloudWatch service. From the left-hand side menu, click on the Rules menu.

Picture showing the Rules menu in AWS cloudwatch

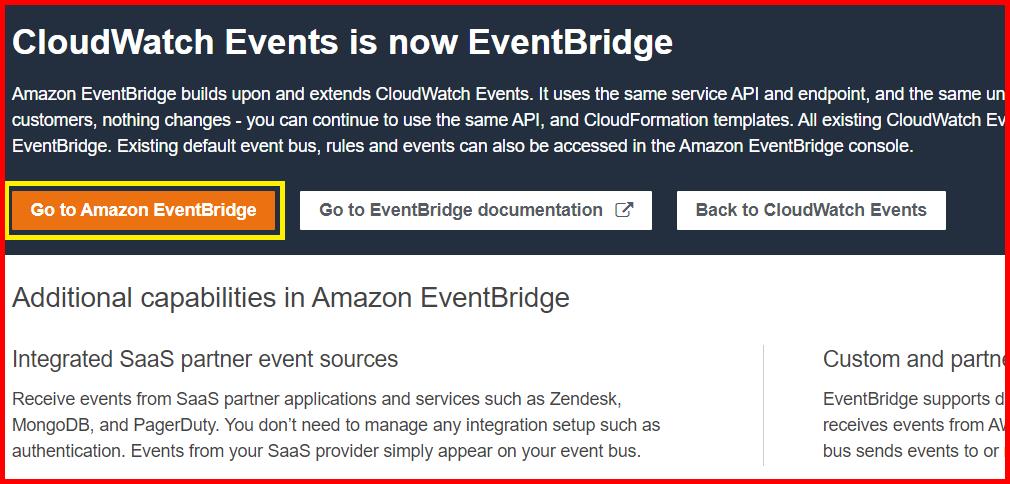

The CloudWatch screen will appear. On the CloudWatch screen, click on the Go to Amazon EventBridge button.

Picture showing the Go to Amazon EventBridge button in Cloudwatch

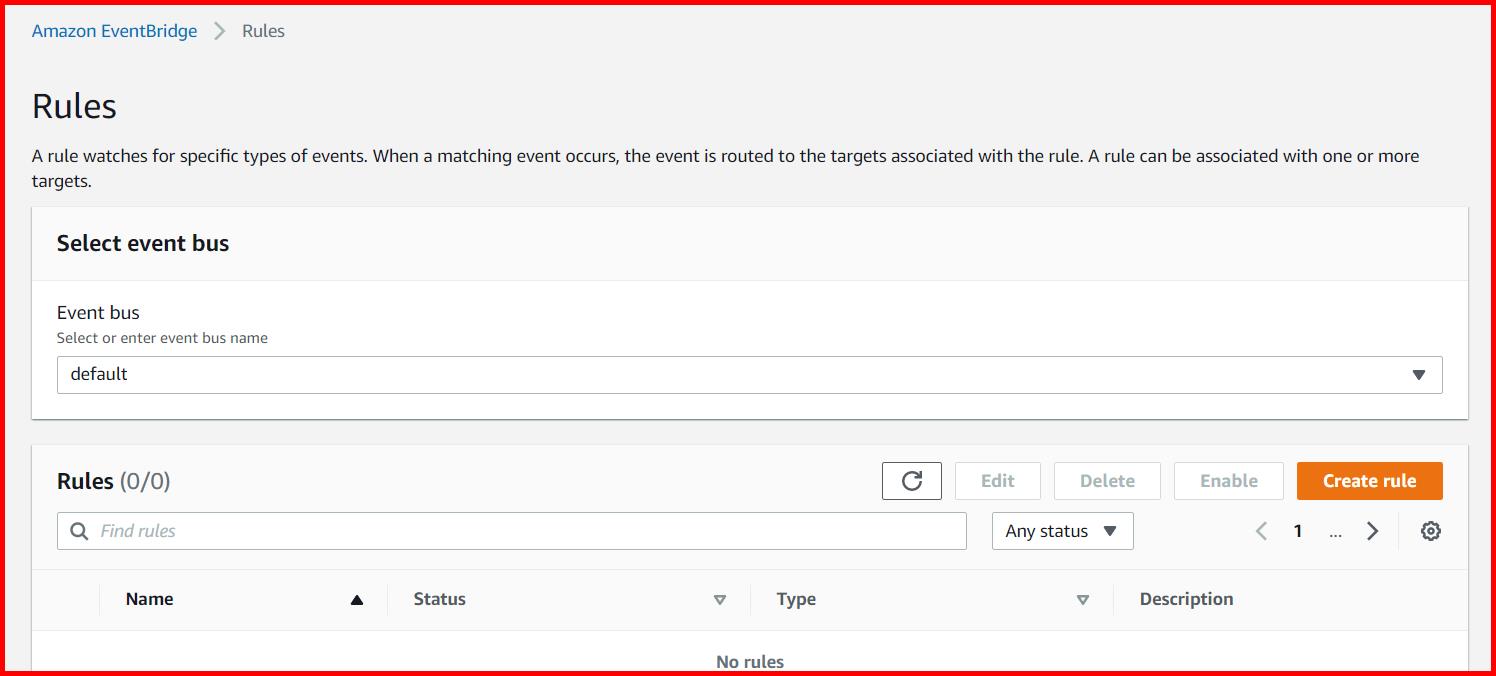

The rule screen will appear. Click on the Create rule button.

Picture showing the Rules screen in Cloudwatch

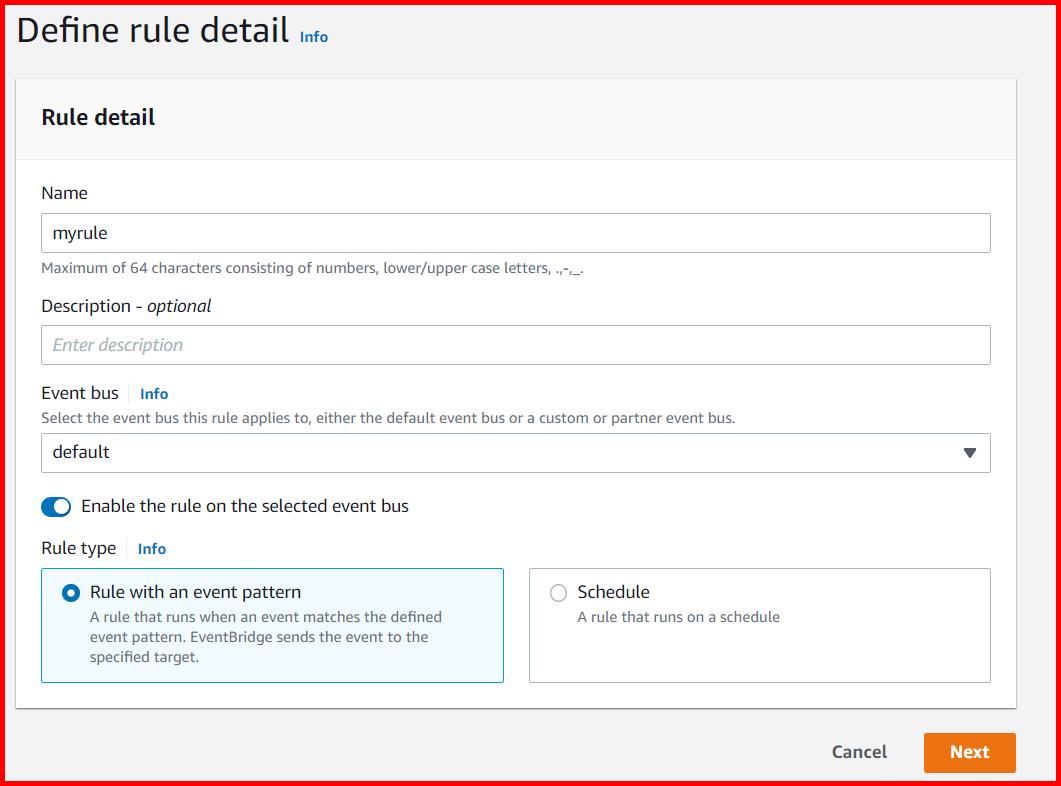

In the create rule screen, enter the Name and click on the Next button.

Picture showing the create rule screen in Cloudwatch

In the next screen, enter the following JSON in the Event Pattern section.

{
  "source": [
    "aws.guardduty"
  ],
  "detail-type": [
    "GuardDuty Finding"
  ],
  "detail": {
    "severity": [
      4,
      4.0,
      4.1,
      4.2,
      4.3,
      4.4,
      4.5,
      4.6,
      4.7,
      4.8,
      4.9,
      5,
      5.0,
      5.1,
      5.2,
      5.3,
      5.4,
      5.5,
      5.6,
      5.7,
      5.8,
      5.9,
      6,
      6.0,
      6.1,
      6.2,
      6.3,
      6.4,
      6.5,
      6.6,
      6.7,
      6.8,
      6.9,
      7,
      7.0,
      7.1,
      7.2,
      7.3,
      7.4,
      7.5,
      7.6,
      7.7,
      7.8,
      7.9,
      8,
      8.0,
      8.1,
      8.2,
      8.3,
      8.4,
      8.5,
      8.6,
      8.7,
      8.8,
      8.9
    ]
  }
}

Picture showing adding the JSON for event pattern

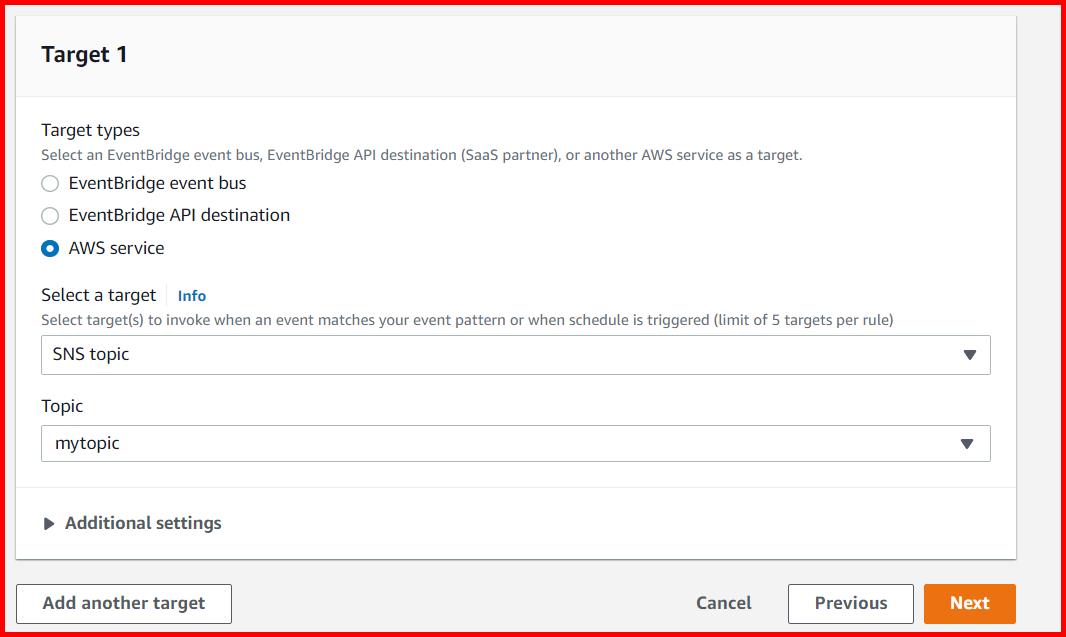

Scroll down to the bottom and click on the Next screen. In the next screen, select Target as the SNS topic created in the previous section.

Picture showing specifying the target as SNS topic

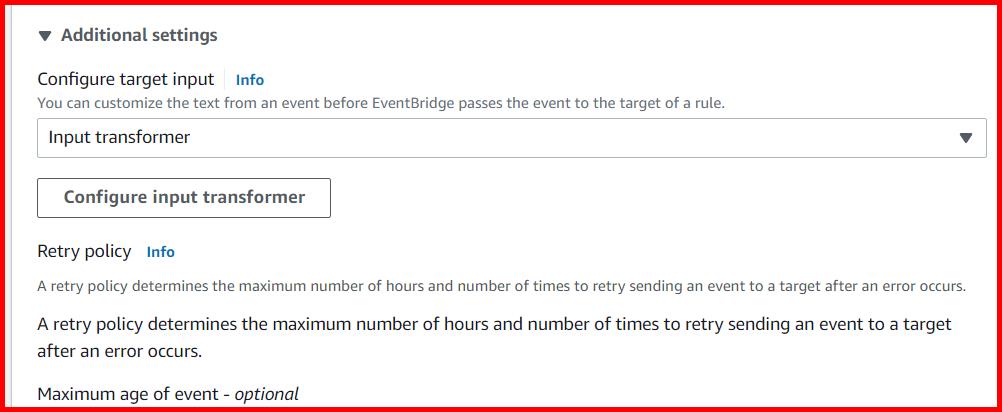

Expand the Additional settings section. In the Additional settings section, select the Configure target input as Input transformer. Then, click on the Configure input transformer button.

Picture showing the Configure target input button for specifying the input json

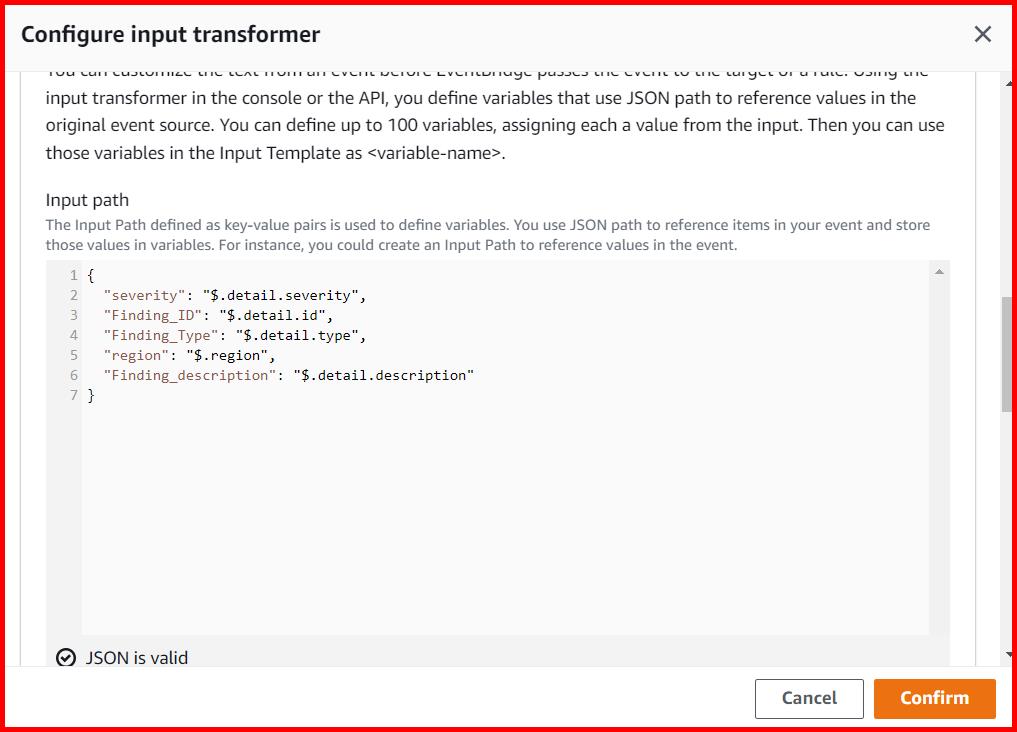

A popup window will appear. In the Input path section, enter the following JSON.

{
  "severity": "$.detail.severity",
  "Finding_ID": "$.detail.id",
  "Finding_Type": "$.detail.type",
  "region": "$.region",
  "Finding_description": "$.detail.description"
}

Picture showing pasting the input transformer json

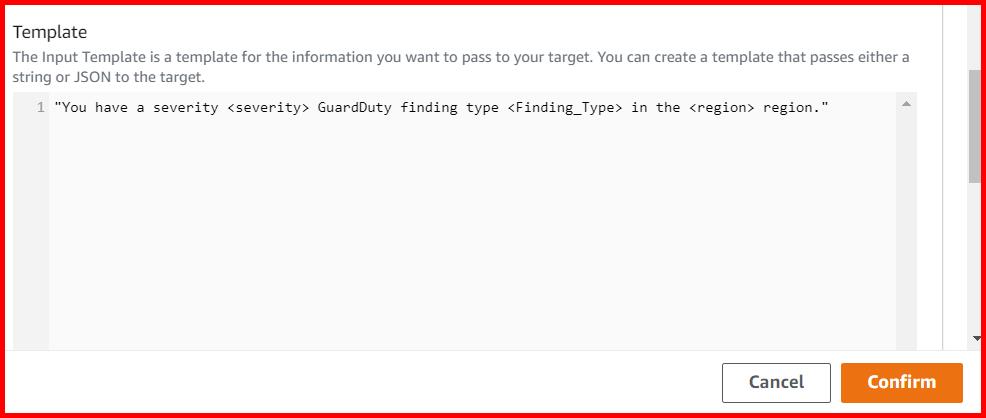

Scroll down to the Template section and add the following XML.

"You have a severity <severity> GuardDuty finding type <Finding_Type> in the <region> region."

Picture showing pasting the xml of template

Click on the Confirm button to close the window. In the parent window, click on the Next button. In the next screen, you can add tags.

Picture showing the screen for adding Tags

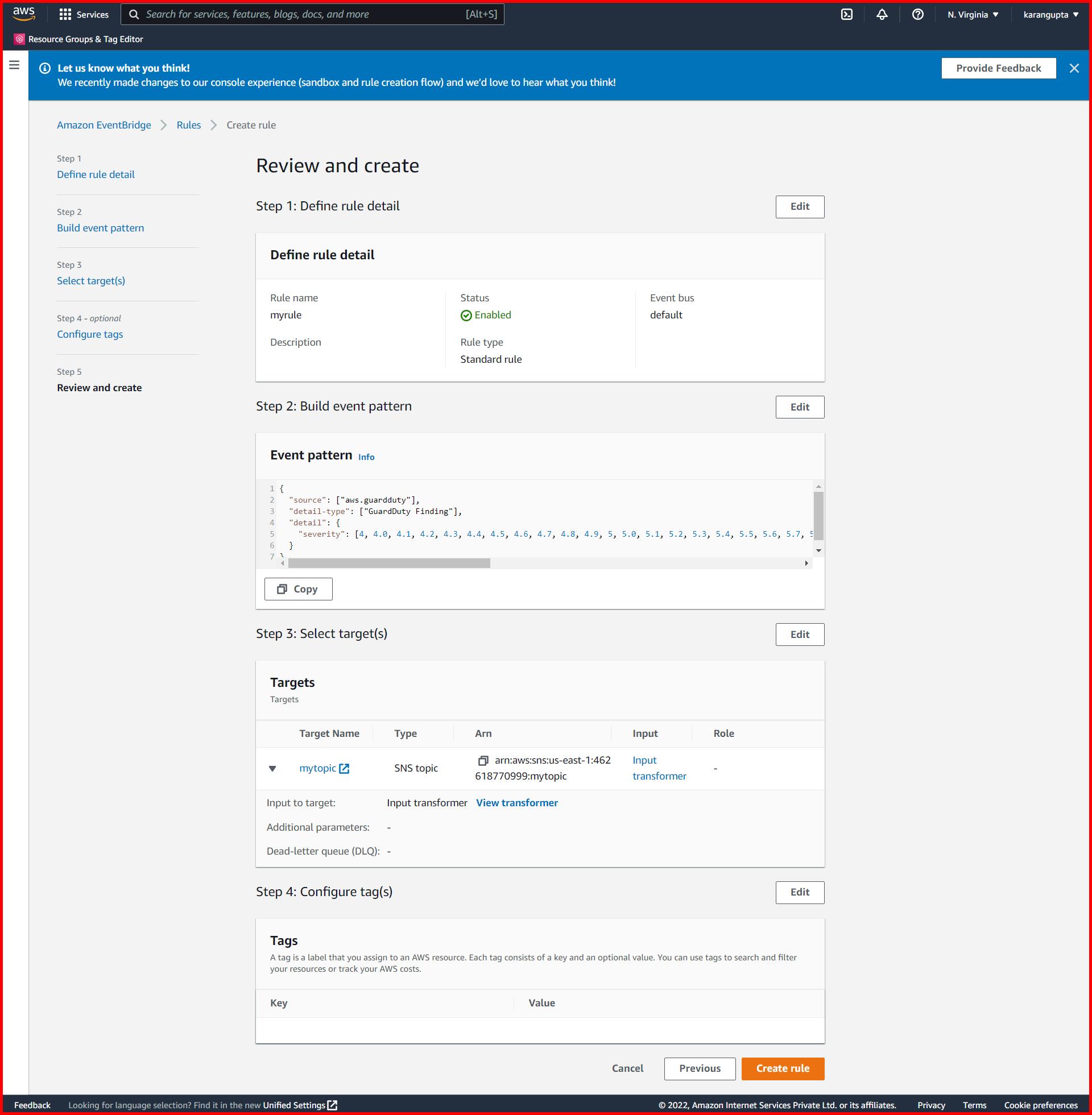

Click on the Next button. The next screen is the review screen. Review the information and click on the Create rule button.

The rule is created.

Enable Guard Duty

The next step is to enable guard duty.

Create A Role

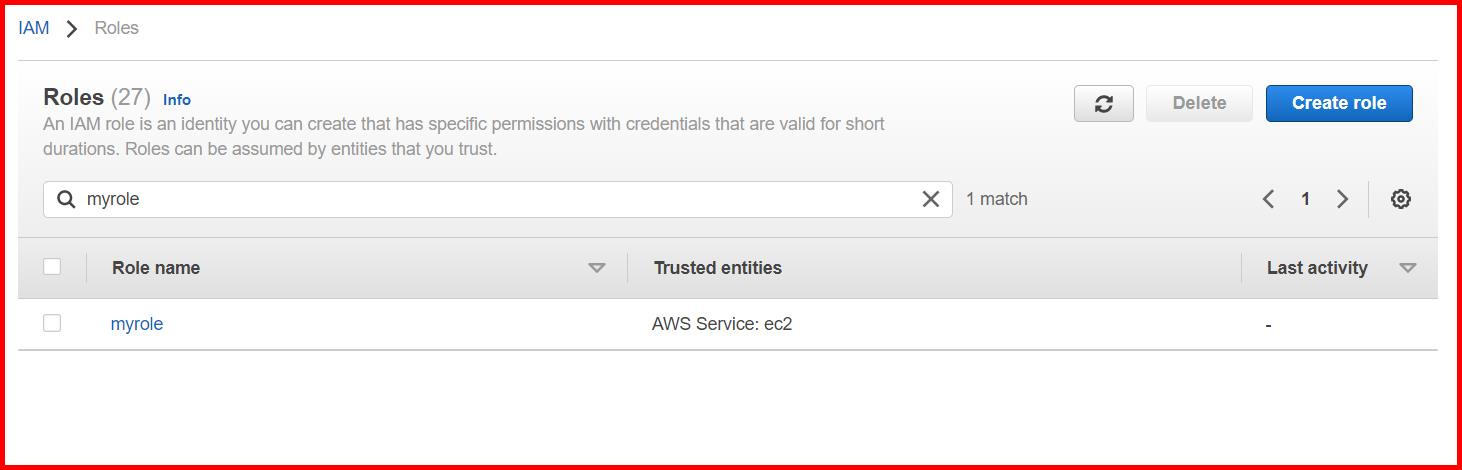

Create a role with the AdministratorAccess permission.

Picture showing the role is created in IAM

Create A New Security Group

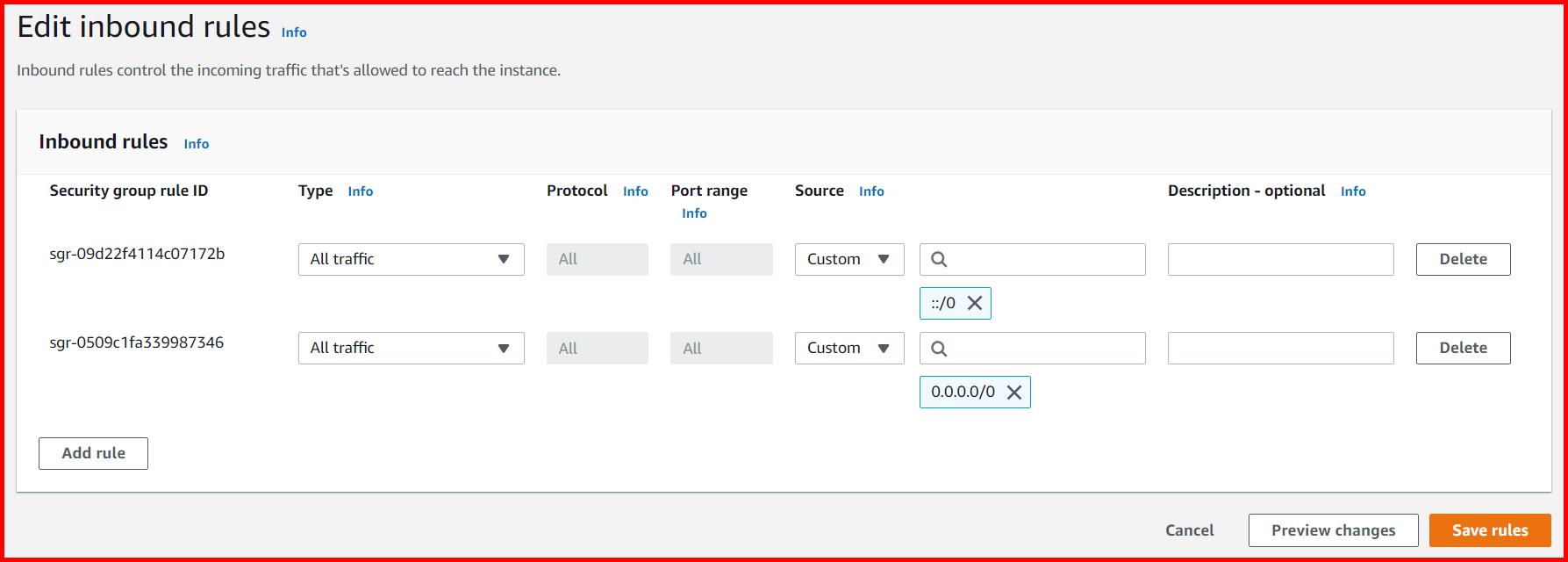

Create a security group with the following inbound rules.

Picture showing the new security group created in AWS console

Launch An EC2 Instance

The next step is to launch an EC2 instance.

Assign Role To The EC2 Instance

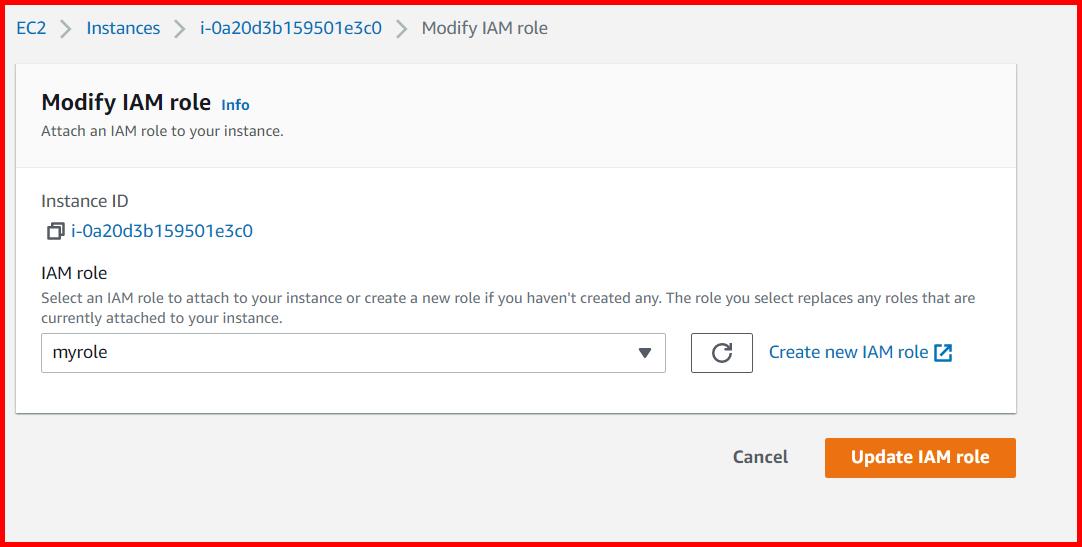

Assign role to the EC2 instance.

Picture showing assigning the role to EC2 instance

Download Tor Browser And Open The Site

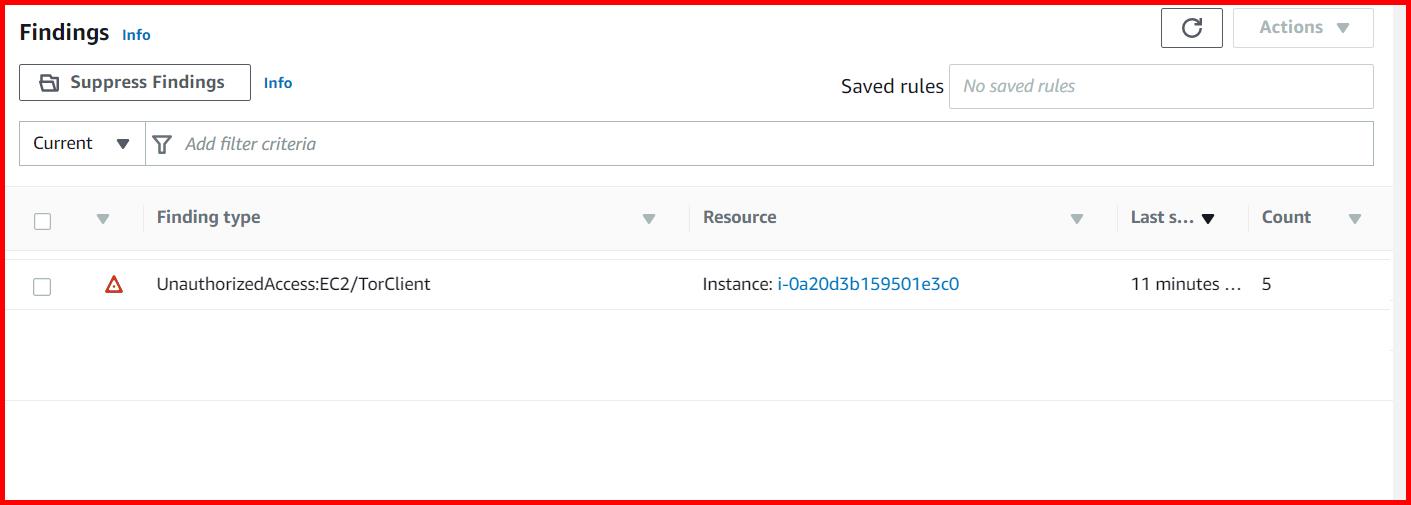

Login to the EC2 instance and download the Tor browser. Navigate to any onion site. The findings will be logged in Guard Duty.

Picture showing the findings logged in Guard Duty

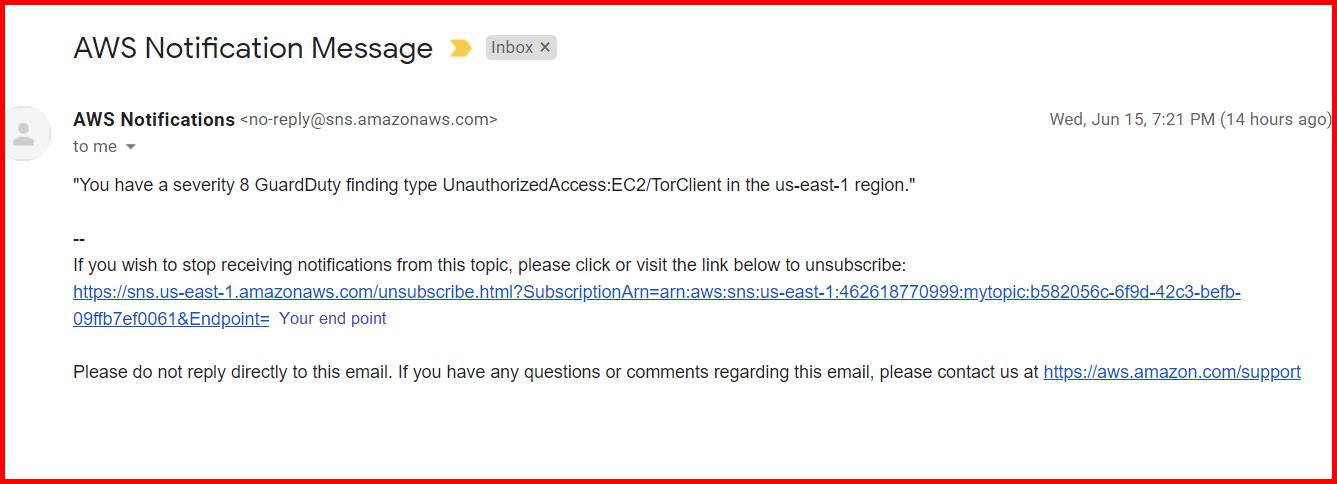

And an email will also be received.

Picture showing an email triggered when a finding is logged in Guard Duty
