Amazon Simple Notification Service

In this article, we will discuss Amazon Simple Notification Service.

Purpose

The Amazon Simple Notification Service (SNS) supports the publisher-subscriber model of communication.

In the publisher-subscriber model, the publisher sends a message and the subscribers (one or more than one) receives the messages. All the communication is done asynchronously.

Picture showing the representation of publisher subscriber model

Click to Enlarge

Scenario

In this article, we will send an email to the subscriber once the message is published by the publisher.

Steps

For SNS, we will work on the following steps: -

Create a topic
Create a subscription
Confirm the email
Verify the credentials
Publish message

So, let us get started.

Create A Topic

First, search the word SNS in the search box and click on the Simple Notification Service in the search result.

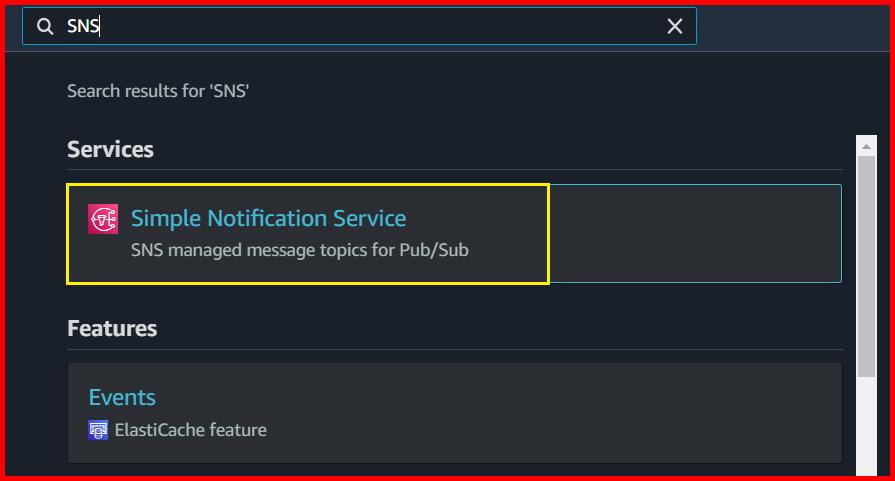

Picture showing the Simple Notification Service in the search result

Click to Enlarge

The SNS screen will appear. Click on the Next step button in the Create topic section.

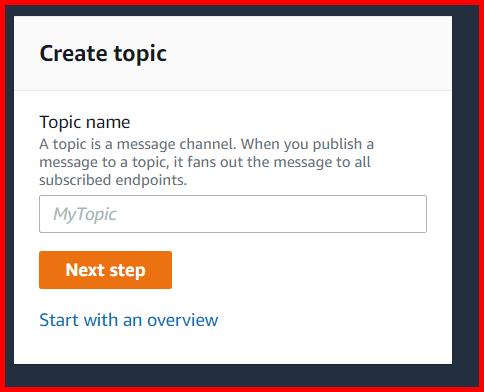

Picture showing the field to enter the topic name

Click to Enlarge

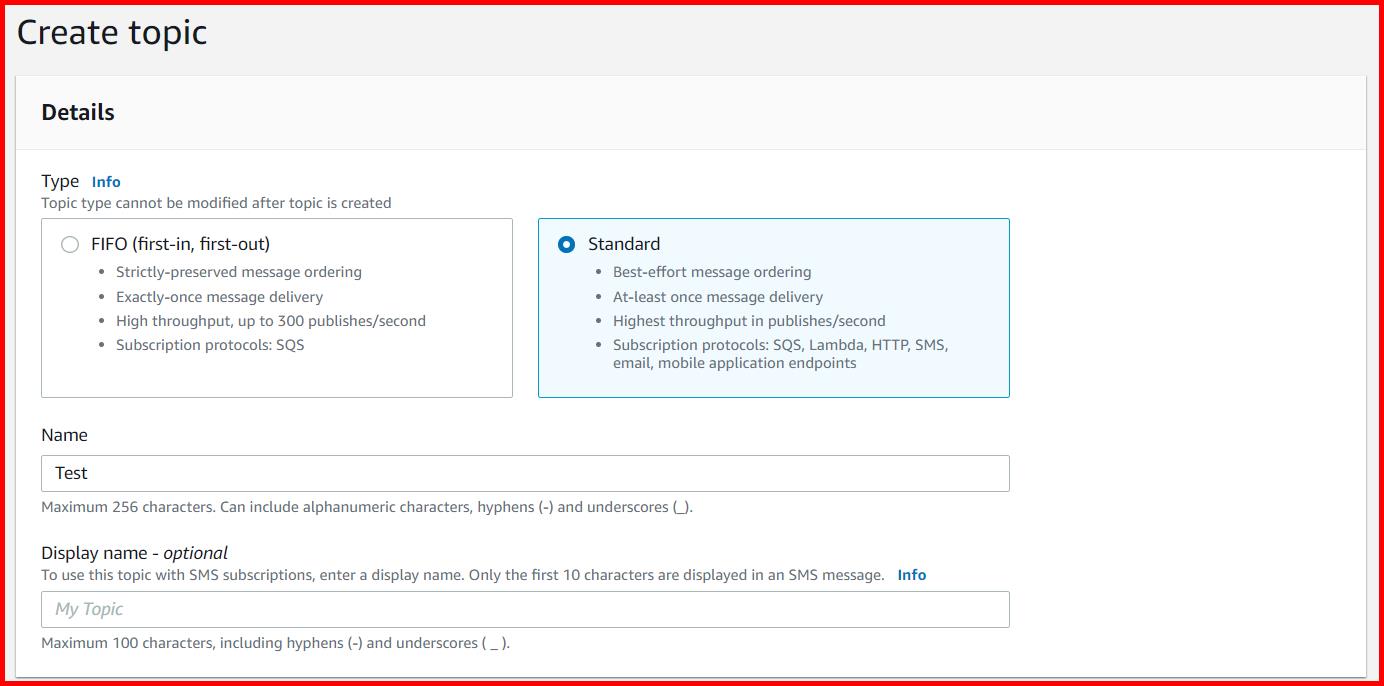

In the create topic screen, select the Type as Standard and enter the Name of the topic.

Picture showing the create topic screen in AWS console

Click to Enlarge

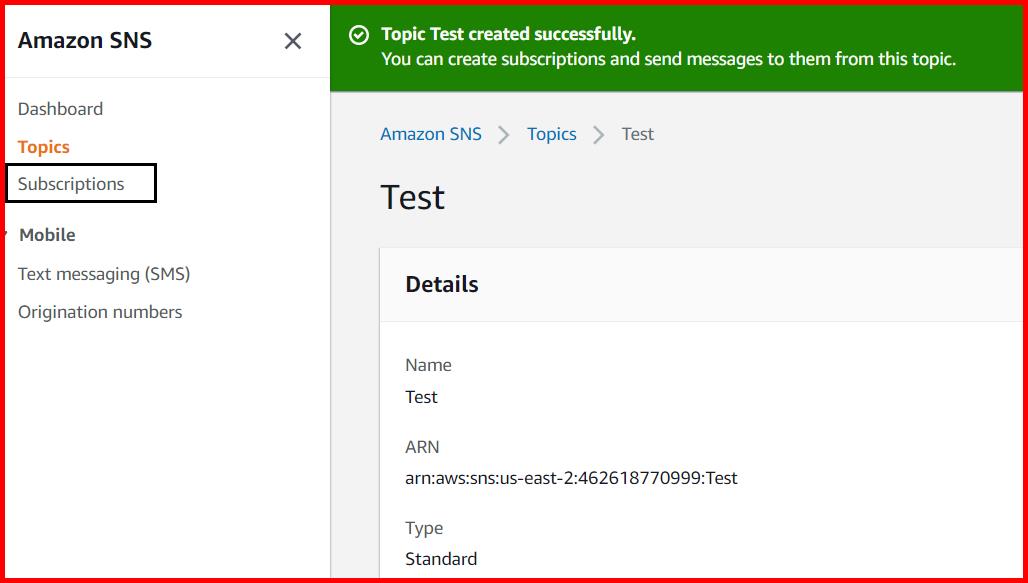

Scroll to the bottom and click on the Create topic button. The topic is created.

Picture showing the confirmation message when the topic is created

Click to Enlarge

Create A Subscription

Once the topic is created, click on the Subscriptions link (See the above image). The subscription screen will appear. On the subscriptions screen, click on the Create subscription button.

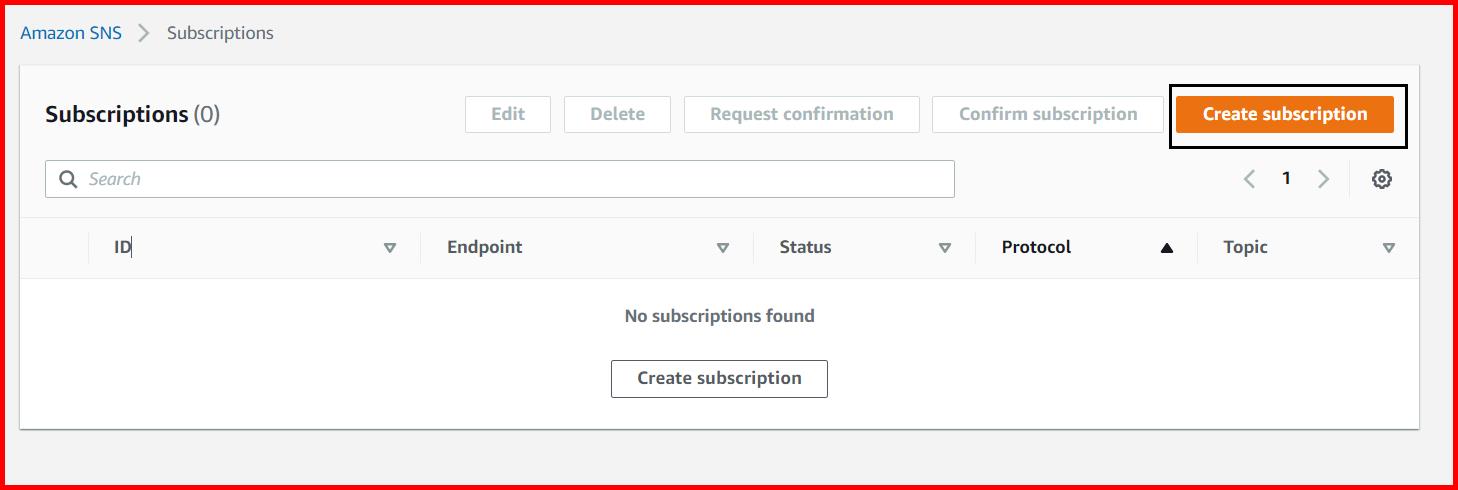

Picture showing the Create Subscription button for creating the new subscription

Click to Enlarge

In the create subscription screen, enter the following information: -

Select the topic
Set protocol as Email
Enter email id in Endpoint

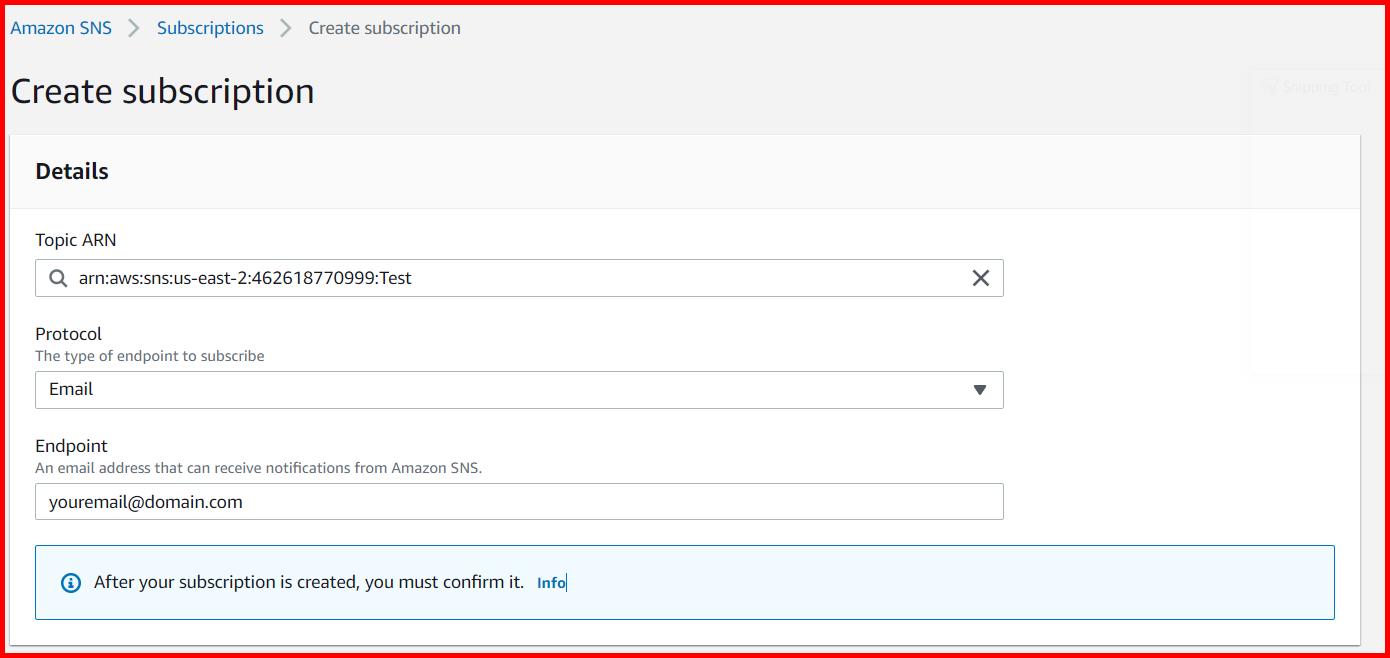

Picture showing the Create Subscription Screen in AWS console

Click to Enlarge

Scroll down to the bottom and click on the Create subscription button. The subscription is created.

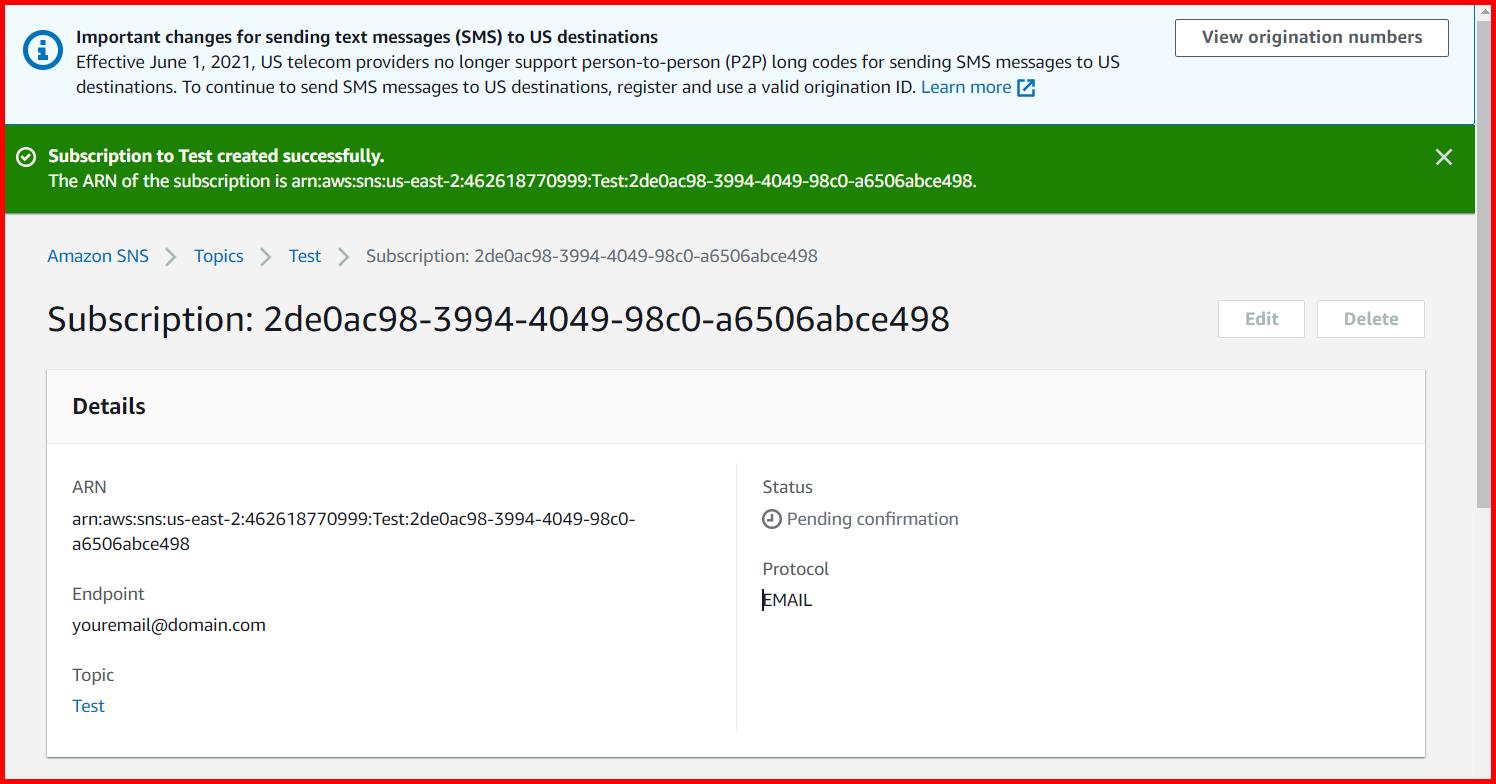

Picture showing the confirmation message when the subscription is created

Click to Enlarge

Confirm The Email

Once the subscription is created, the status of your subscription is Pending confirmation.

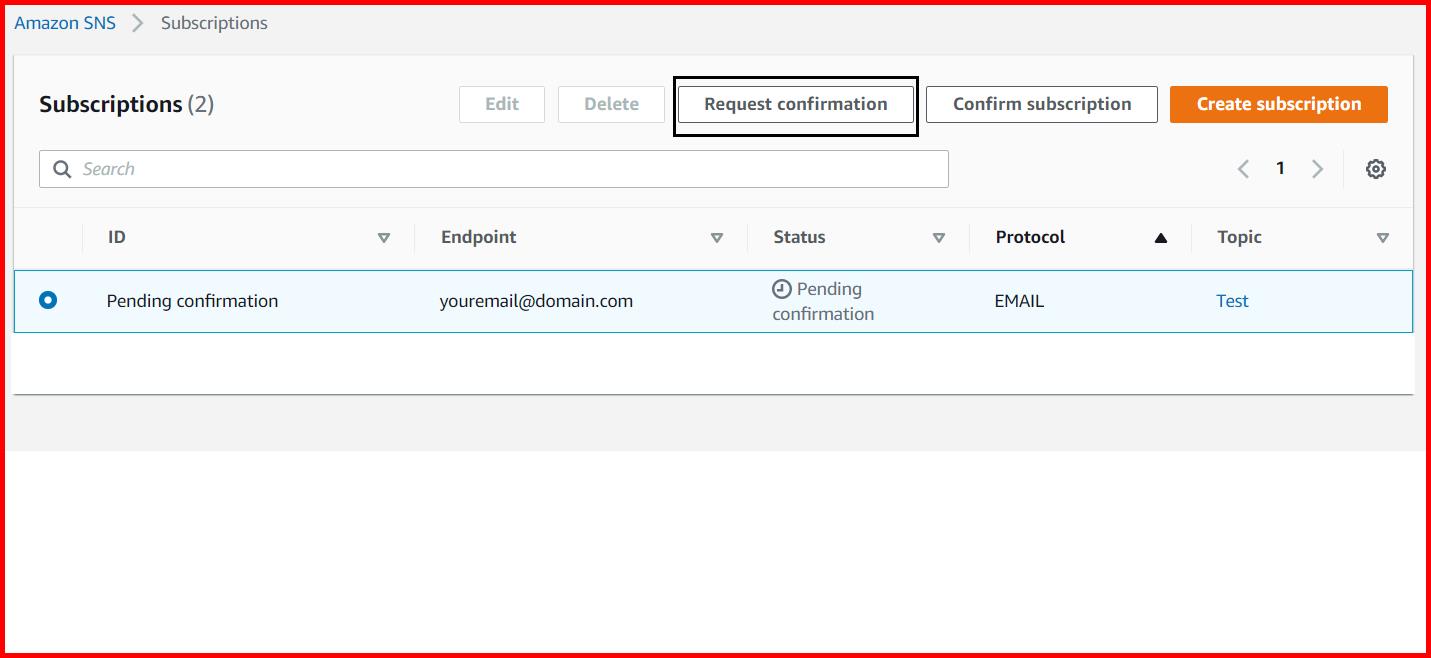

Picture showing the status of the subscription as Pending confirmation

Click to Enlarge

To confirm the subscription, check your email. In the email, click on the Confirm Subscription link in the email.

Picture showing a link in an email to confirm the subscription

Click to Enlarge

A window will open to confirm that the subscription is confirmed.

Picture showing the confirmation message when user clicks on the confirm subscription

Click to Enlarge

Now, the status of your subscription is Confirmed.

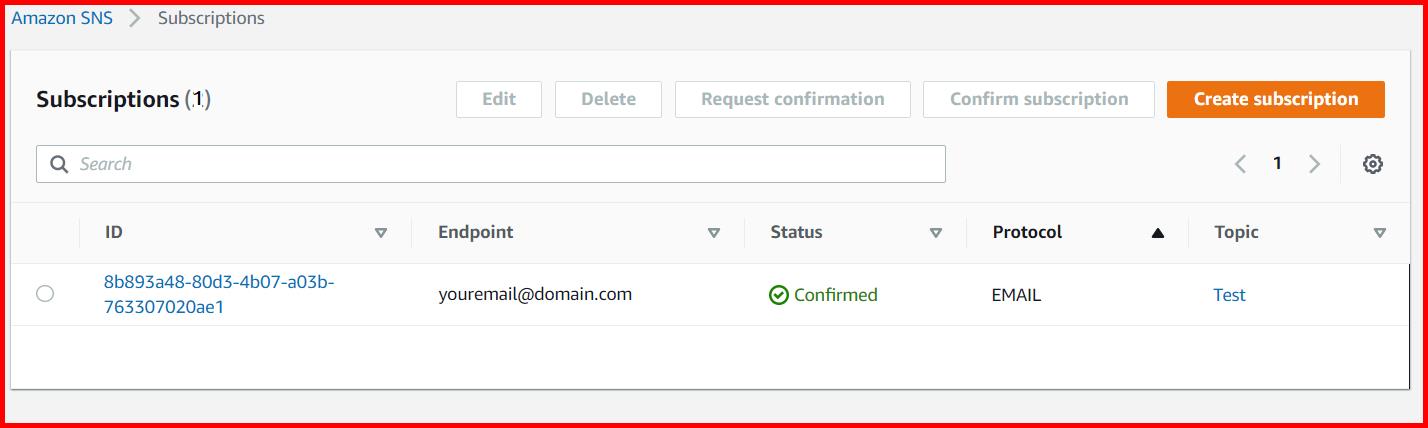

Picture showing the status of the subscription as confirmed

Click to Enlarge

Verify The Credentials

Once the subscription is confirmed, you need to verify the email using Amazon Simple Email Service. You can follow this link to verify the email address.

Publish Message

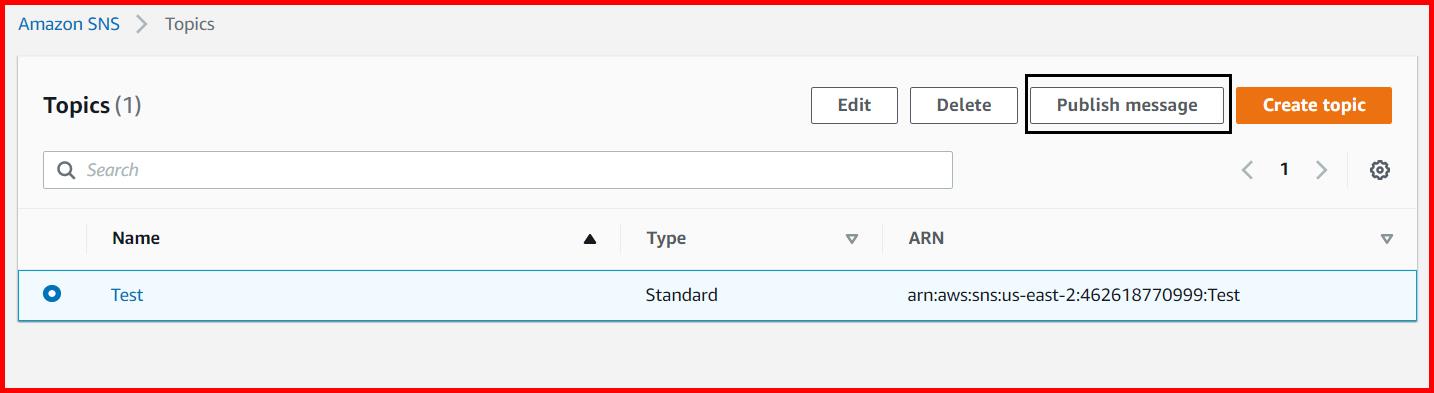

To publish the message, select the topic and click on the Publish message button.

Click to Enlarge

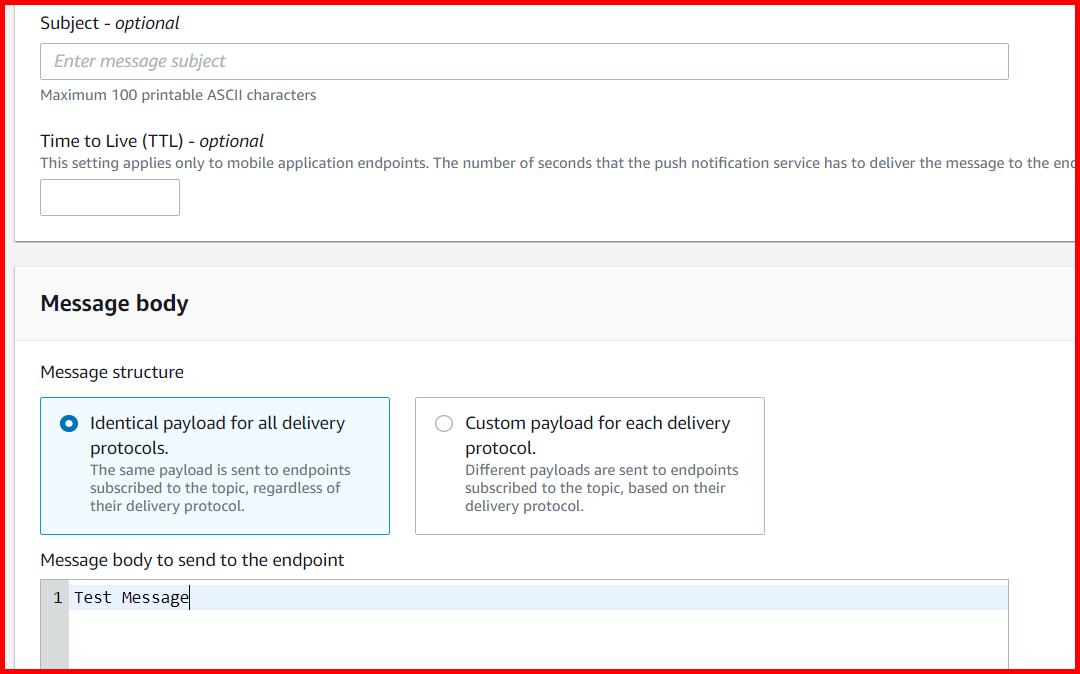

In the publish message, enter the message, and click on the Publish message button at the bottom of the screen.

Picture showing specifying the message body

Click to Enlarge

You will receive an email for the message.

Picture showing the mail received when user publishes the message

Click to Enlarge
