Use Different Versions Of Lambda Function In AWS API Gateway

In this article, we will use different versions of the lambda functions in AWS API Gateway.

Create A Lambda Function

The first step is to create a Lambda function.

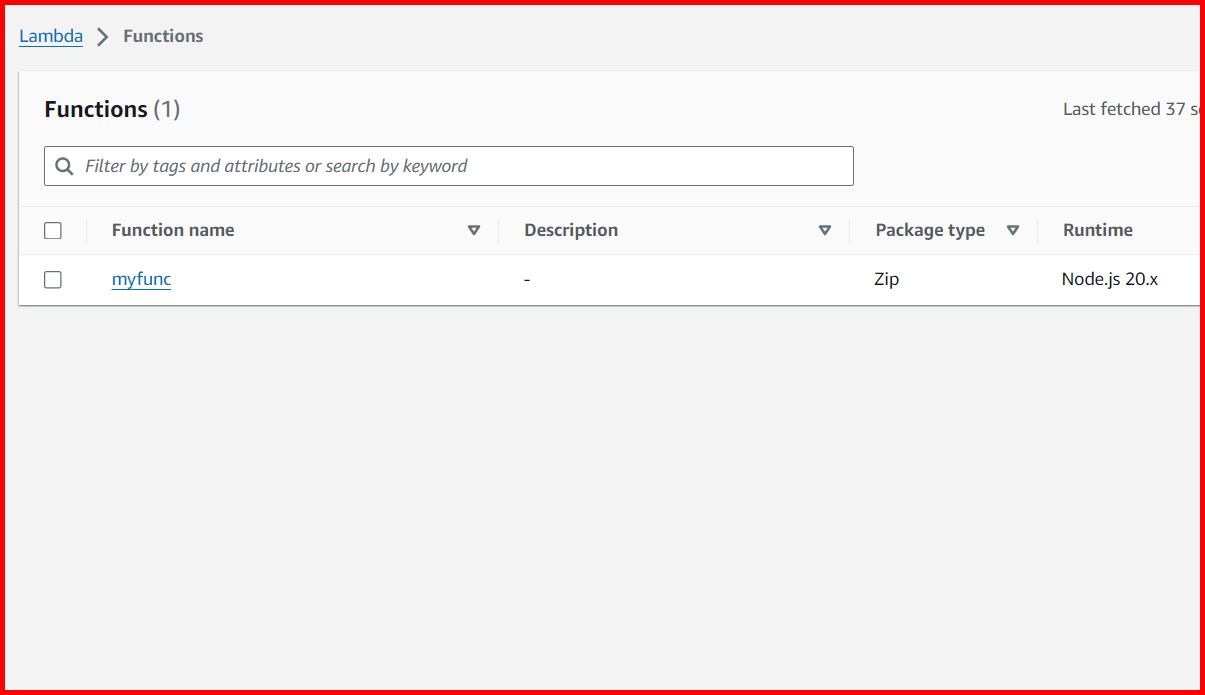

Picture showing the lambda function created in AWS console

Modify The Lambda Function And Deploy

The next step is to modify the code in the Lambda function and deploy the changes.

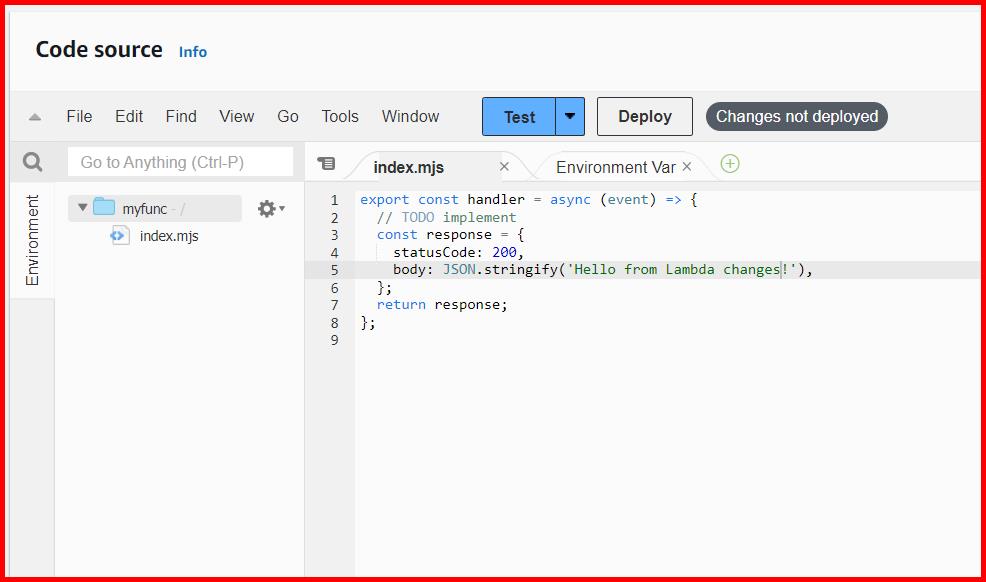

Picture showing the code in the lambda function

Publish A New Version

Publish a new version of the Lambda function.

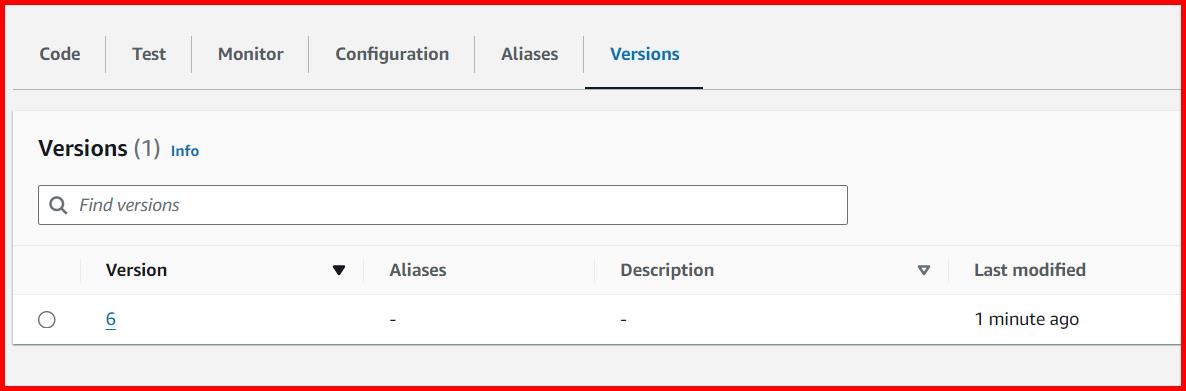

Picture showing the new version of lambda function published

Create An API Gateway

The first step is to create an API gateway. Inside the API gateway, create a GET resource that invokes the Lambda function.

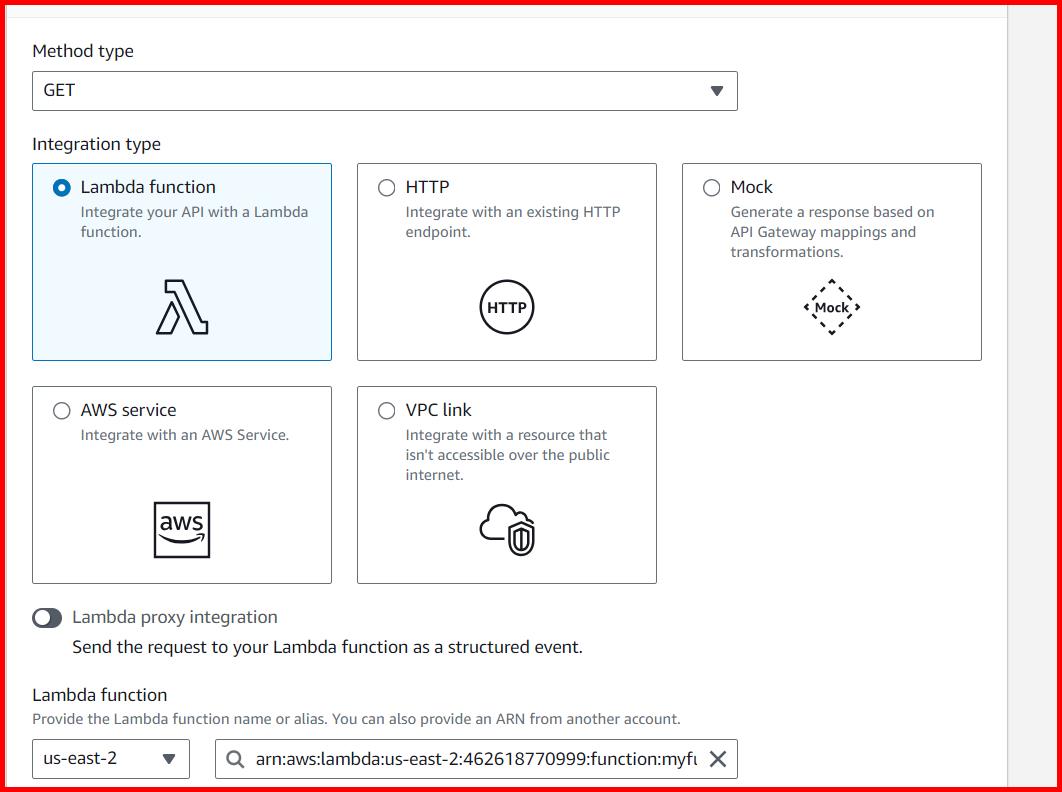

Picture showing selecting the integration type as lambda in the API gateway

Deploy The API

Deploy the API and check the output.

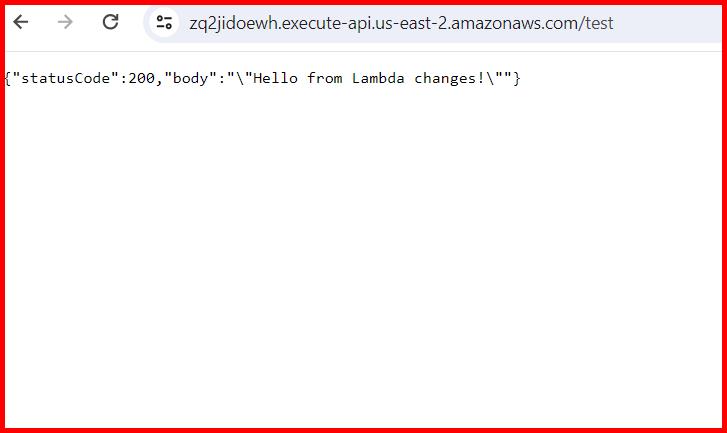

Picture showing the output of API gateway

Modify The Lambda Code And Publish A New Version

The next step is to modify the code.

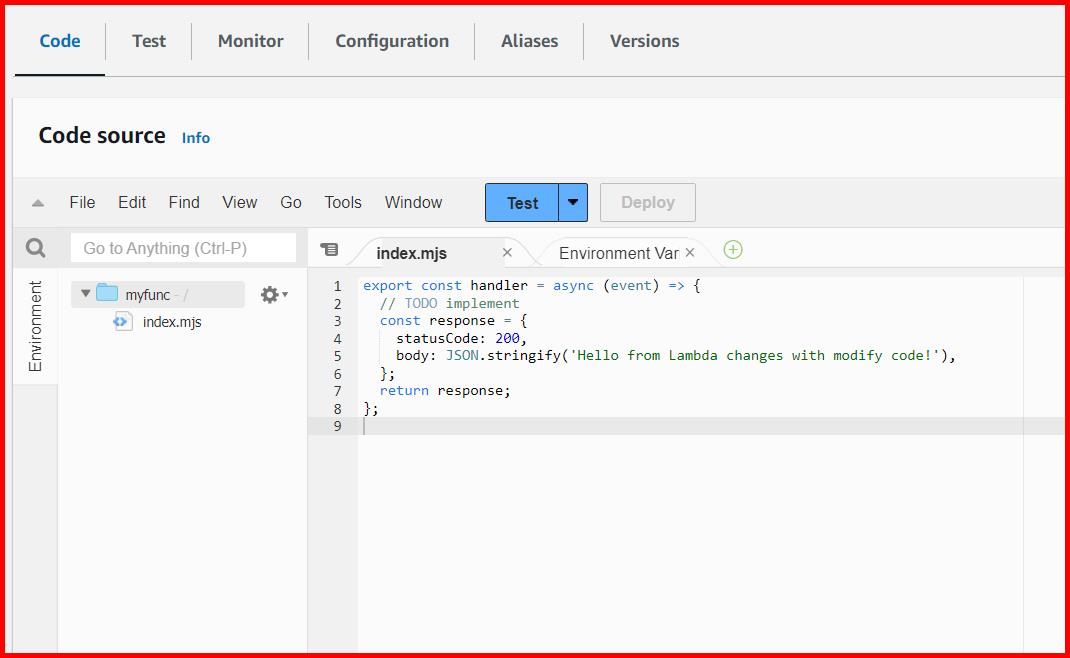

Picture showing modifying the lambda function code

Deploy the code and publish a new version.

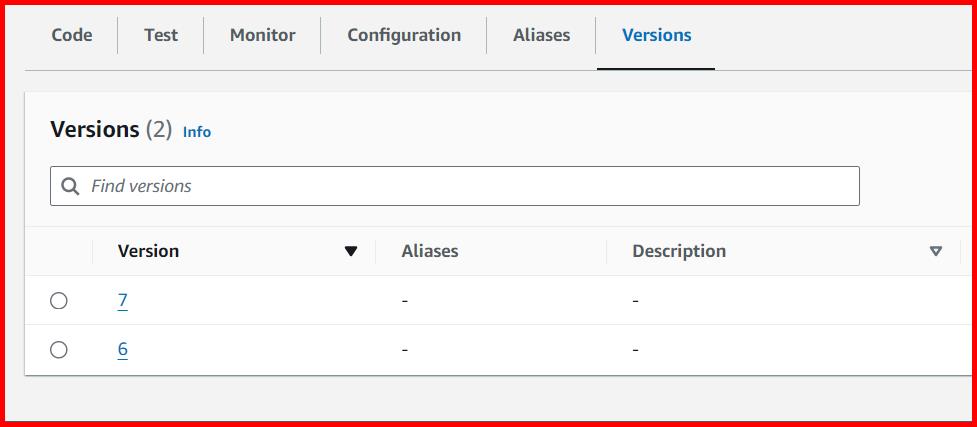

Picture showing publishing the new version of lambda function code

Modify The API Gateway

Go to the Get request of the API Gateway.

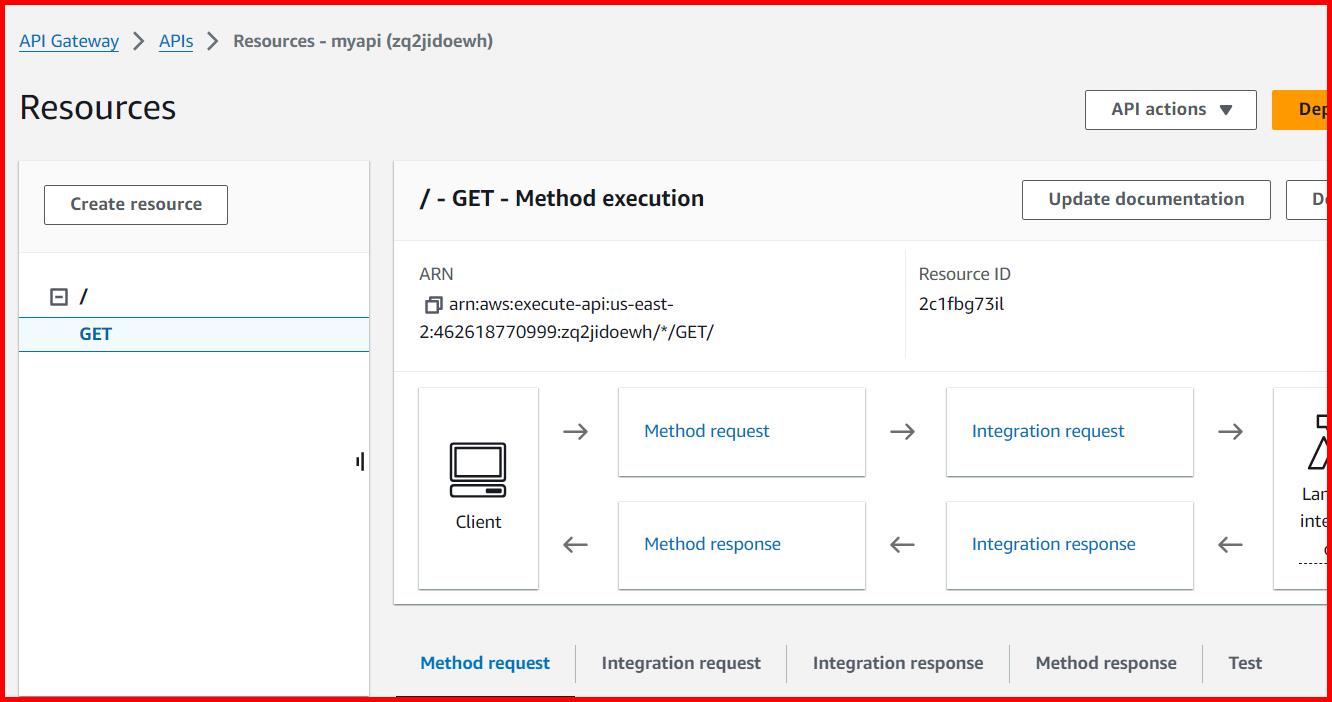

Picture showing the get request in API gateway

Click on the Integration request. A screen will appear to modify the Lambda function. Specify the function version by appending :[version] after the Lambda function.

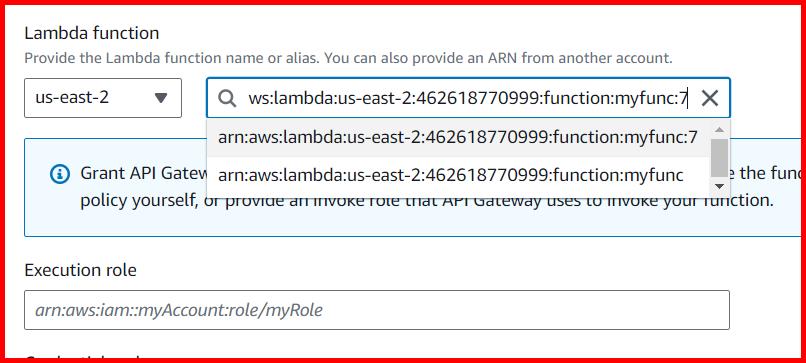

Picture showing specifying the lambda version in API gateway

Click on the Save button. Deploy the API again and see the output.

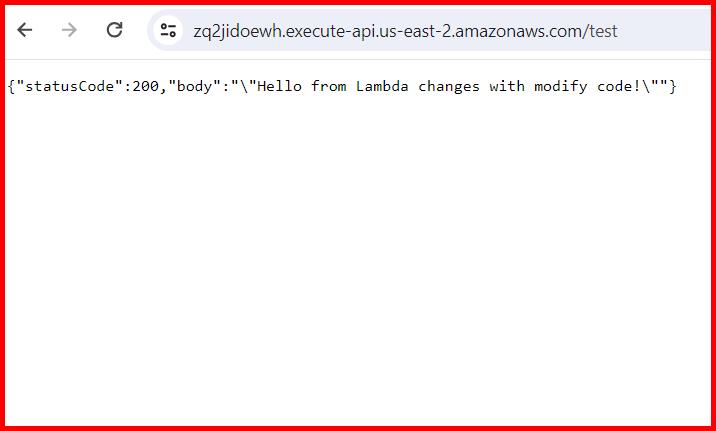

Picture showing the output of updated lambda function

You will see the updated output.

Posted By -	Karan Gupta

Posted On -	Monday, January 29, 2024
