Create The Autoscaling Group In AWS

In this article, we will create an autoscaling group in AWS.

Purpose

The autoscaling group increases or decreases the EC2 instance based on the increased or decreased load.

Auto Scaling Group Life Cycle

During Scaling Out, the life cycle of the autoscaling group is: -

Picture showing the scale out event in Autoscaling life cycle

Click to Enlarge

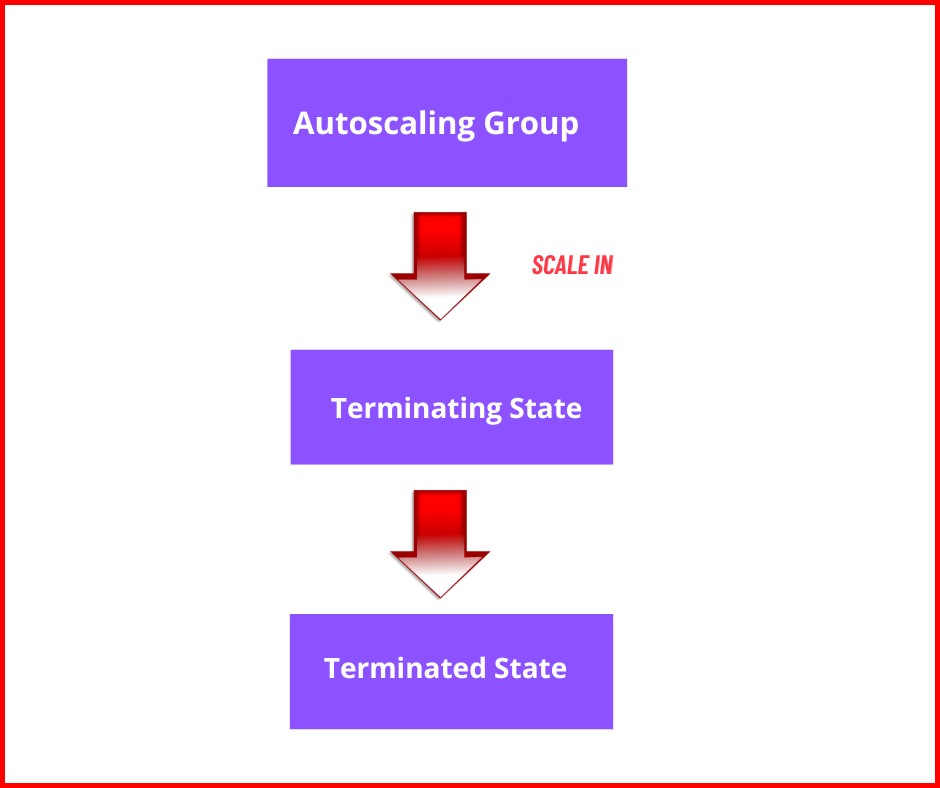

During Scaling In, the life cycle of the autoscaling group is: -

Picture showing the scale in event in Autoscaling life cycle

Click to Enlarge

Steps Of Creating The Autoscaling Group

We will work on the following steps for creating the autoscaling group: -

Launch an EC2 instance
Create the AMI
Create the launch configuration
Create the autoscaling group
Checking the auto scaling group

Let us work on each step.

Launch An EC2 Instance

First, launch an EC2 instance. You can follow this link to launch an EC2 instance.

Create The AMI

Second step is to create an AMI. You can follow this link to create an AMI.

Create The Launch Configuration

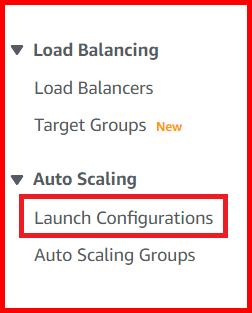

To create a launch configuration, click on the Launch Configurations menu.

Picture showing the Launch Configurations menu option

Click to Enlarge

A screen appears with the list of launch configurations. Click on the Create launch configuration button.

Picture showing the list screen of the launch configuration

Click to Enlarge

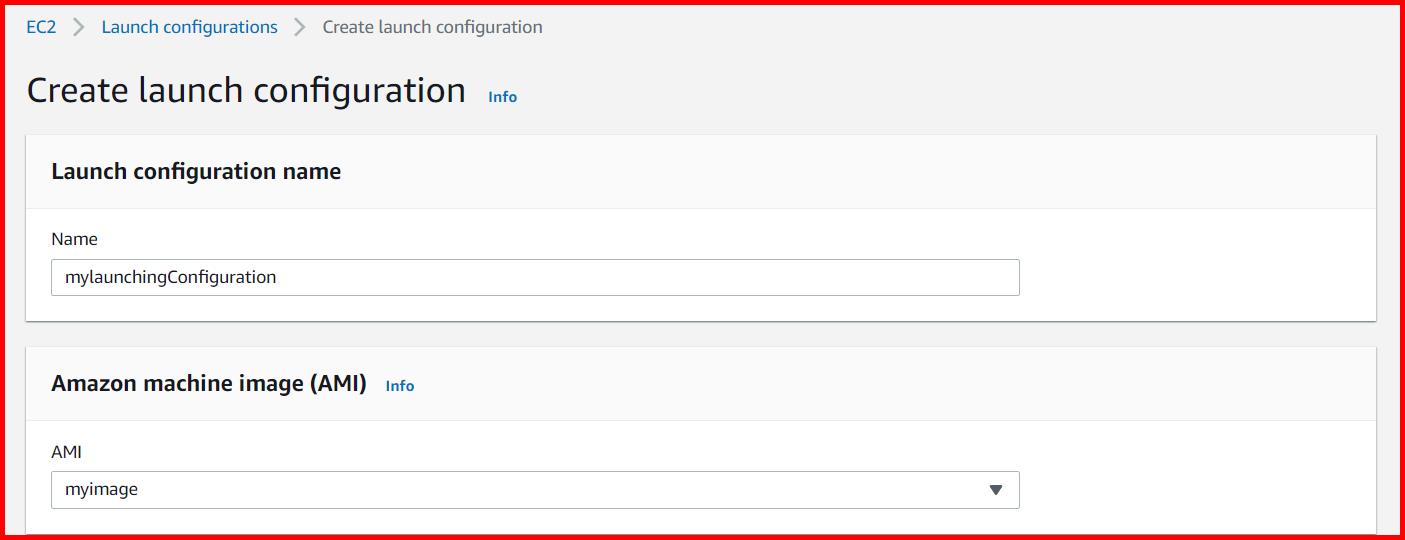

The create launch configuration screen will appear. Enter the Name and select the AMI.

Picture showing the create launch configuration screen for entering the name and AMI

Click to Enlarge

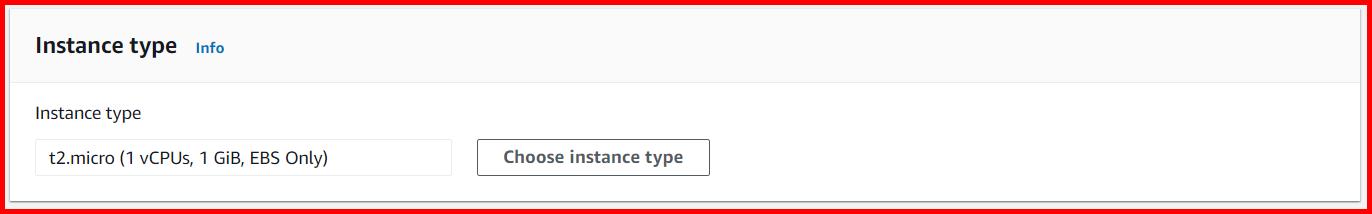

Scroll down to select the instance.

Picture showing the create launch configuration screen for selecting the instance type

Click to Enlarge

Please note that the instance type should be either the same as that of AMI or with the same architecture.

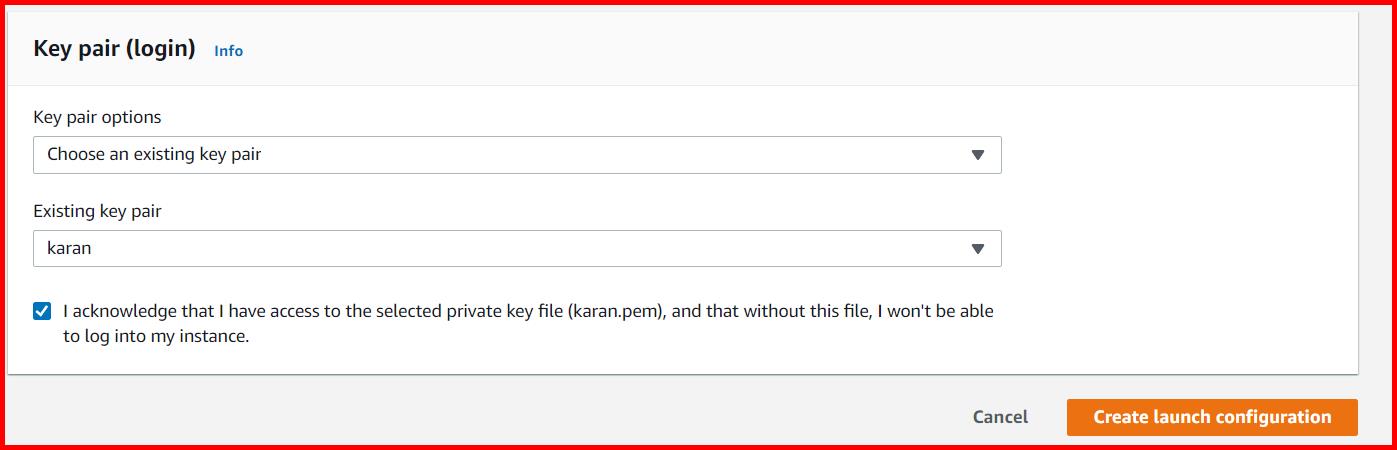

Scroll down to select the key pair and click on the Create launch configuration button.

Picture showing the Create launch configuration button for creating the new launch configuration

Click to Enlarge

The launch configuration is created.

Create The Autoscaling Group

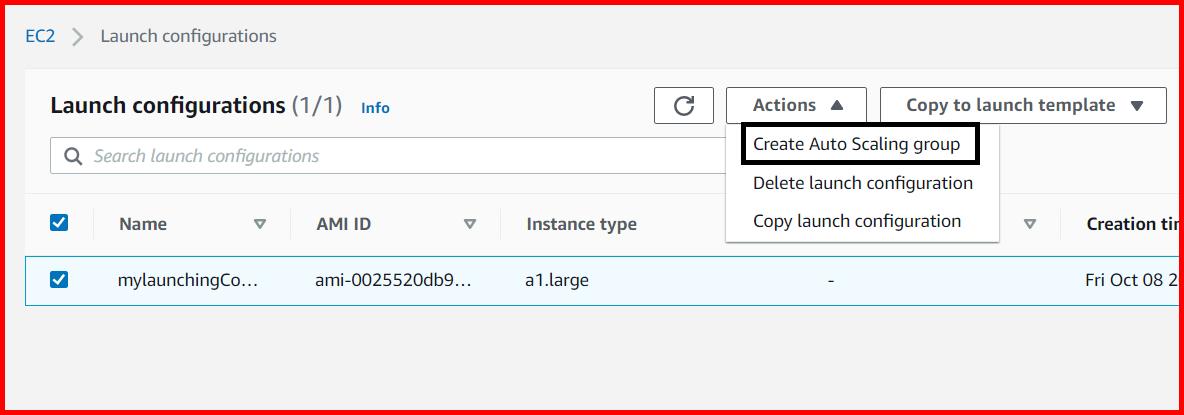

To create the autoscaling group, select the launch configuration and click on the Actions → Create Auto Scaling group.

Picture showing the Create Auto Scaling group menu option

Click to Enlarge

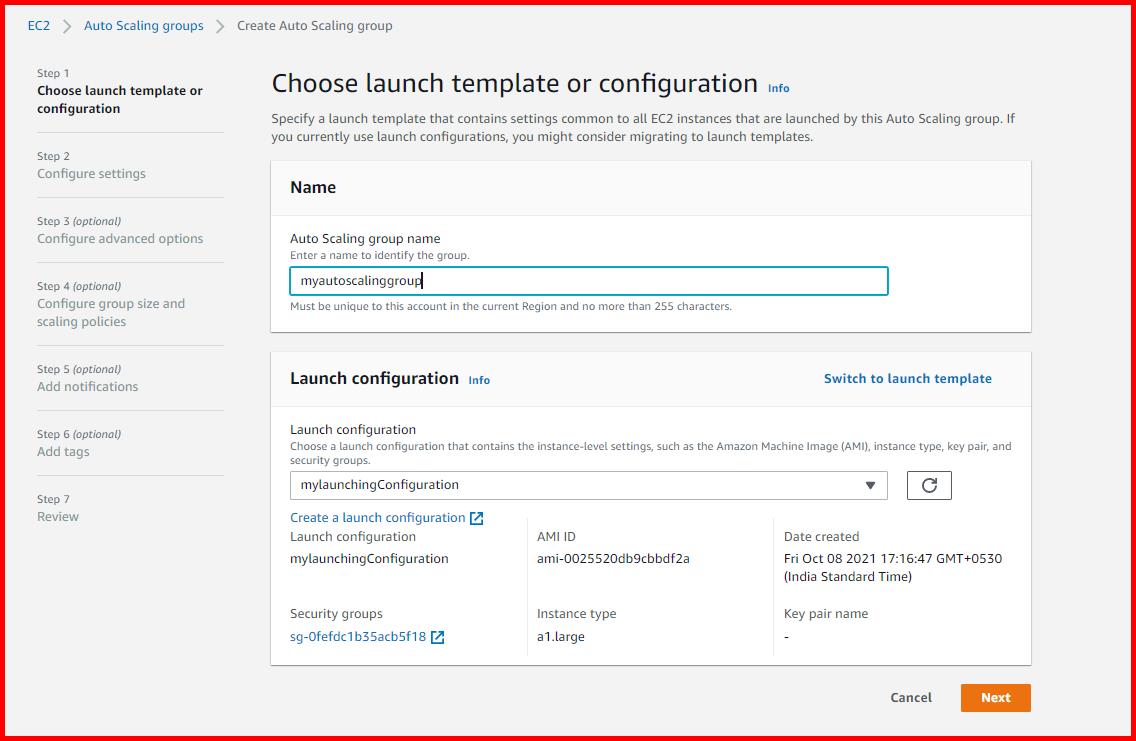

In the first step, enter the Auto Scaling group name and Launch configuration.

Picture showing the Create Auto Scaling group screen for entering the group name and launch configuration

Click to Enlarge

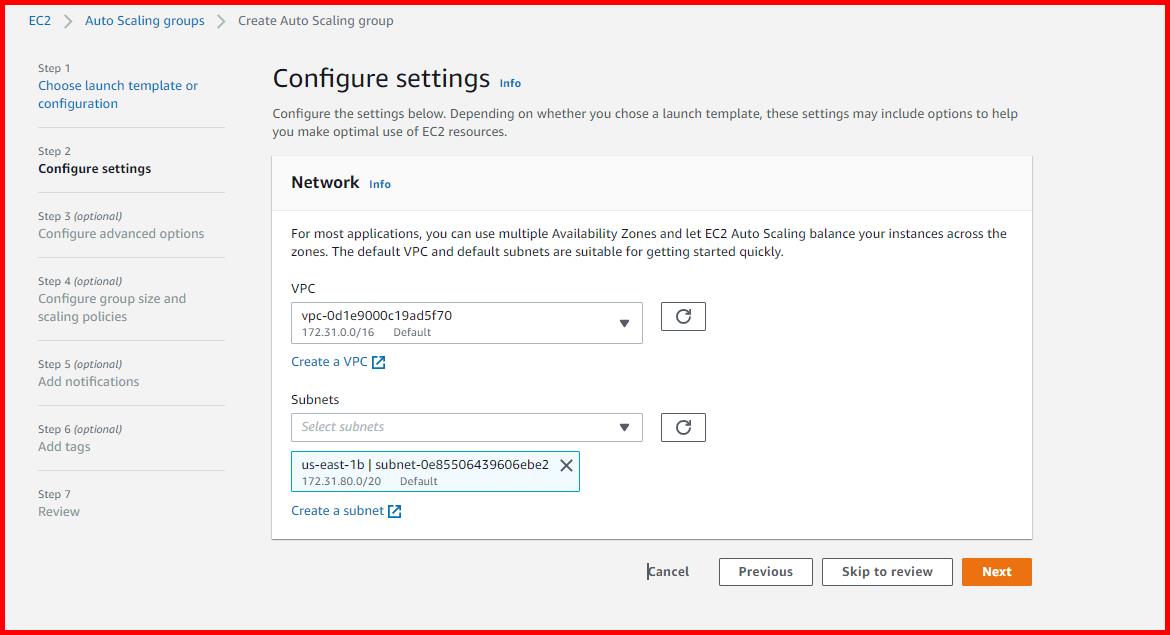

Click on the Next button. In the next screen, select the VPC and the Subnets.

Picture showing the configure settings section of the Create Auto Scaling group screen

Click to Enlarge

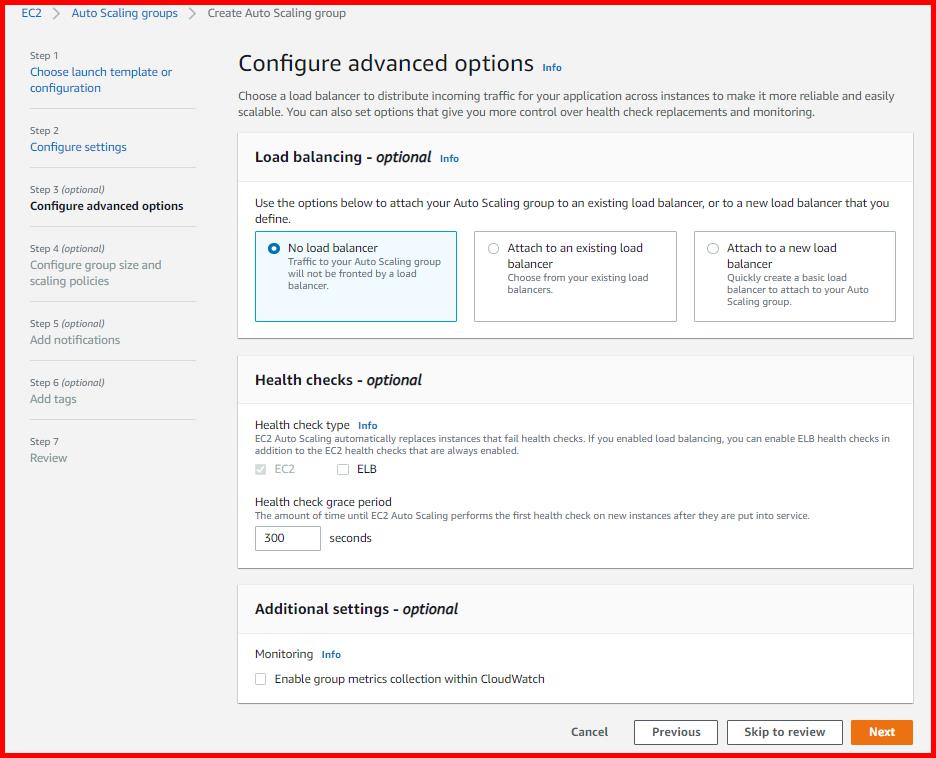

Click on the Next button. In the next screen, select the advanced configuration options. For this article, I am not doing any change.

Picture showing the configure advanced options section of the Create Auto Scaling group screen

Click to Enlarge

Click on the Next button. In the next screen, you can specify the Group size.

Picture showing the configure group size and scaling policies section of the Create Auto Scaling group screen

Click to Enlarge

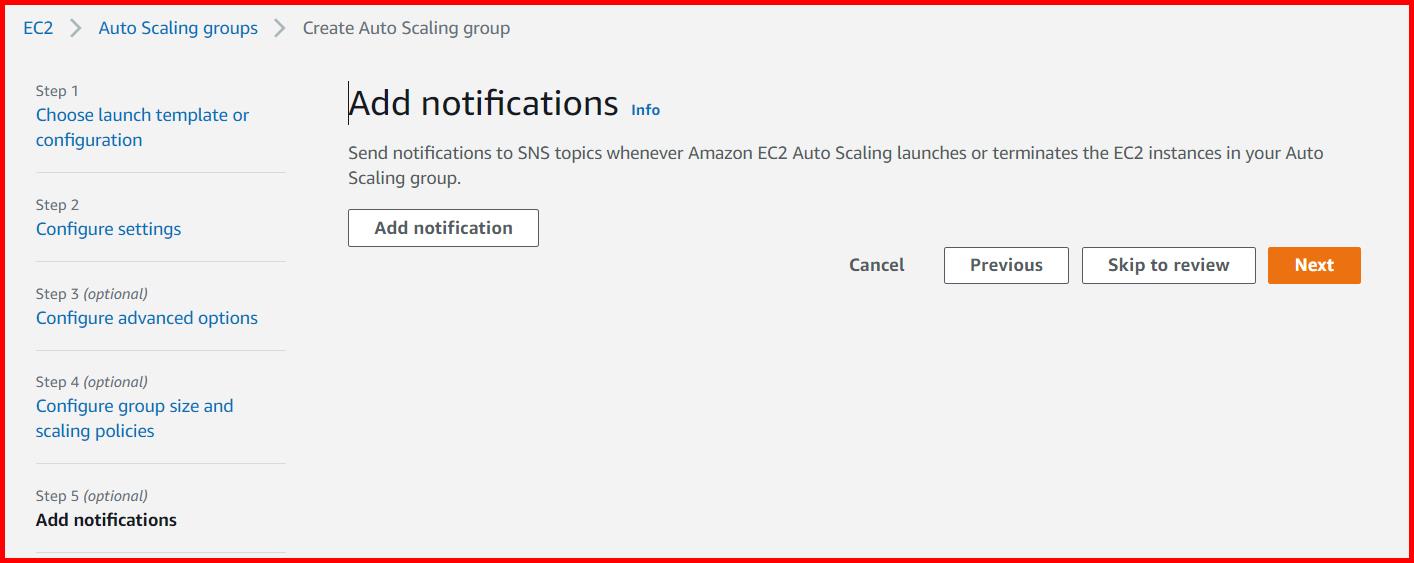

Click on the Next button. In the next screen, you can add a notification or you can skip this step.

Picture showing the Add Notifications section of the Create Auto Scaling group screen

Click to Enlarge

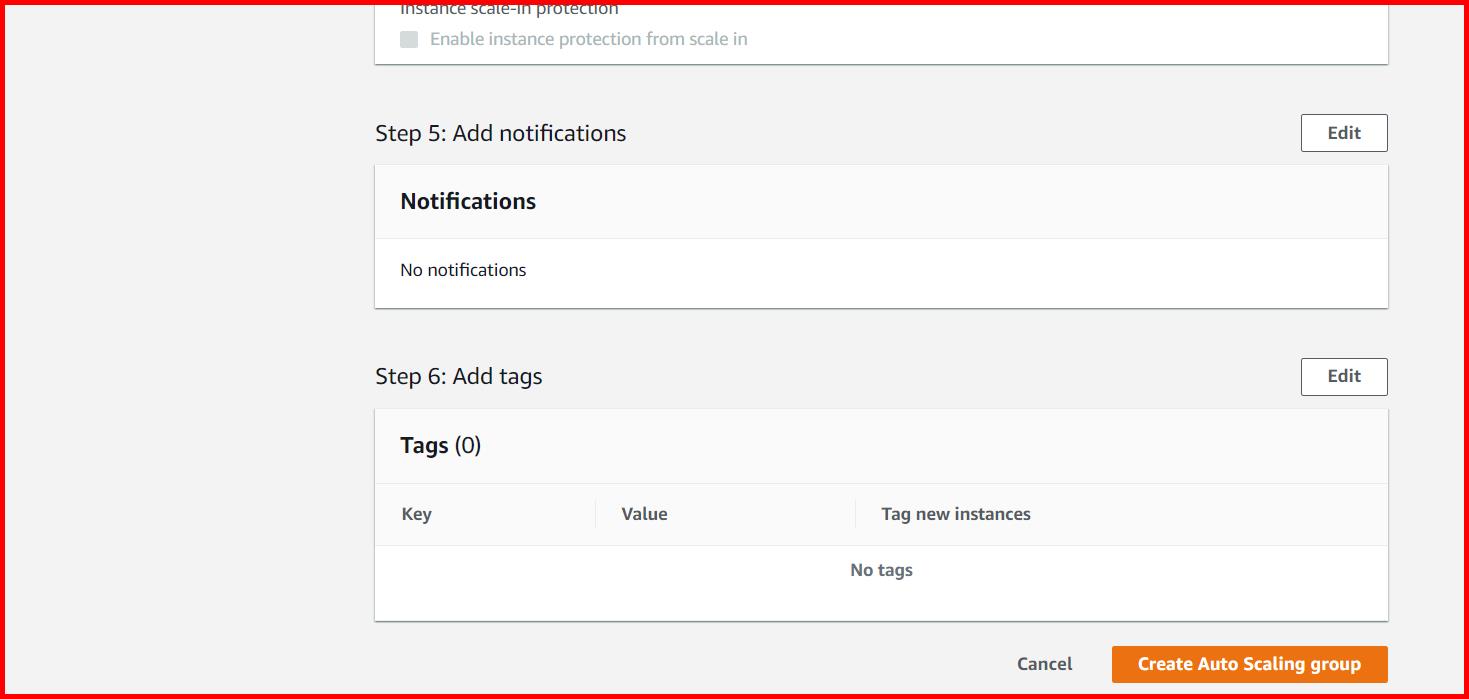

Click on the Next button. The review screen will appear. Review the information and click on the Create Auto scaling group button.

Picture showing the Create auto scaling group for creating the new autoscaling group

Click to Enlarge

Checking The Auto Scaling Group

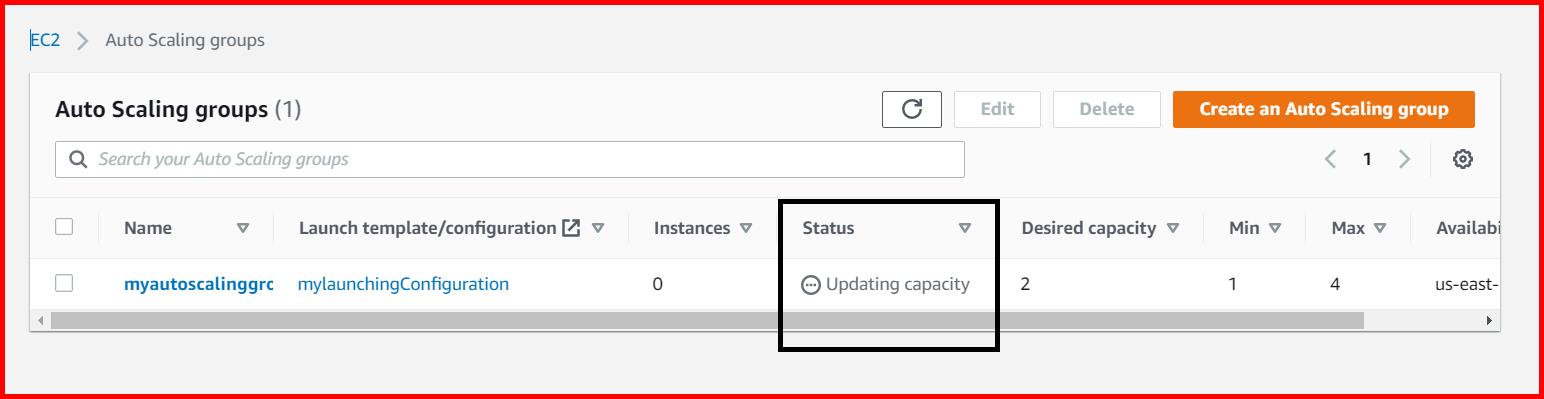

Once the auto scaling group is created, you can see the status as Updating Capacity

Picture showing the status of the autoscaling group as updating capacity

Click to Enlarge

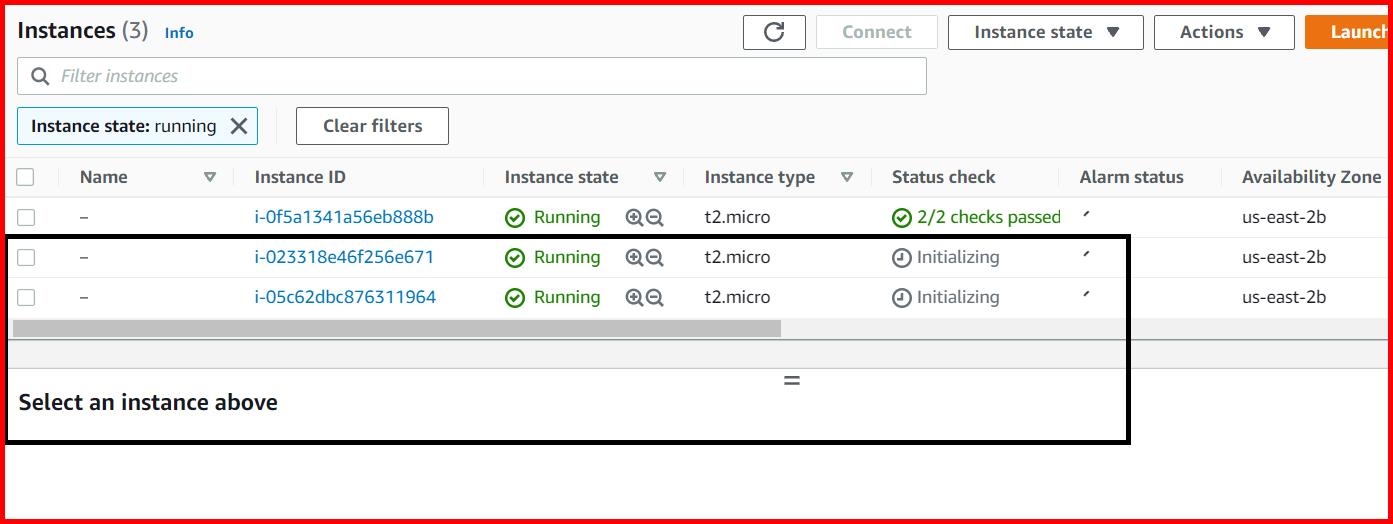

Once the capacity is updated, you can see 2 EC2 instances created.

Picture showing the EC2 instances created based on the desired capacity of the autoscaling group

Click to Enlarge

Can We Have EC2 In Autoscaling Group From The Different Availability Zones?

Yes.

Can We Have EC2 In Autoscaling Group From The Different Regions?

No.

Launch Template Or Launch Configuration

Launch configuration is the old feature whereas the launch template is the new one. The launch template provides way more features than the launch configuration: -

The launch template is editable
Launch template provides versioning
Launch template supports multiple instance types
Launch template also supports on-demand as we as spot instance
Launch template supports placement groups
Launch template support dedicated host
Launch template supports EBS volume tagging
Launch template supports elastic interface
