Create A Classic Load Balancer In AWS

In this article, we will create a classic load balancer in AWS. For creating the classic load balancer, we will work on the following steps: -

Launch 2 EC2 instances with IIS installed
Add an inbound rule for port 80 to the security group
Create the classic load balancer
Test the classic load balancer

Launch 2 EC2 Instances With IIS Installed

First, launch 2 EC2 instances with IIS installed. You can check this article.

Add An Inbound Rule For Port 80 To The Security Group

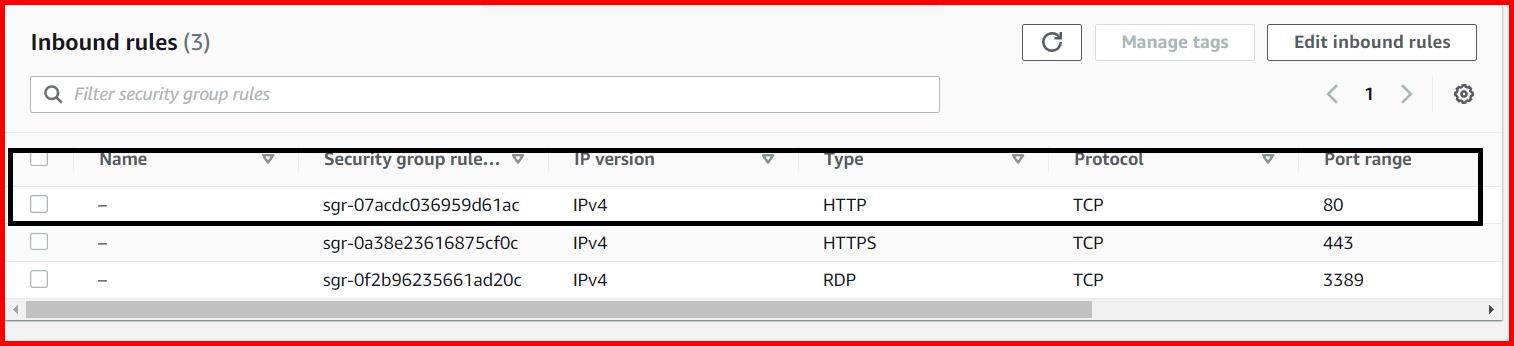

Second step is to add an inbound rule for port 80.

Picture showing adding an inbound rule for port 80 in security group

Click to Enlarge

The purpose is to access the IIS homepage over the internet using the HTTP protocol. For HTTPS protocol, you can check the following links: -

Create The Classic Load Balancer

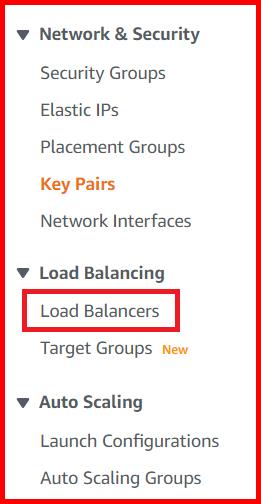

To create the classic load balancer, click on the Load Balancers menu on the left-hand side in the EC2 dashboard.

Picture showing the load balancers menu in AWS console

Click to Enlarge

The load balancer screen will appear. Click on the button Create Load Balancer

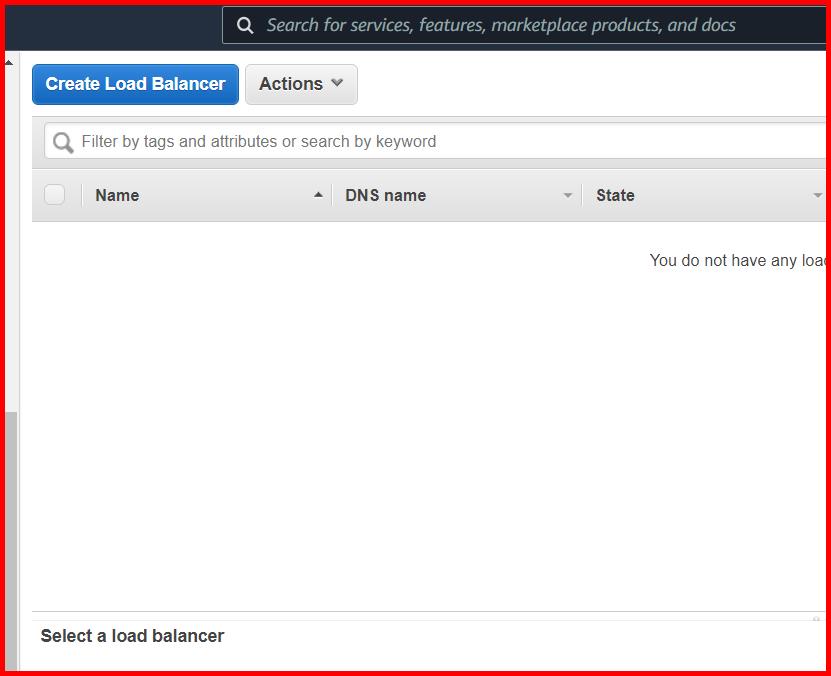

Picture showing the Create load balancer button for creating the load balancer

Click to Enlarge

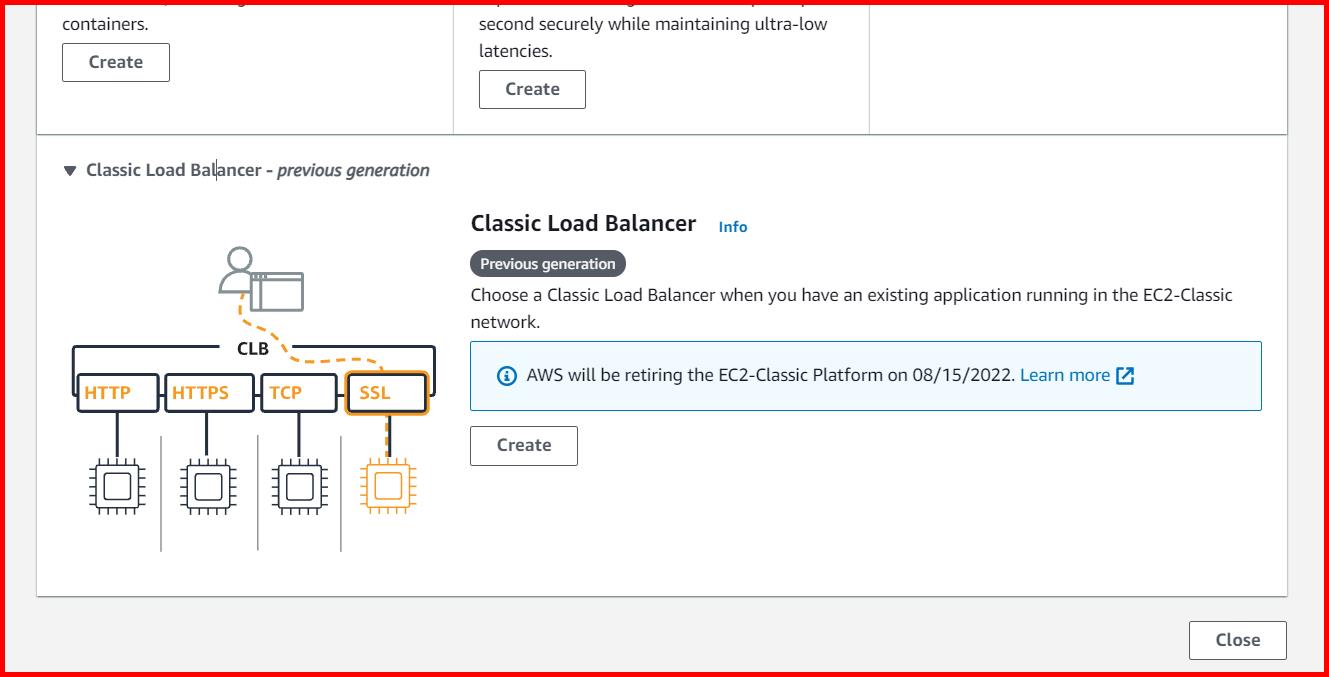

A screen appears to select the type of load balancer. Select the Classic Load Balancer.

Picture showing selecting the classic load balancer from the list of load balancers

Click to Enlarge

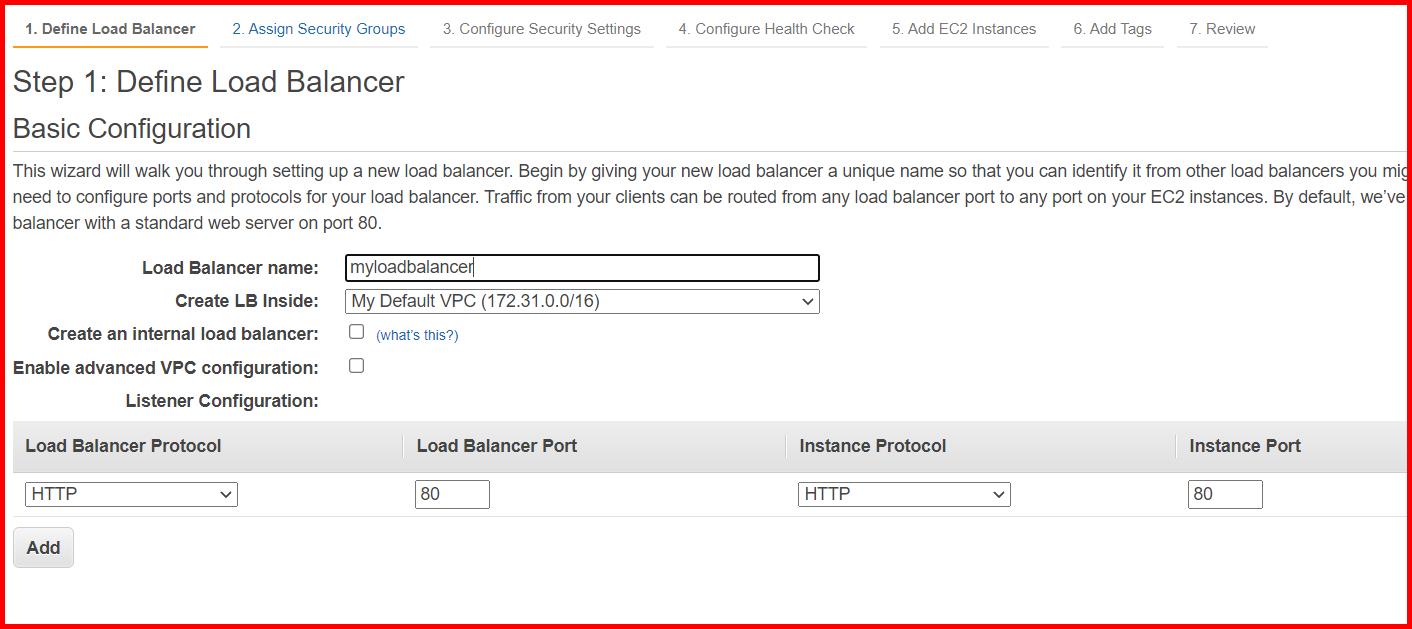

A screen appears to enter the Load Balancer name and the Load Balancer Protocol.

Picture showing the screen for adding the load balancer name

Click to Enlarge

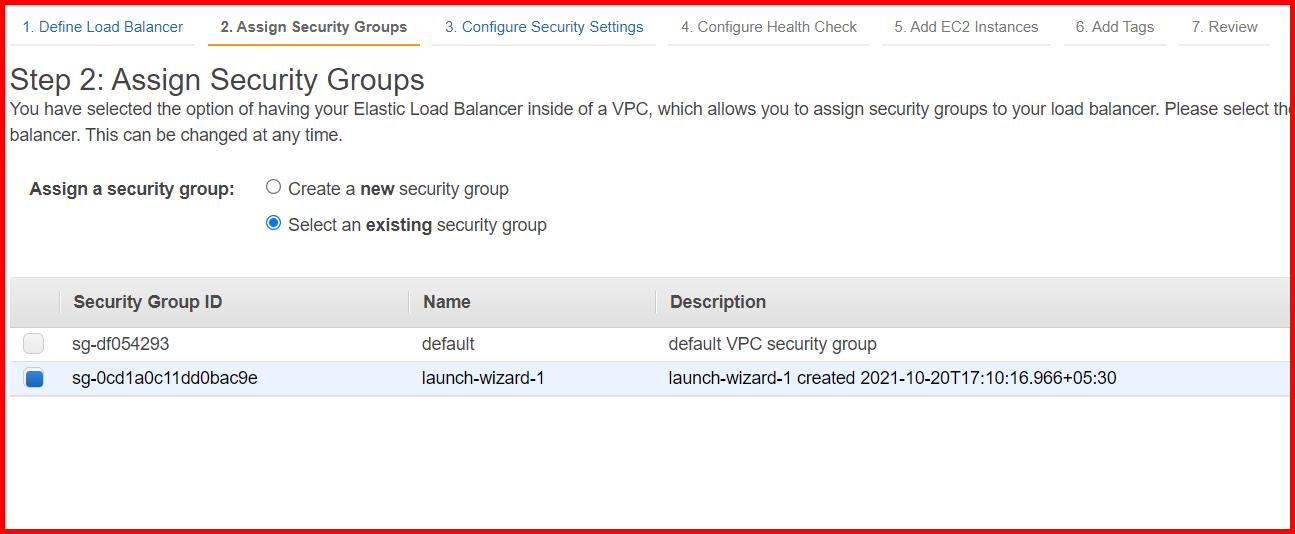

Click on the Next: Assign Security Groups button. In the next screen, select the security group.

Picture showing the screen for assigning security group to the load balancer

Click to Enlarge

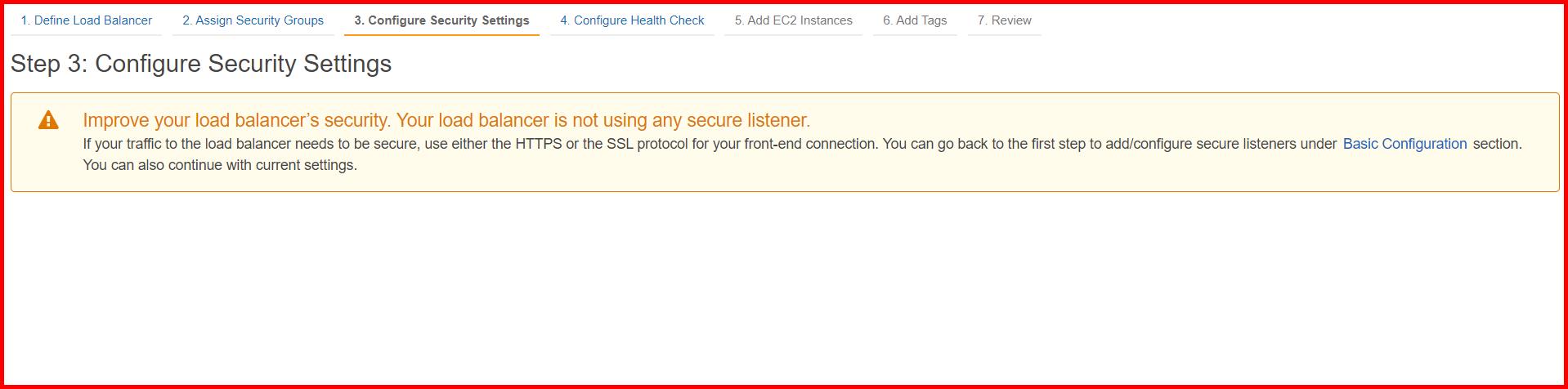

Click on the Next: Configure Security Settings button. In the Configure Security Settings screens, click on the Next: Configure Health Check button.

Picture showing the configure security setting screen

Click to Enlarge

In the next screen, you can specify the health check configuration.

Picture showing the screen for configuring the health check

Click to Enlarge

Click on the Next: Add EC2 Instances button. In the next screen, you can select the 2 EC2 instances.

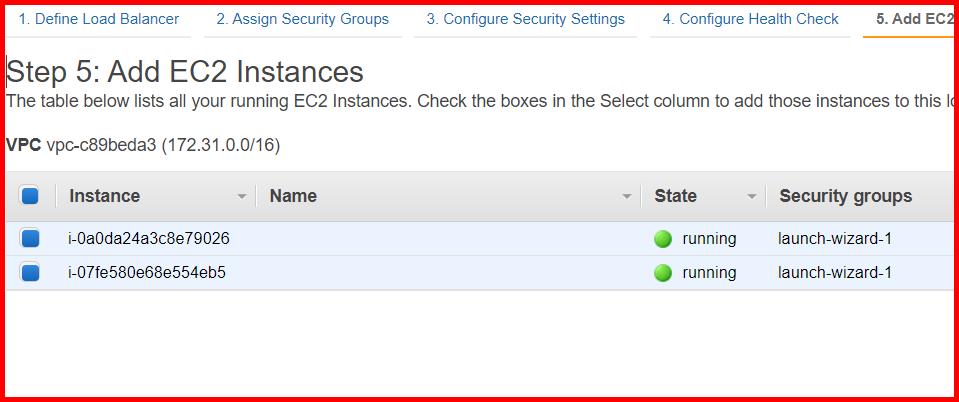

Picture showing selecting the instances for the load balancer

Click to Enlarge

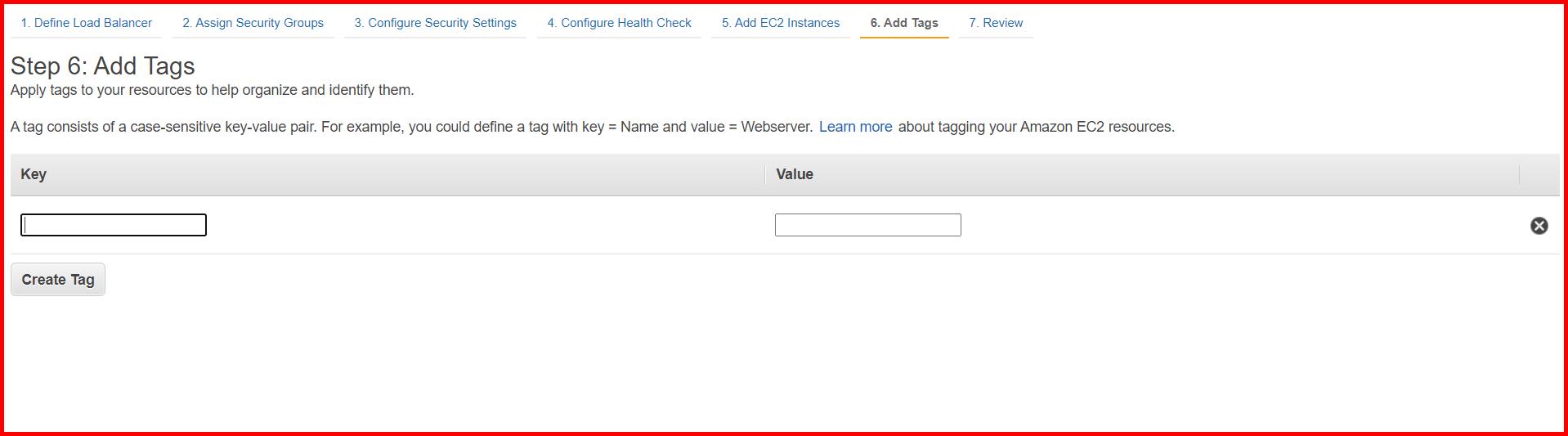

Click on the Next: Add Tags button. In the next screen, you can specify the tags. But this step is optional.

Picture showing the screen for adding tags on load balancer

Click to Enlarge

Click on the Review and Create button. In the next screen, you can review all the information you have entered in the previous steps.

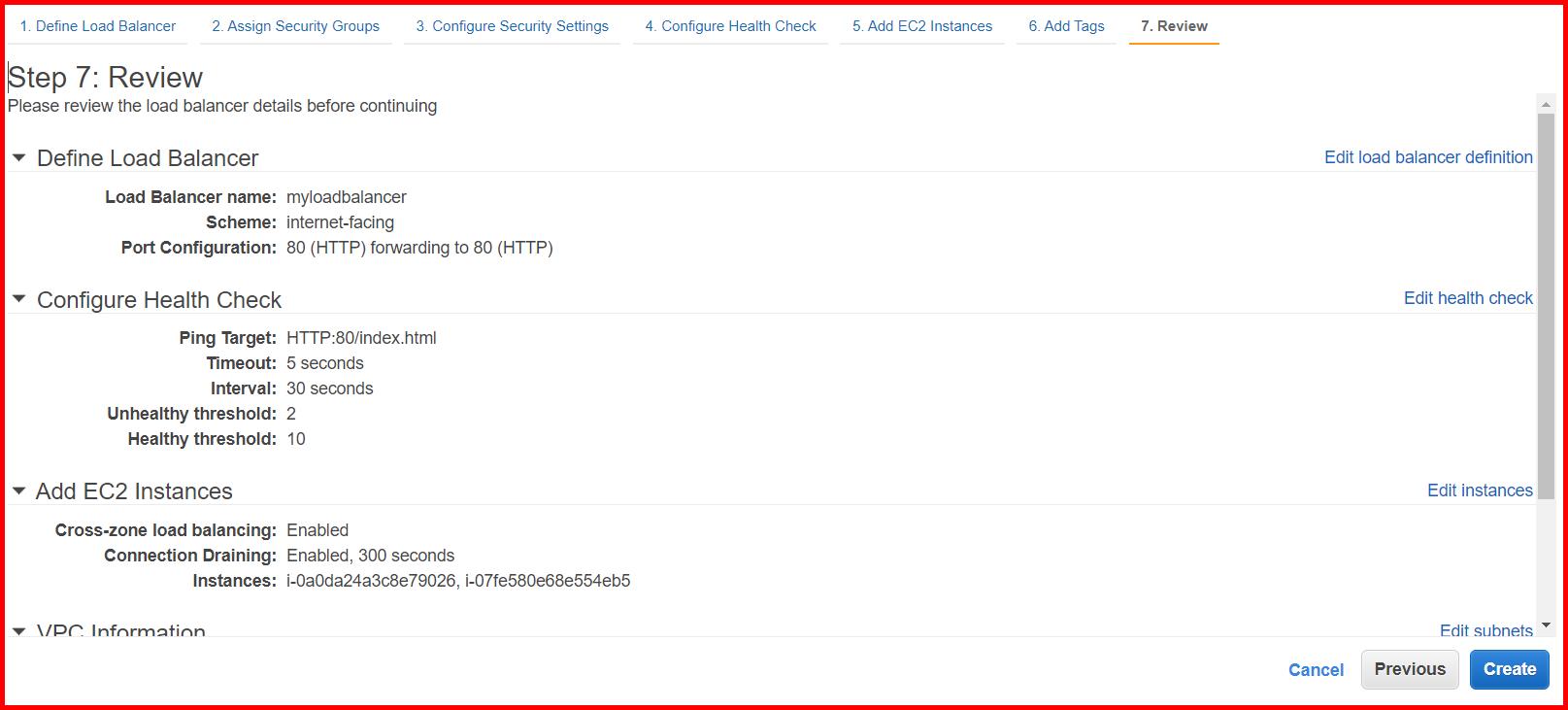

Picture showing the review screen before the creation of the load balancer

Click to Enlarge

Click on the Create button to create the load balancer.

Test The Classic Load Balancer

Before you test the classic load balancer, you should make sure that the status should be 2 of 2 instances in service.

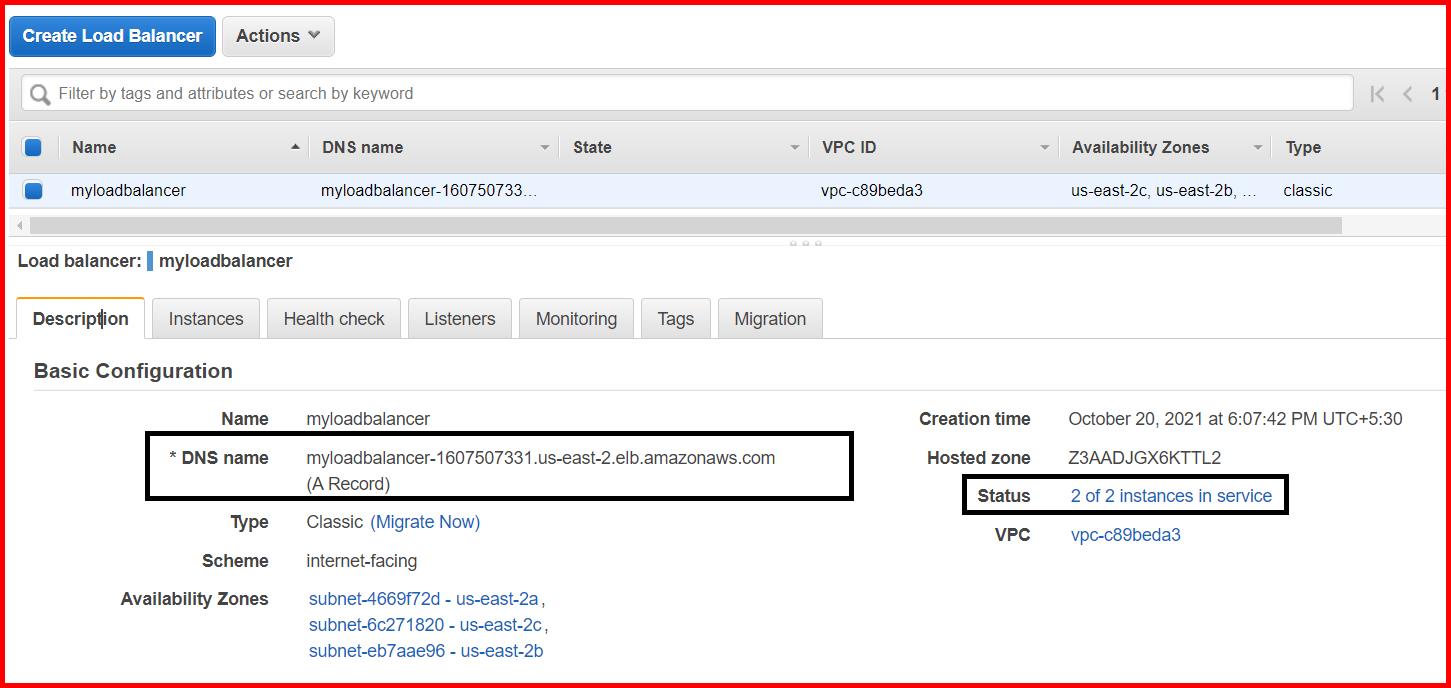

Picture showing the Description tab that specifies the DNS name and status of the load balancer

Click to Enlarge

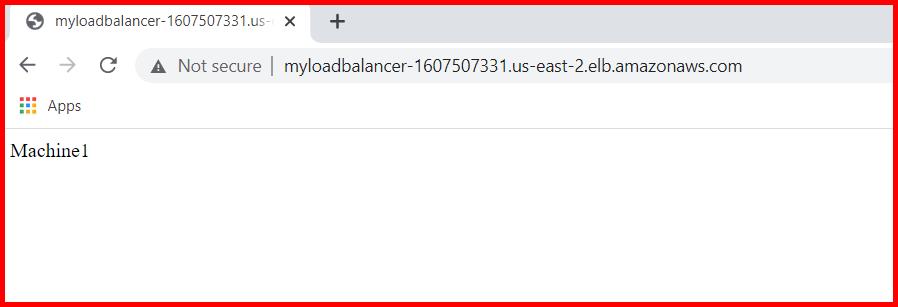

Now, you can use the DNS name to test the load balancer.

Picture showing the output of classic load balancer in AWS

Click to Enlarge
