Create A New Volume And Attach It With EC2

In this article, we will create a new volume and attach it to an EC2 instance.

Prerequisite

Before we create the volume, we will launch an EC2 instance.

Creating A New Volume

To create a new volume, click on the Volumes link.

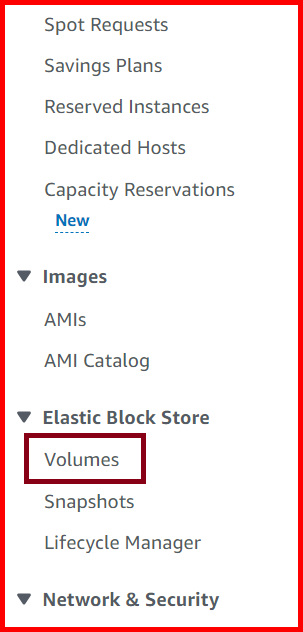

Picture showing the Volume menu option in AWS console

Click to Enlarge

A screen appears that displays the list of volumes. Click on the Create Volume button.

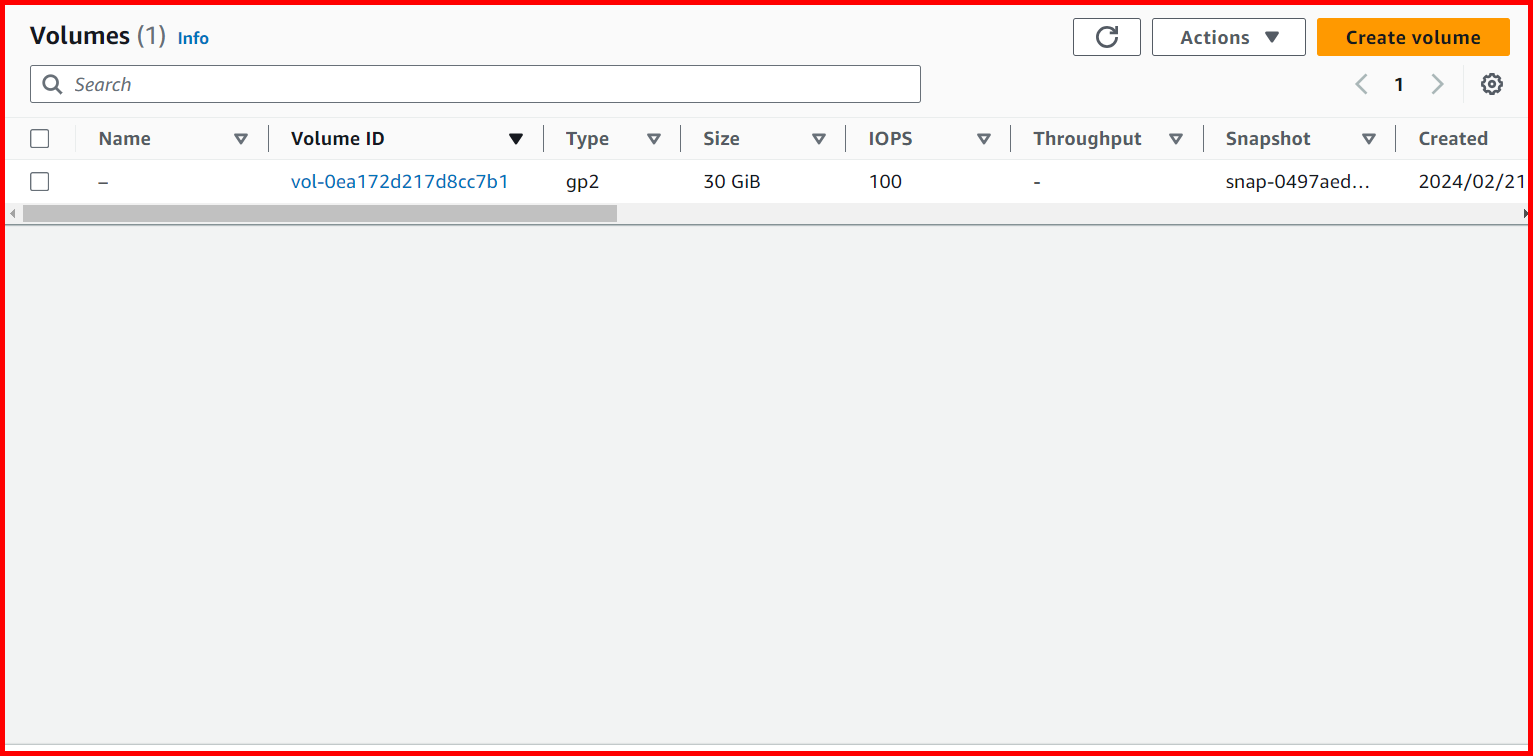

Picture showing a screen that displays the list of volumes

Click to Enlarge

A screen will appear to enter the volume details.

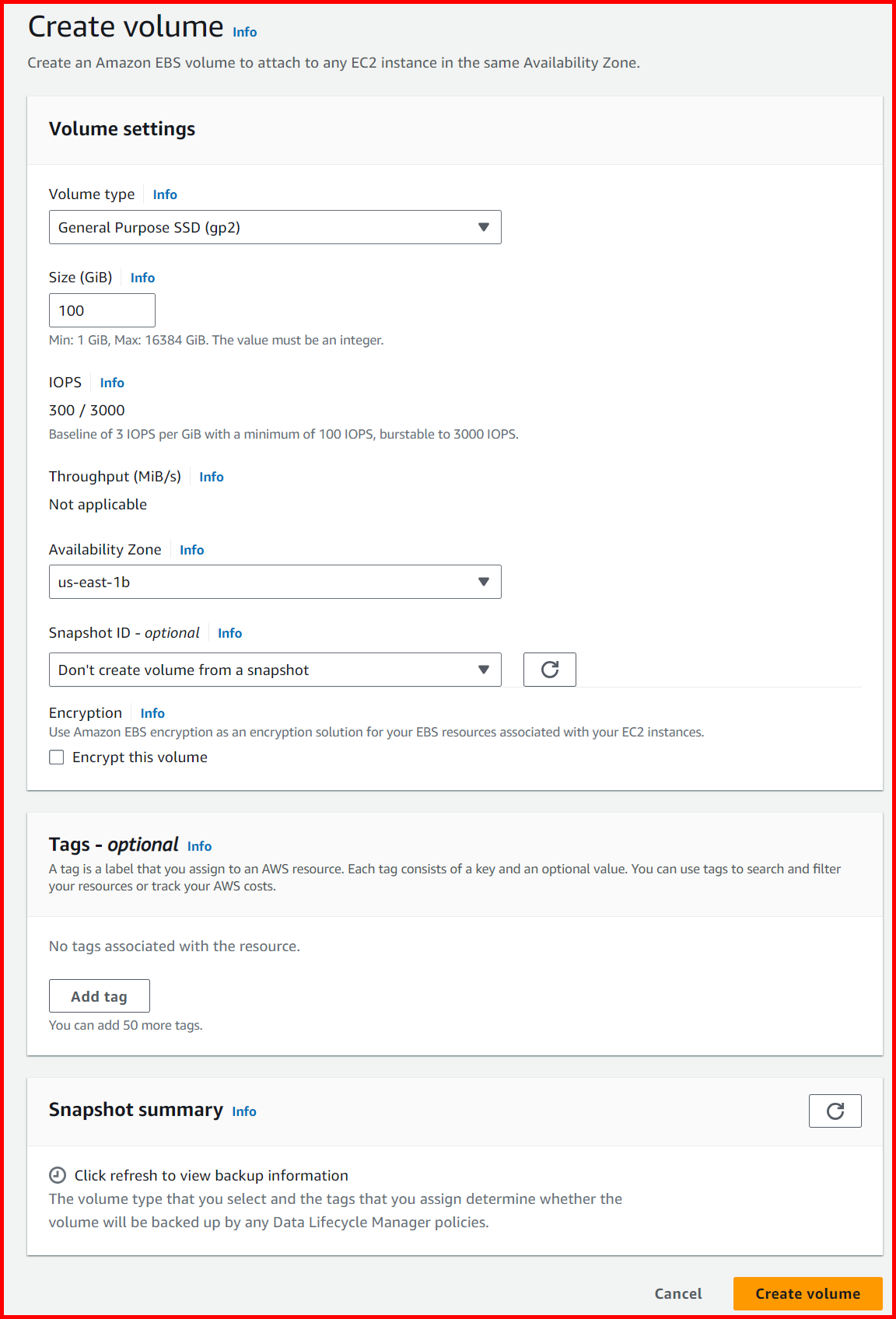

Picture showing the create volume screen in AWS console

Click to Enlarge

Please note that the availability zone of the volume should be the same as the EC2 instance

Click on the Create Volume button to complete the creation.

Attaching The Volume With The EC2 Instance

Once the volume is created, select the volume, and click on Actions → Attach Volume.

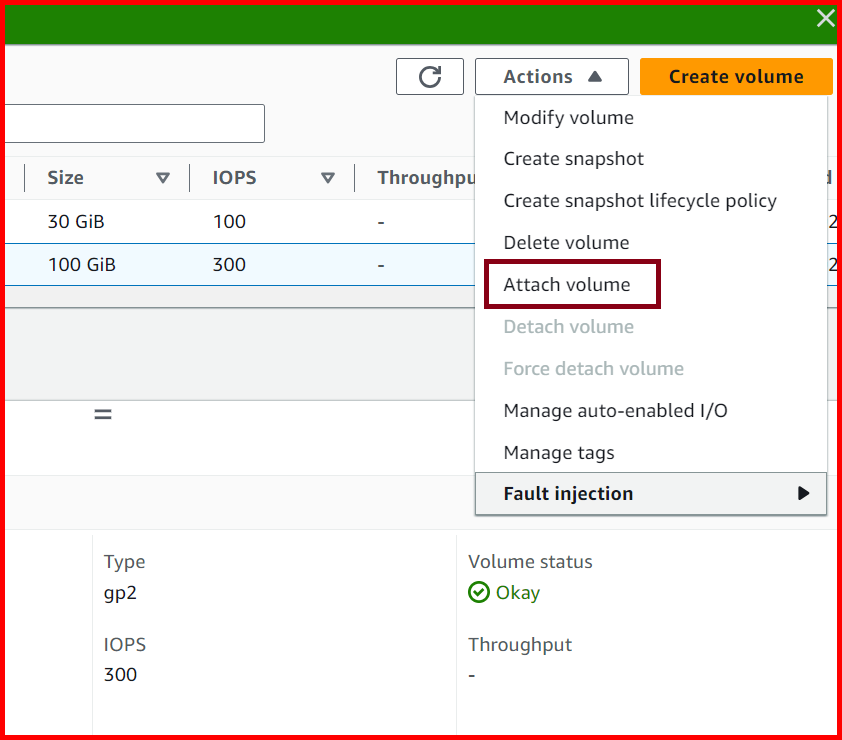

Picture showing the Attach Volume menu option for attaching the volume with EC2 instance

Click to Enlarge

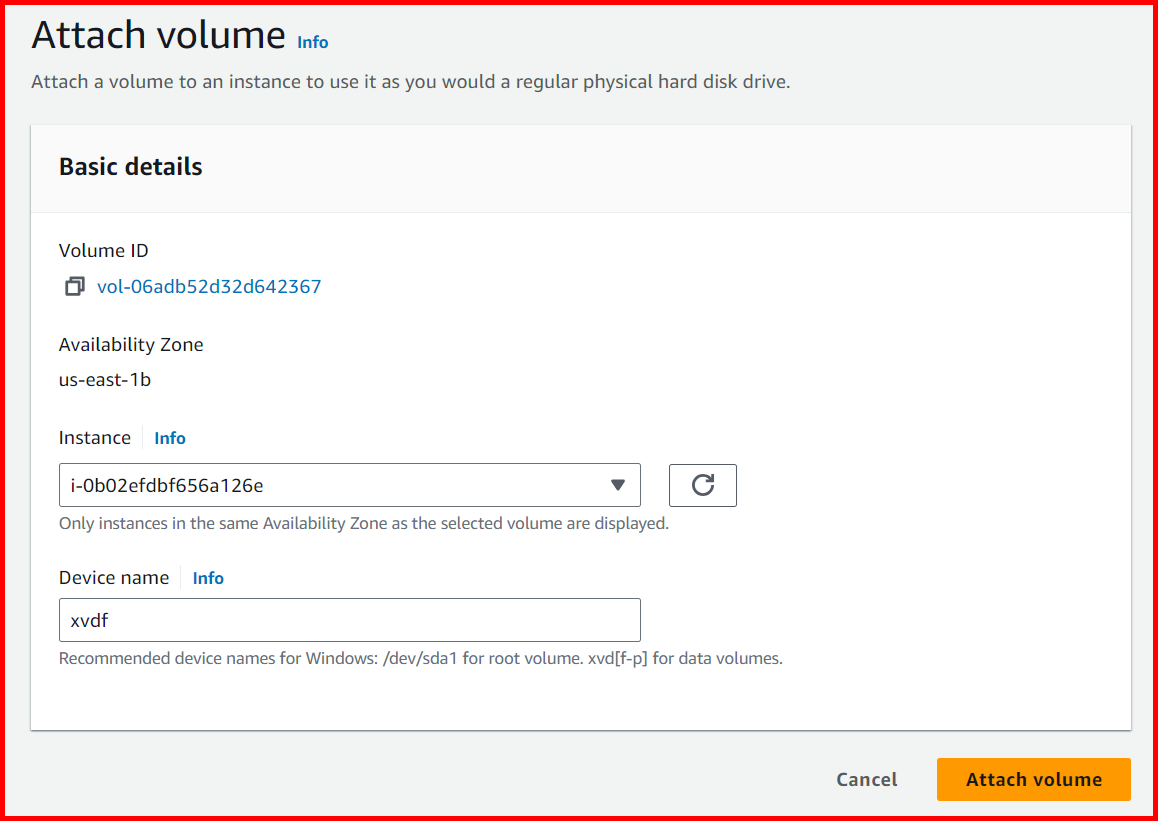

A popup window appears to select the EC2 instance.

Click to Enlarge

Click on the Attach volume button.

Formatting And Mounting The Volume

This is the last step. In this step, we will log in to the Windows EC2 instance using RDP. You can only see one default drive.

Picture showing the default drive in the EC2 instance

Click to Enlarge

Now, open the notepad and write the following script

select disk 1
attributes disk clear readonly
online disk
convert mbr
create partition primary
format quick fs=ntfs label="vol-0402c5befa60790ea"
assign letter="D"

Save it to a specific location. For this article, I am storing it in a C drive with the name diskpart.txt. Open the command prompt and go to the C drive.

Execute the below command using the command prompt.

diskpart /s diskpart.txt

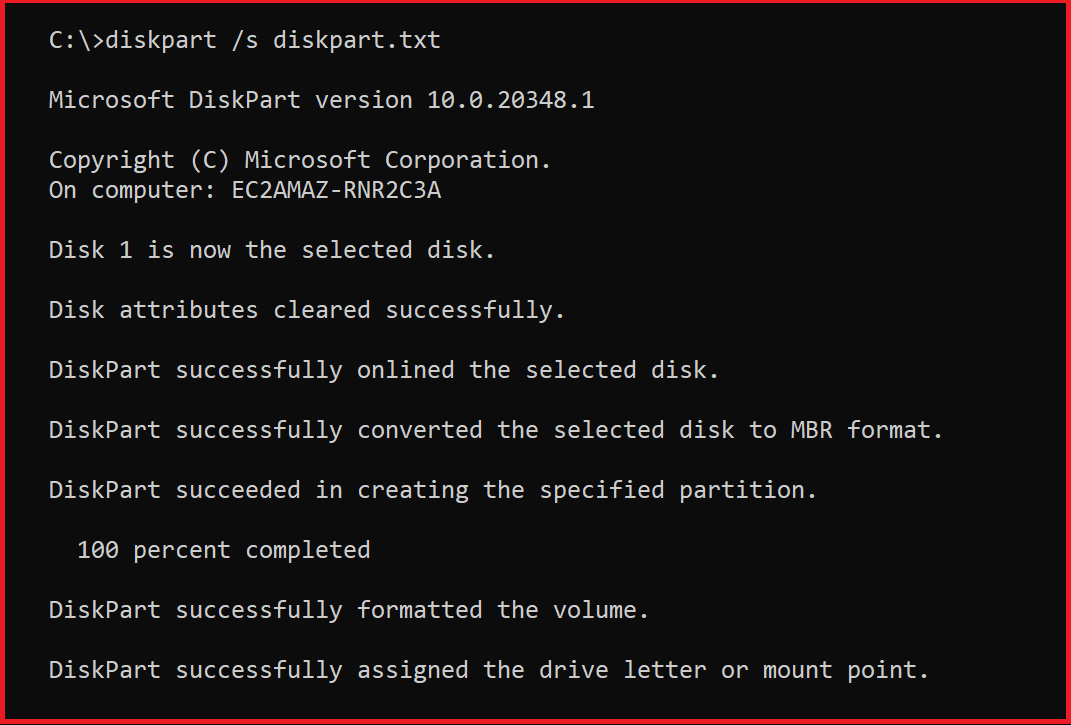

Picture showing executing the diskpart command for formatting and mounting the disk drive

Click to Enlarge

Your drive is formatted and mounted. Now, you can see the volume added newly.

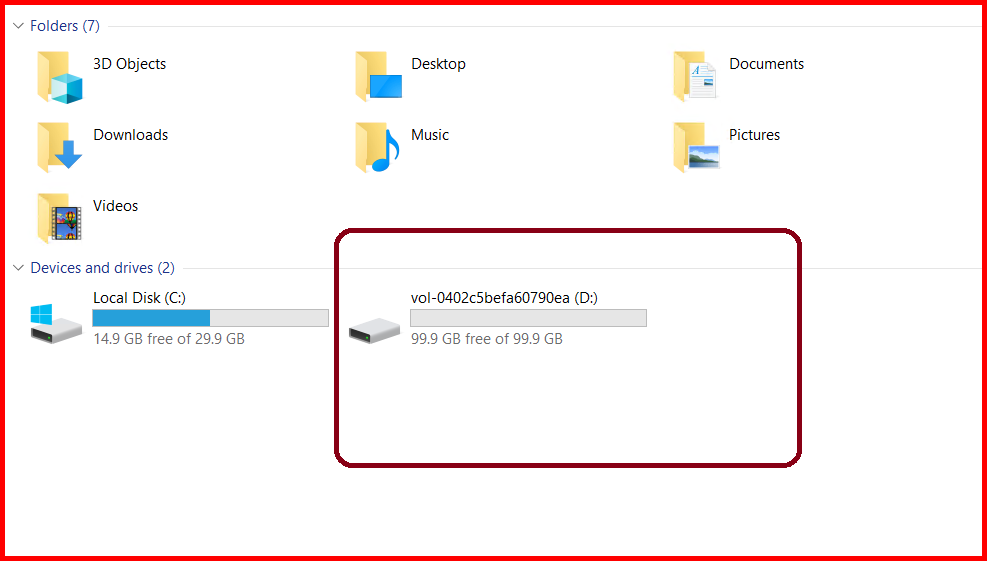

Picture showing the newly added volume in EC2 instance

Click to Enlarge

This Disk Is Already Online

While executing the diskpart script, you may come across this error. To fix this issue, open the hard disk partition utility.

Picture showing the open the hard disk partition utility in start menu

Click to Enlarge

Right-click on the drive and click on the Offline option.

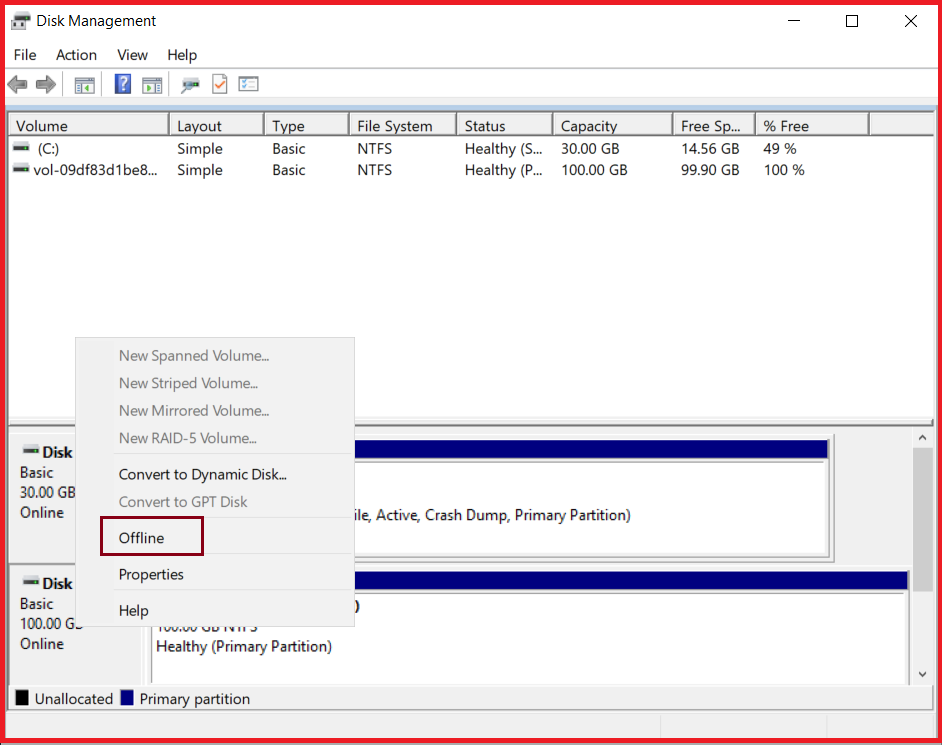

Picture showing setting the drive as offline

Click to Enlarge
