AWS Database Migration Service

In this article, we will discuss the AWS Database Migration Service.

Creation Of Source And Target Databases

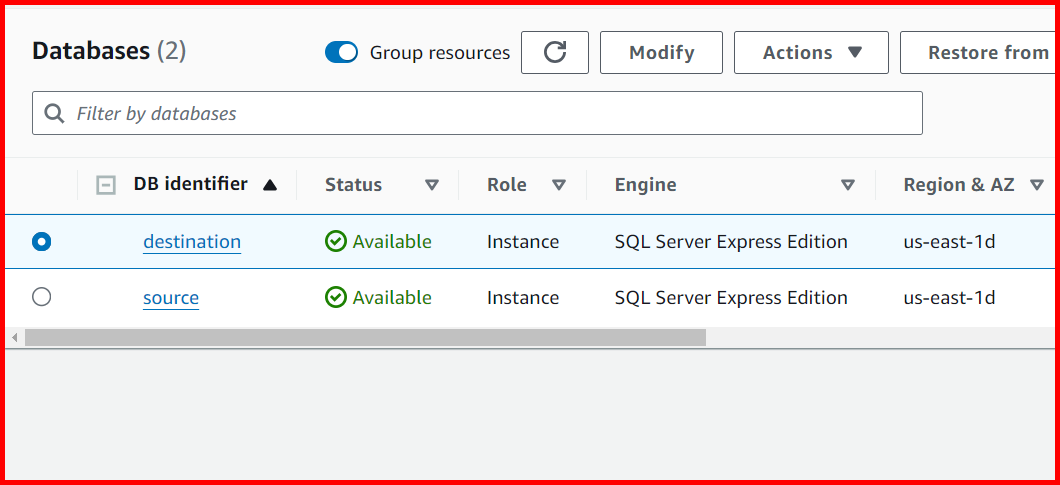

First, create 2 RDS databases i.e., the source and destination database instances.

Picture showing the source and destination RDS databases created in AWS console

Click to Enlarge

Create Table And Insert Data In Source Instance

Inside the source instance, create a database gyansangrah. Inside the database, create a table and enter the data.

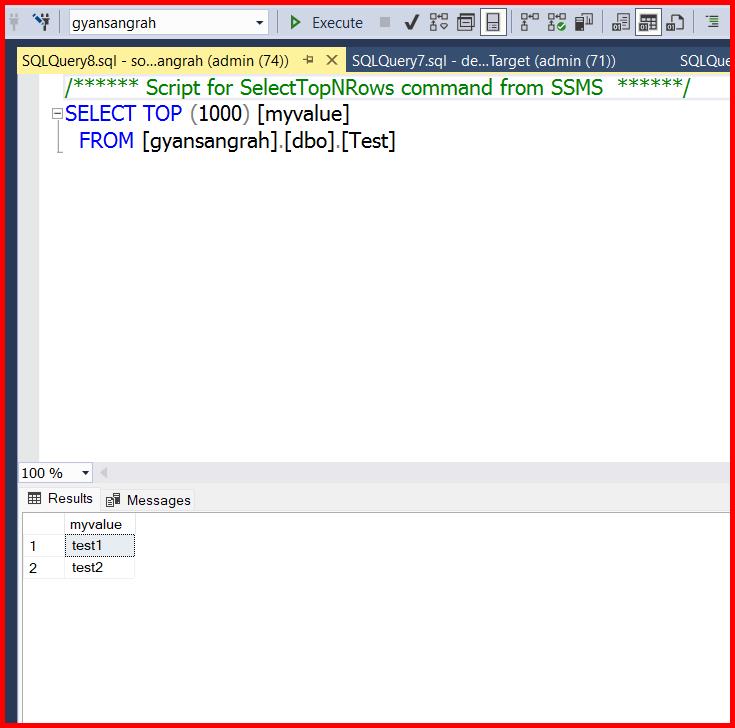

Picture showing the data is inserted into the source database

Click to Enlarge

Create Replication Instance

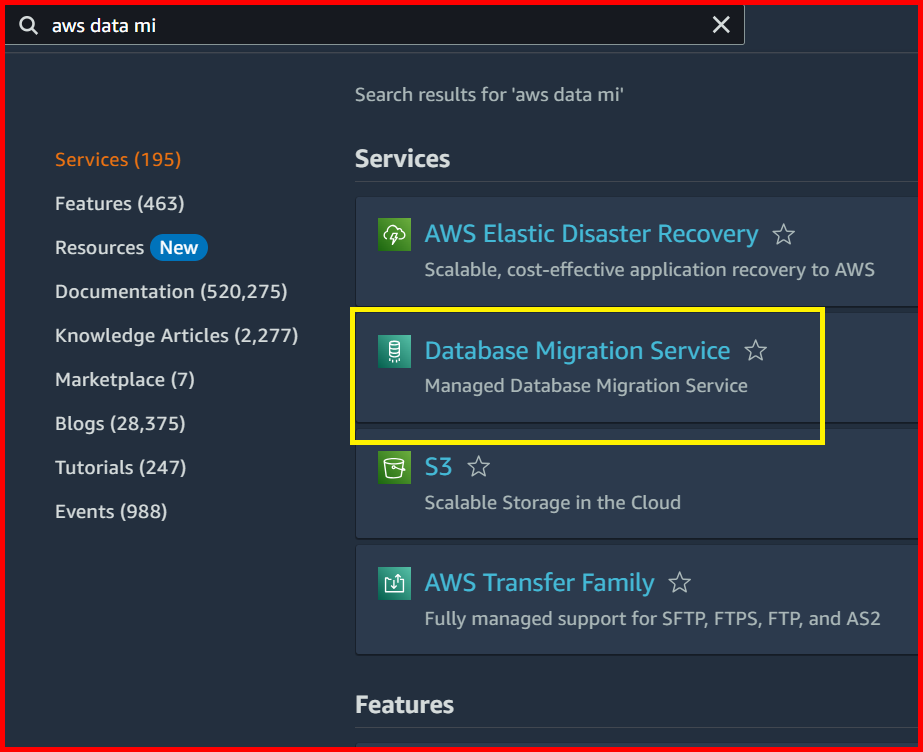

For creating the replication instance, search Database Migration Service and click on Database Migration Service in the search result.

Picture showing the Database Migration Service in search console

Click to Enlarge

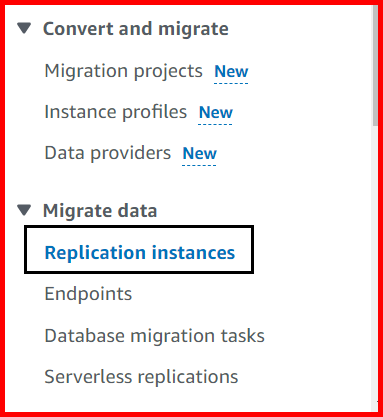

On the left-hand side menu, click on the Replication instances menu option.

Picture showing the Replication instance in the Migration data menu

Click to Enlarge

The following screen will appear. Click on the Create replication instance button.

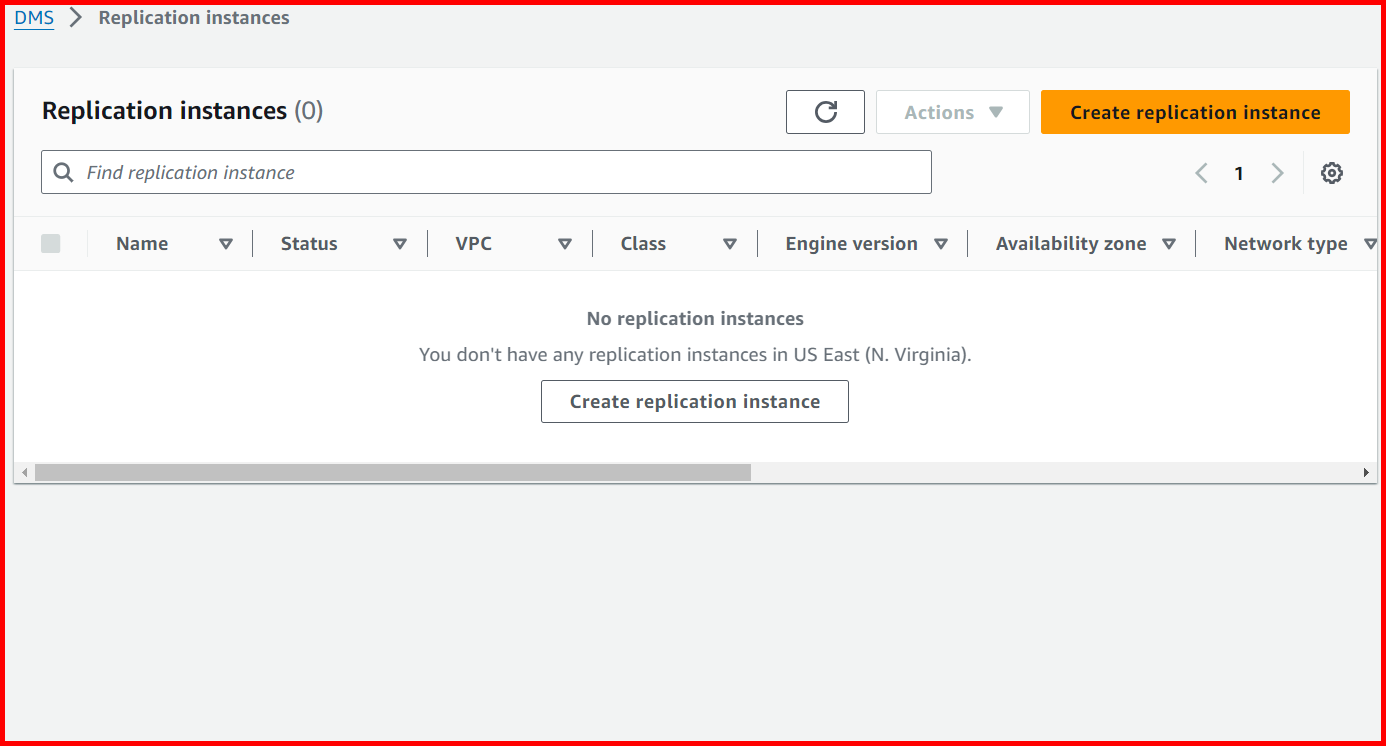

Picture showing the Create replication instance button for creating the new instance

Click to Enlarge

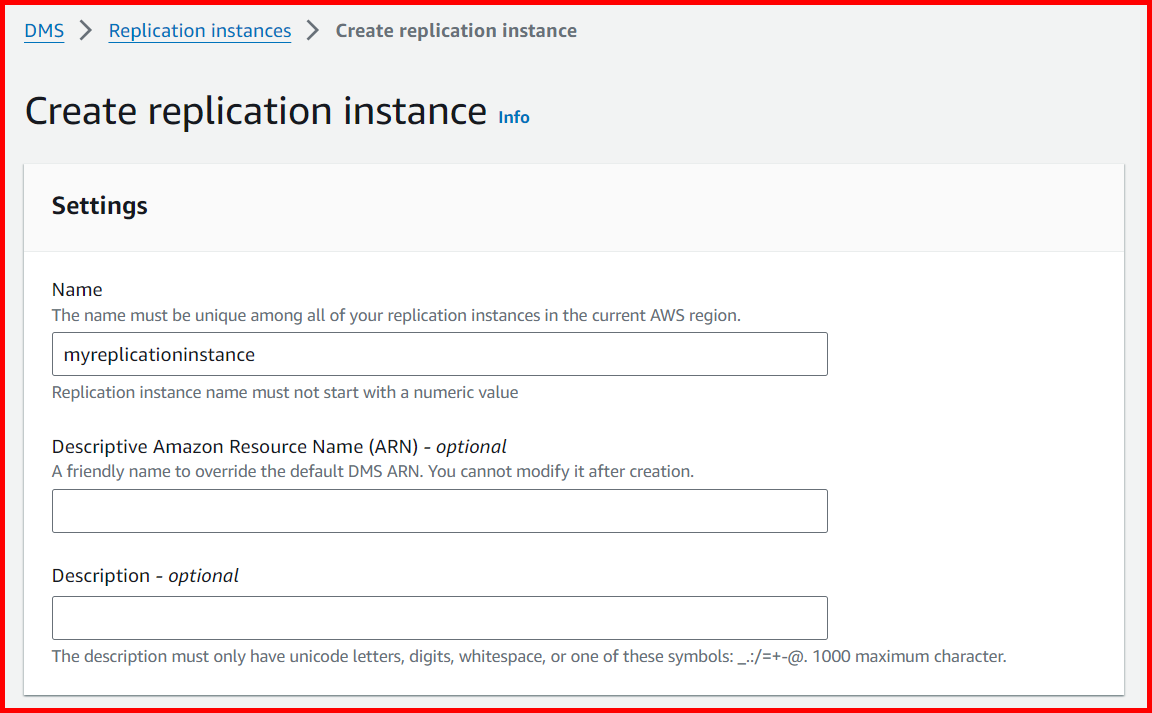

In the Create replication instance screen, enter the Name.

Picture showing the screen for entering the replication instance name

Click to Enlarge

Scroll down and select the High Availability as Dev or test workload (Single-AZ).

Picture showing selecting High Availability

Click to Enlarge

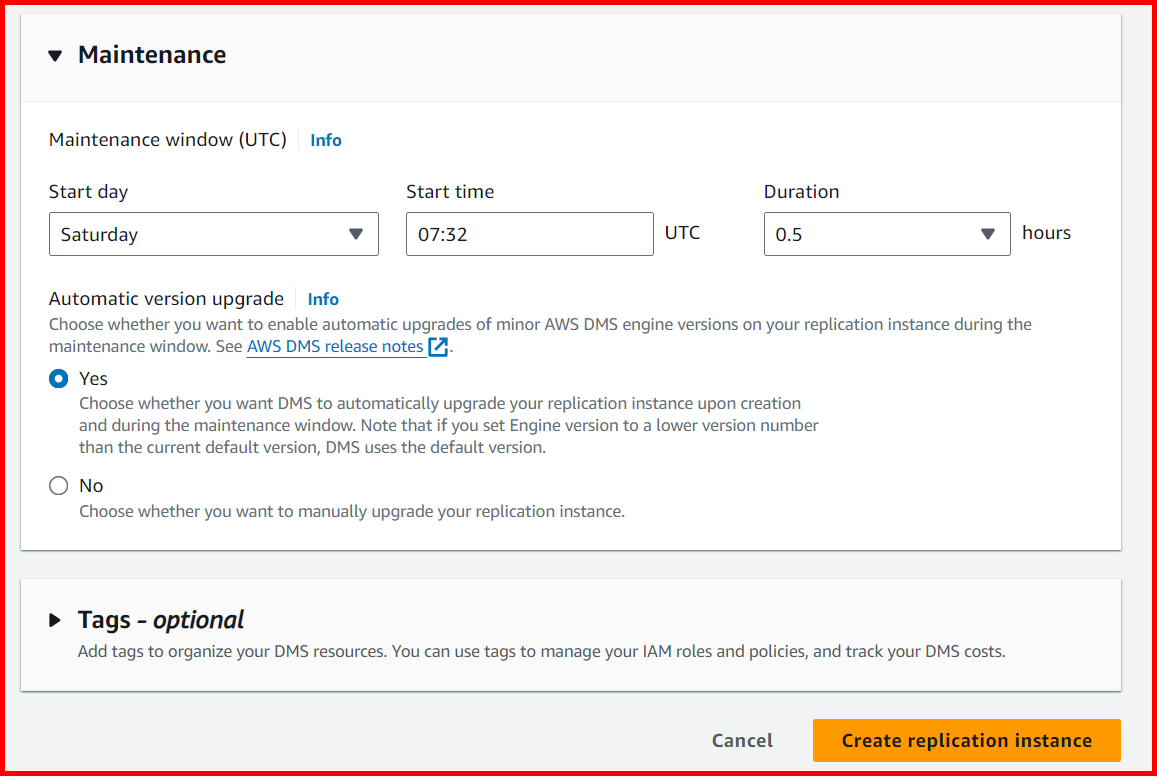

Scroll to the bottom and click on the Create replication instance button.

Picture showing the Create replication instance button for creating the replication instance

Click to Enlarge

Your replication instance creation has started. The Status is changed from Creating to Available.

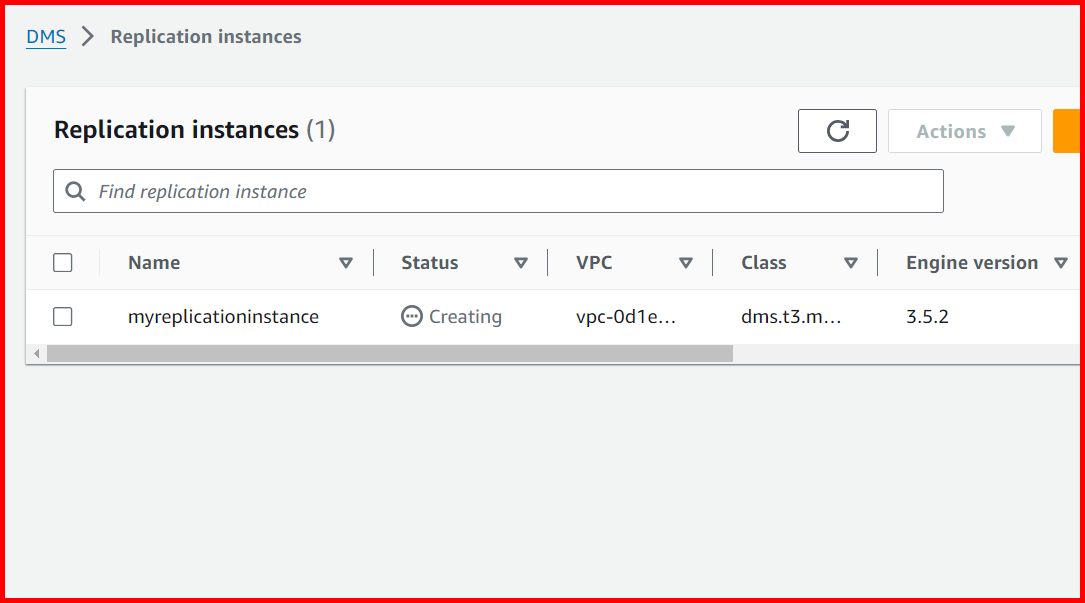

Picture showing the replication instance created with Creating status

Click to Enlarge

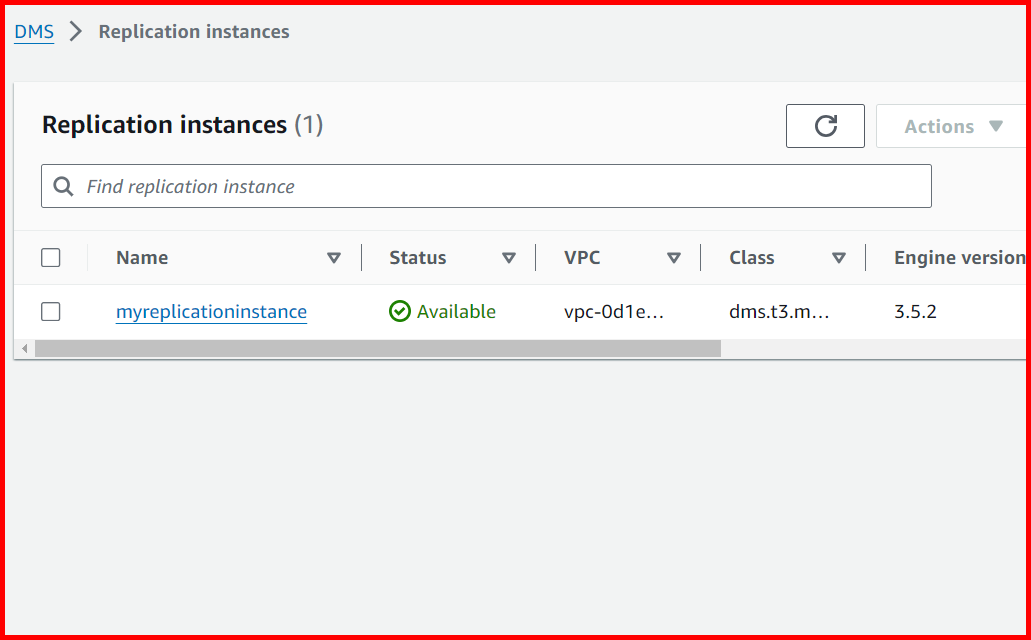

Picture showing the replication instance created with Available status

Click to Enlarge

Note → The subnet group contains at least 2 Availability Zones.

Create Database Endpoints

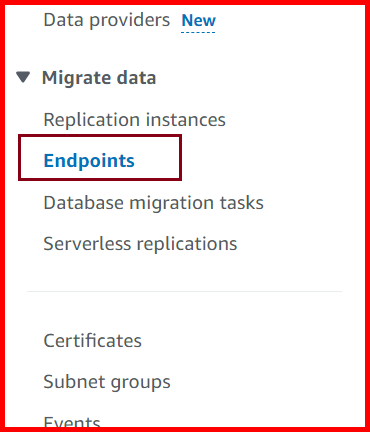

The next step is to create the database endpoints. For that, click on the Endpoints inside the Migrate data menu.

Picture showing the Endpoints menu in Migrate Data

Click to Enlarge

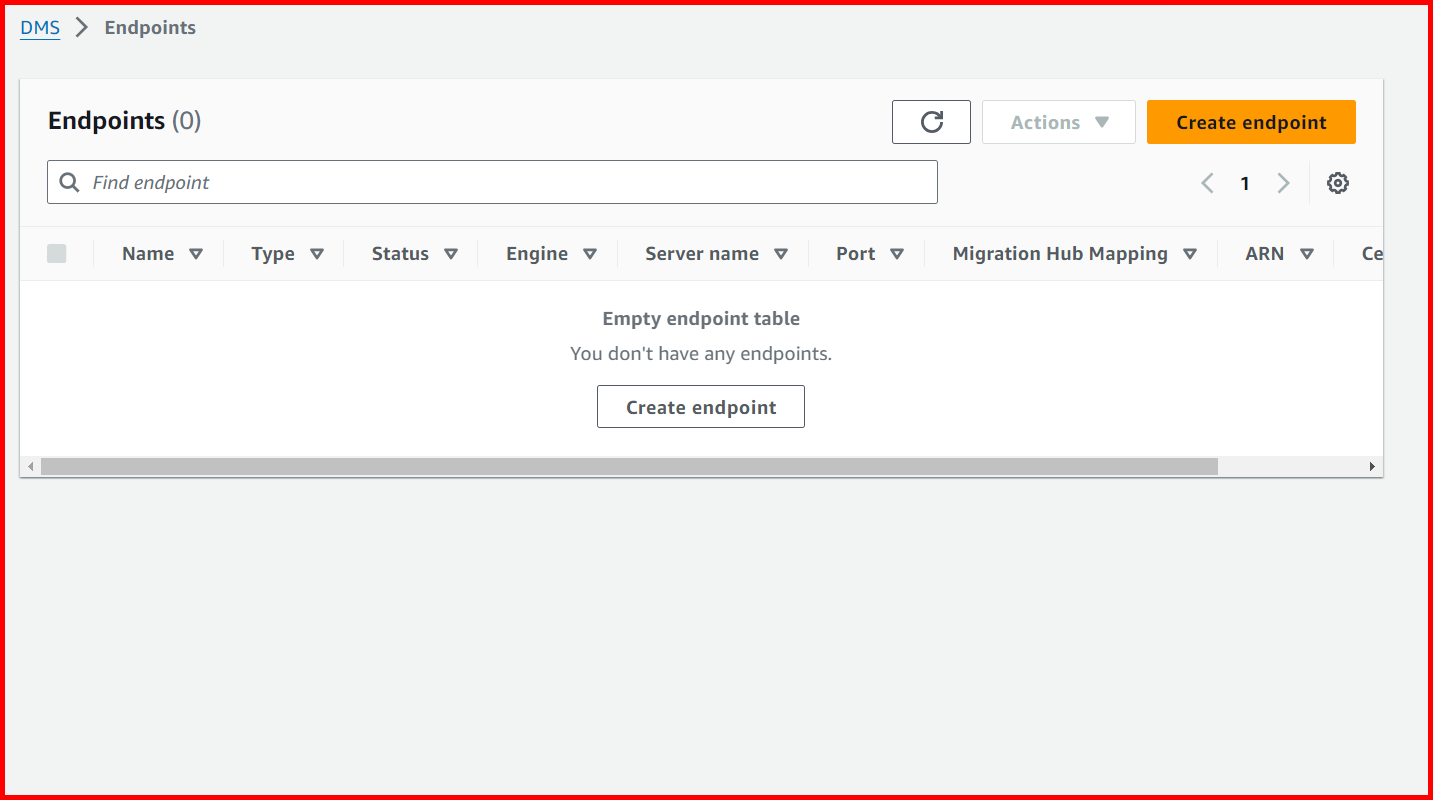

The endpoints screen will appear.

Picture showing the list of DMS endpoints

Click to Enlarge

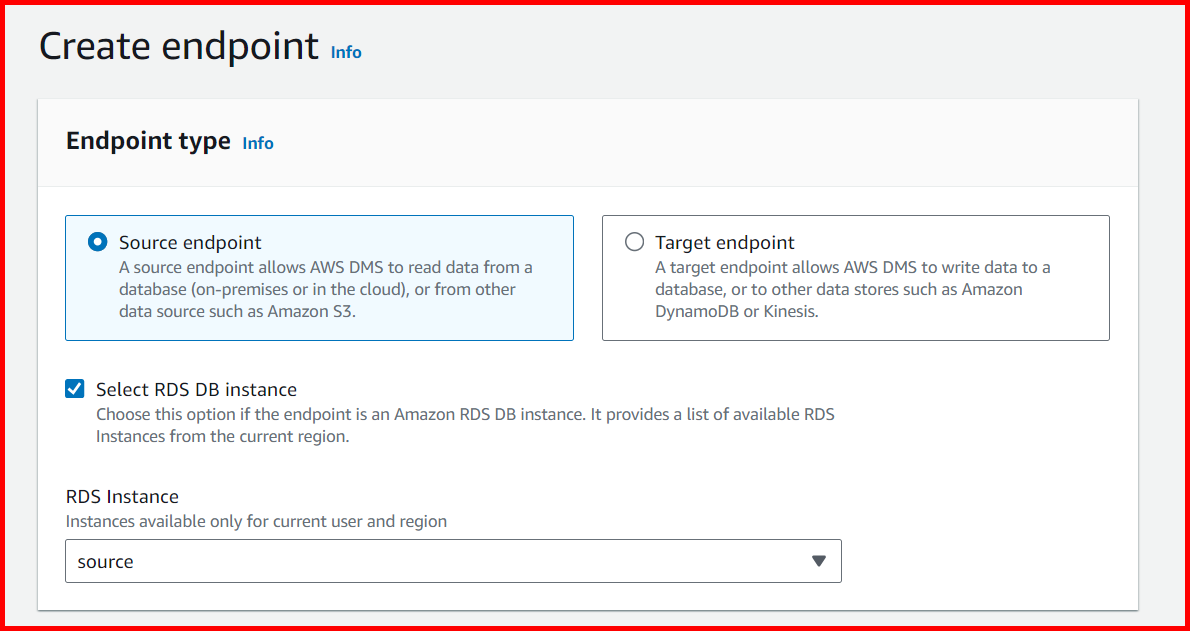

Click on the Create endpoint button. In the Create endpoint screen, select the Endpoint type as Source endpoint. Then select the RDS Instance as the source.

Picture showing selecting the endpoint type and the source RDS instance

Click to Enlarge

Scroll down to the Endpoint configuration section and enter the credentials of the database.

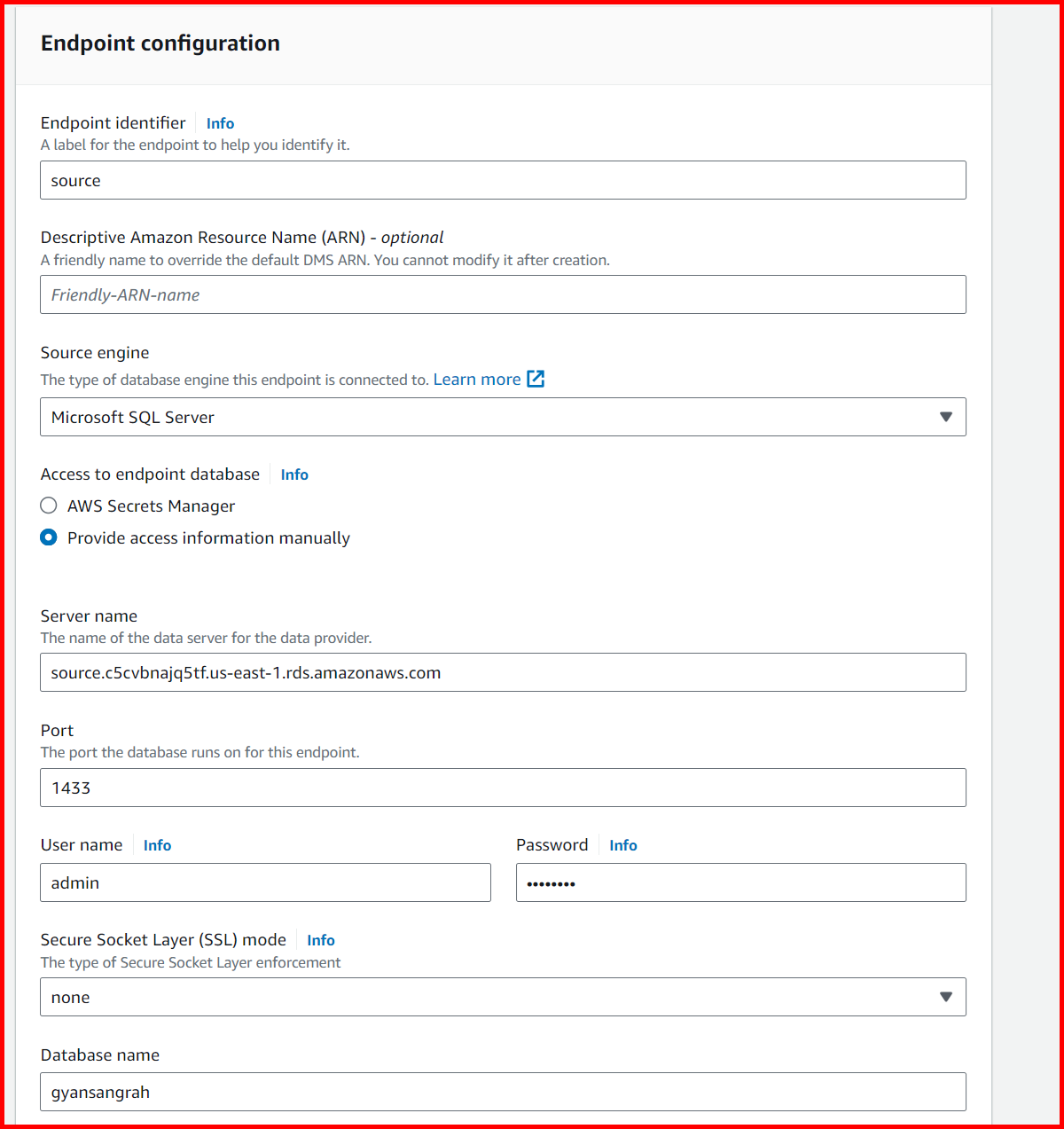

Picture showing setting the endpoint configuration of source database

Click to Enlarge

Scroll to the bottom to click on the Create endpoint button. Similarly, create the target endpoint.

For creating the target endpoint, select the Endpoint type as the Target endpoint.

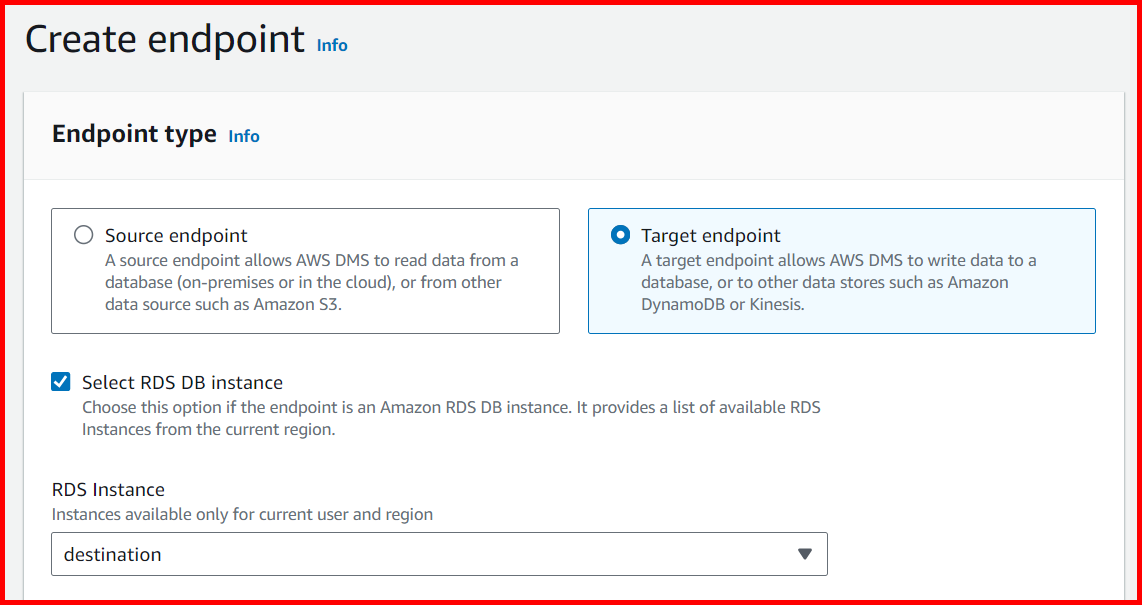

Picture showing selecting the endpoint type and the Target RDS instance

Click to Enlarge

The rest of the steps are the same. Both the endpoints are created.

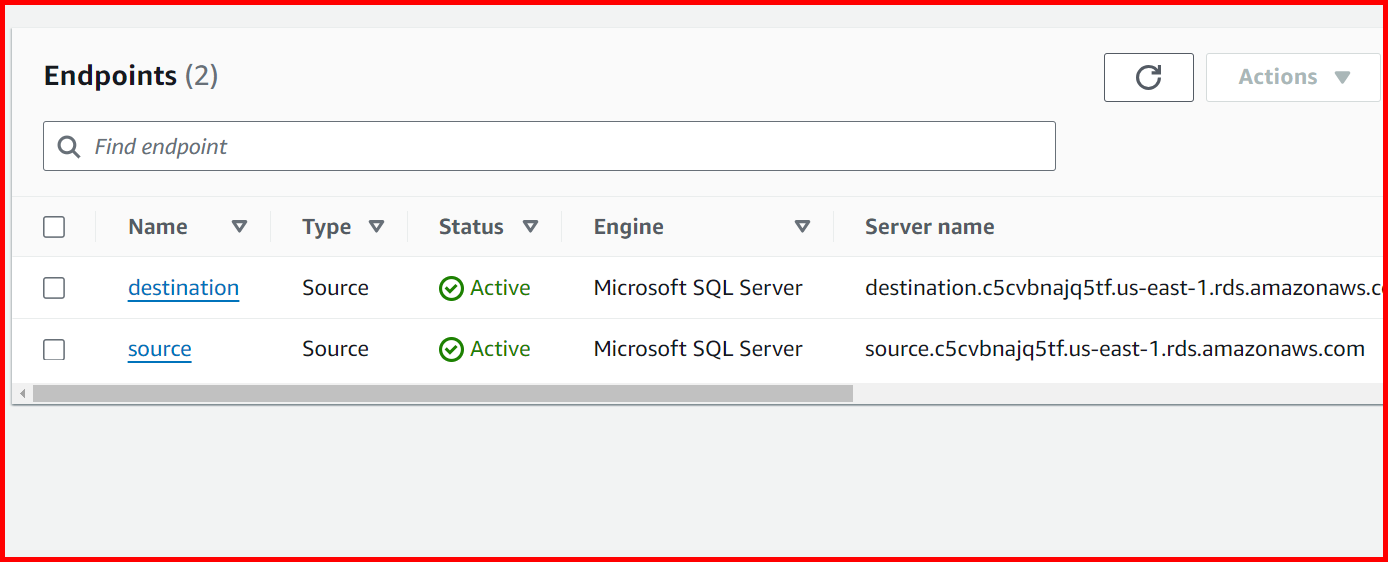

Picture showing the list of source and target endpoint

Click to Enlarge

Create The Database Migration Tasks

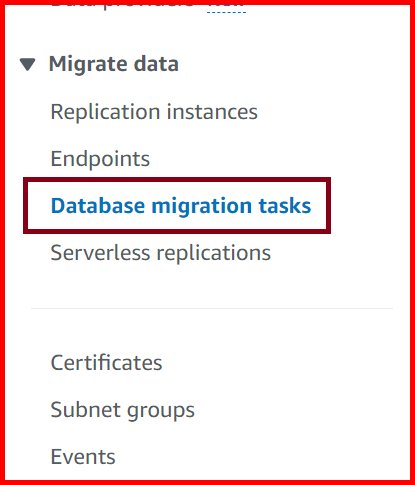

First, click on the Database migration tasks from the left menu.

Picture showing the Database MIgration Tasks submenu in Migration data menu

Click to Enlarge

The following screen will appear.

Picture showing the screen to list the Database migration tasks

Click to Enlarge

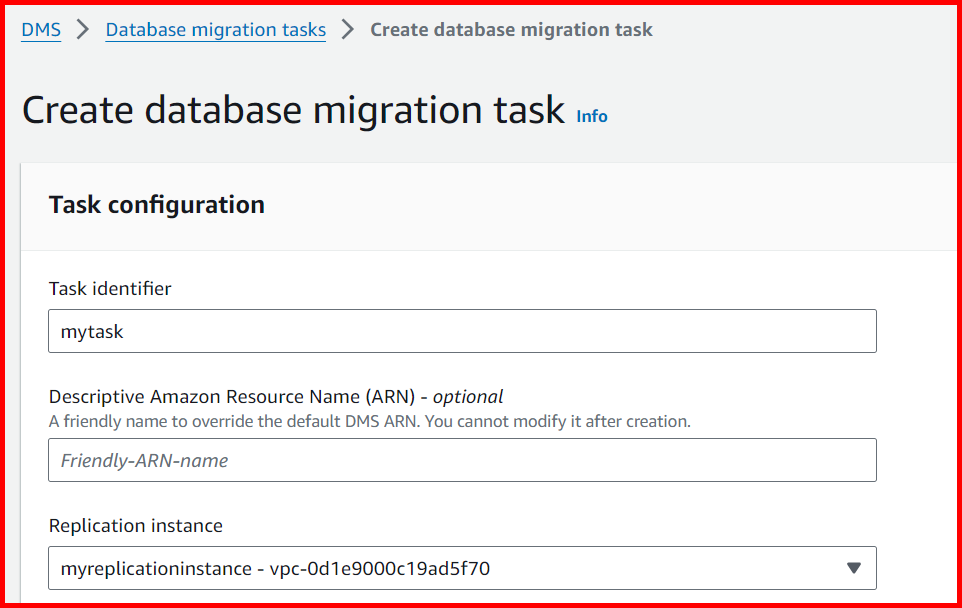

Click on the Create task button. A screen will appear to create the task. In the Create task screen, enter the Task identifier.

Picture showing the section of the screen for entering the Task Identifier

Click to Enlarge

Scroll down to select the Source database endpoint, Target database endpoint, and Migration type.

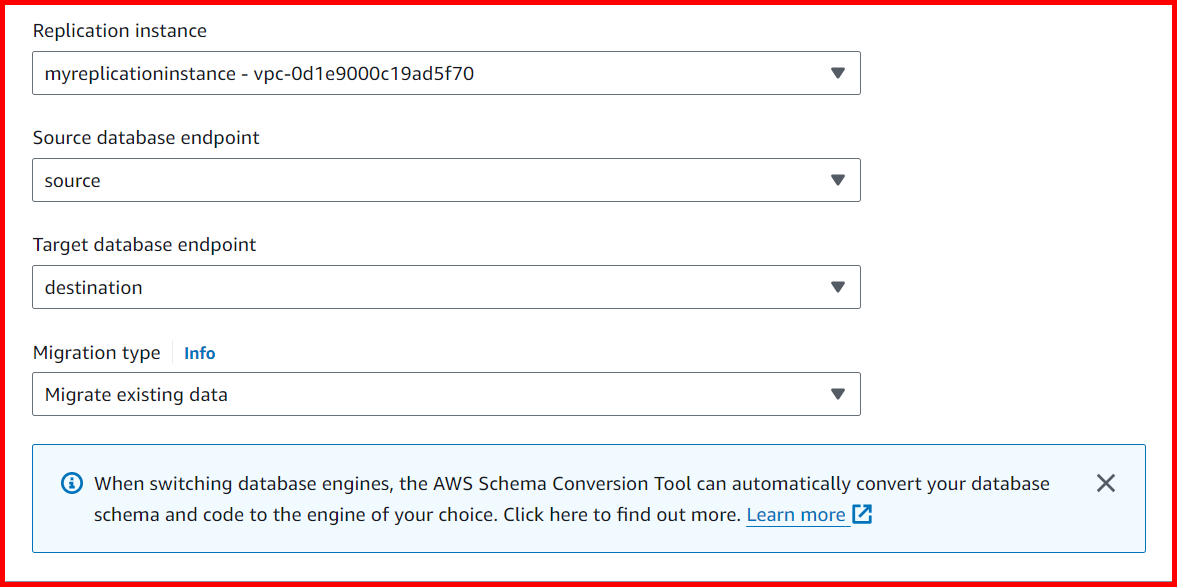

Picture showing the section of screen to select the source and target database endpoint

Click to Enlarge

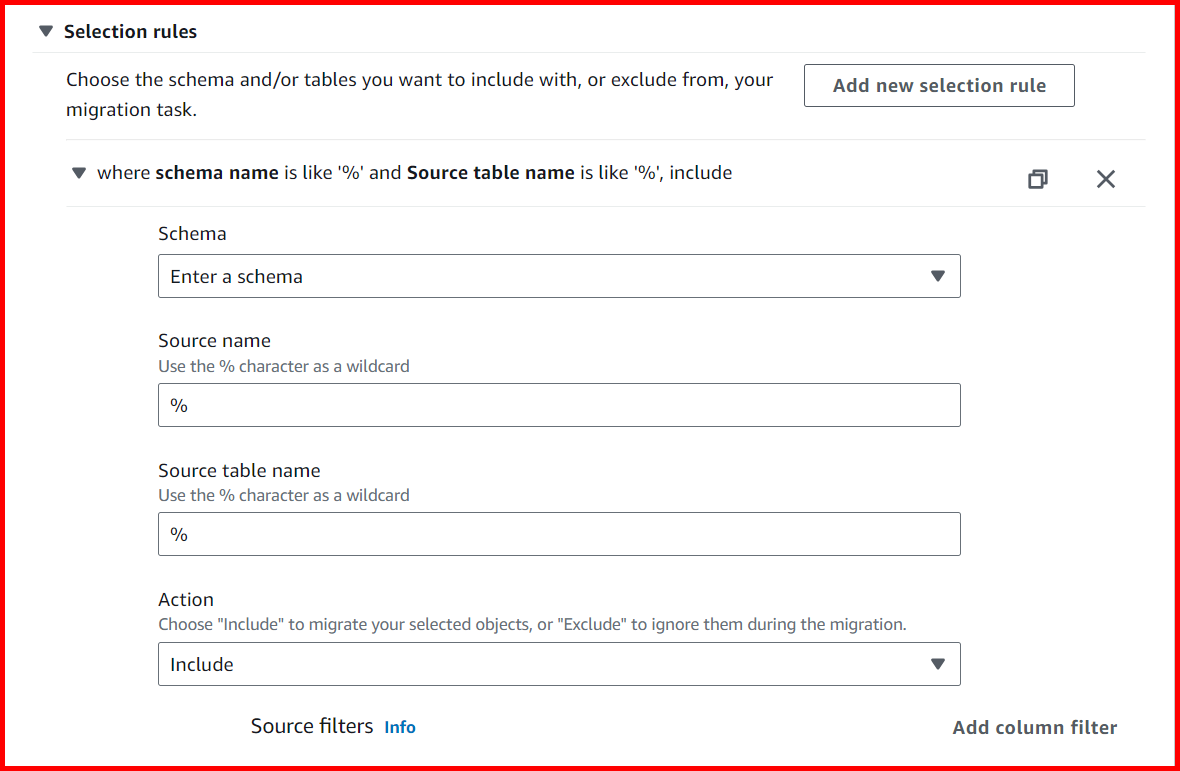

Scroll down further to add the selection rule.

Picture showing the section of screen to select the selection rules

Click to Enlarge

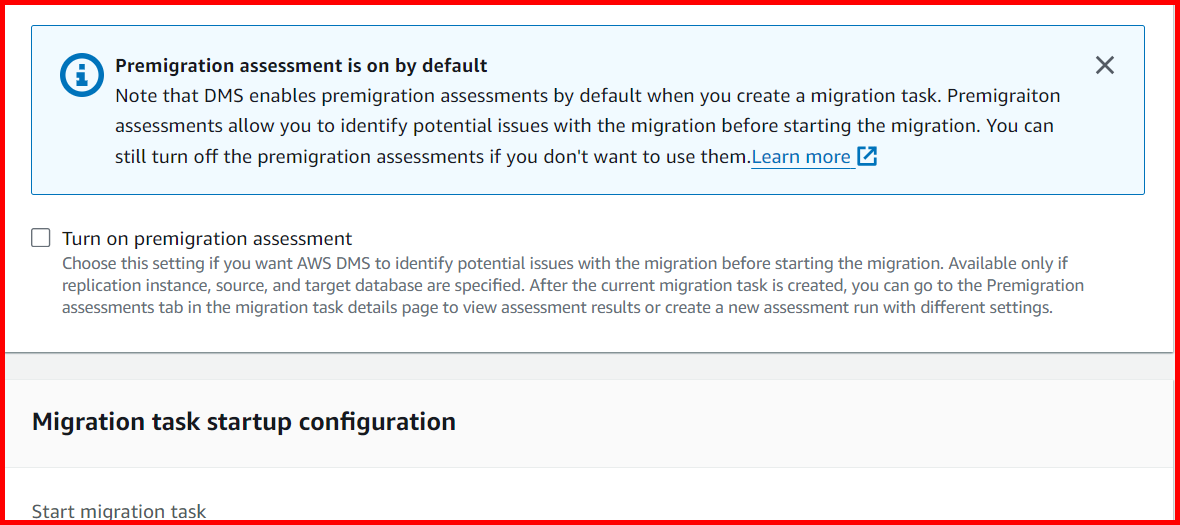

Scroll down further and uncheck the checkbox Turn on premigration assessment.

Picture showing turn off the checkbox Turn on premigration assessment

Click to Enlarge

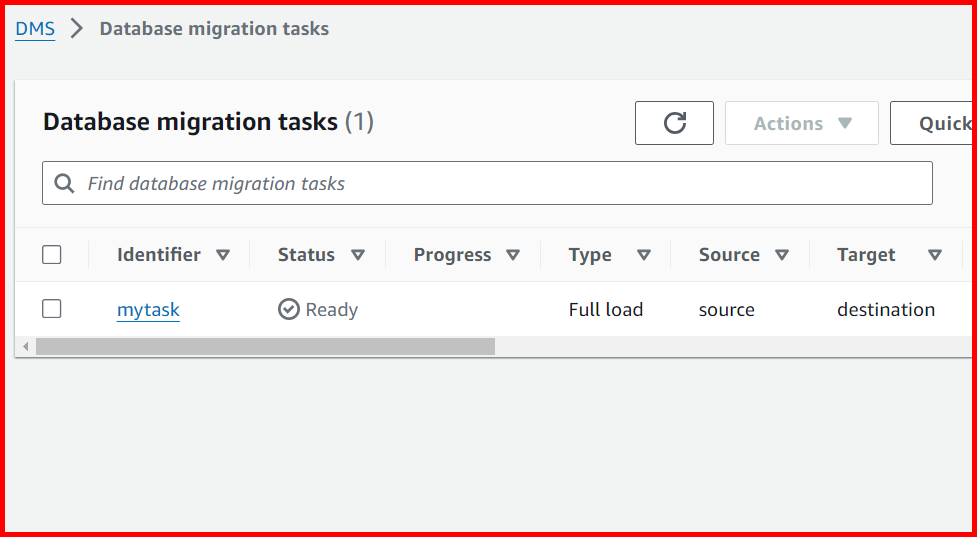

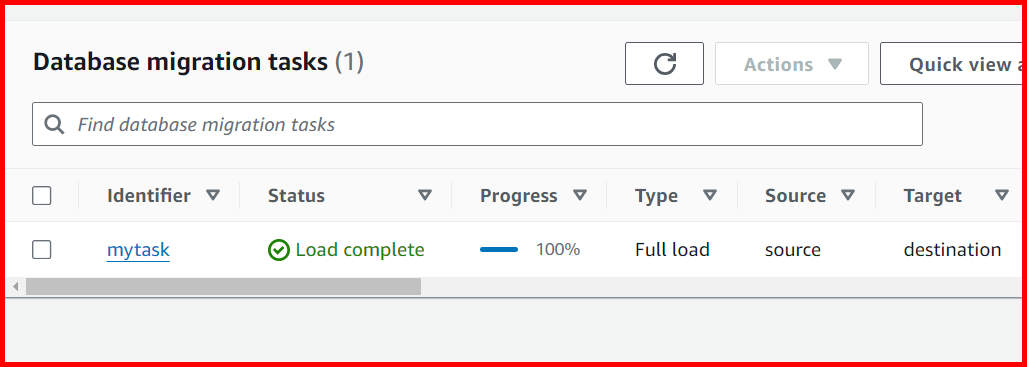

Scroll to the bottom and click on the Create task button. The task will be created. The Status is changed from Creating to Ready to Load complete.

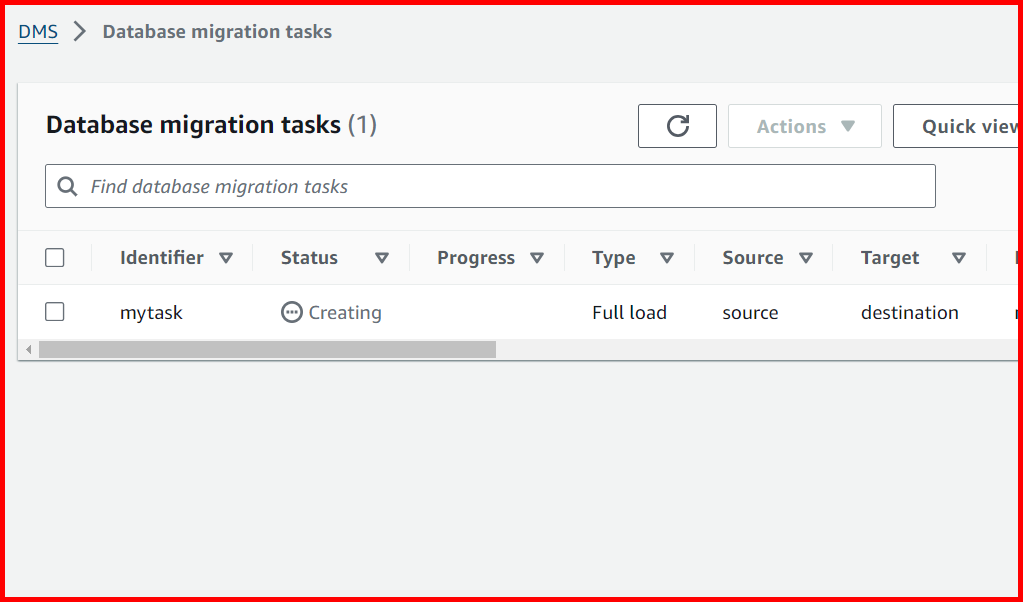

Picture showing the execution status of the database migration task

Click to Enlarge

Output

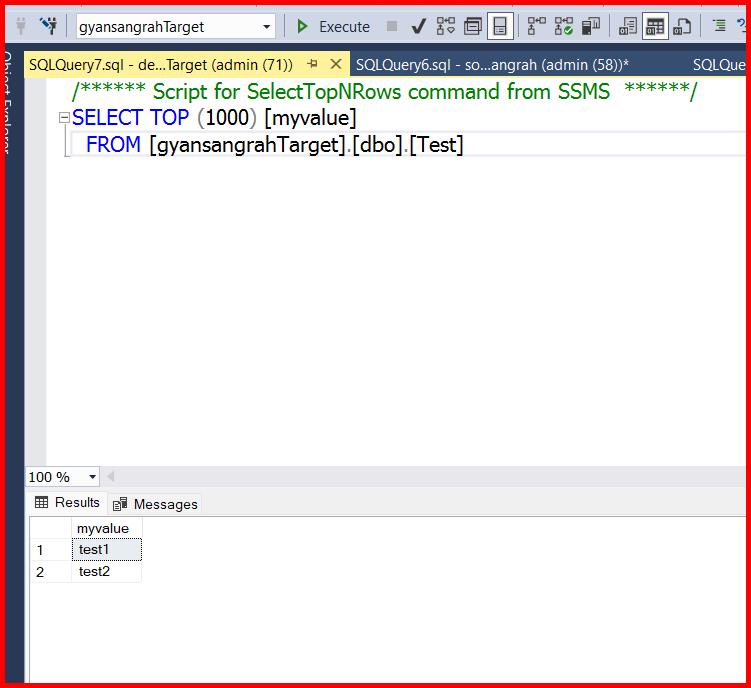

The table and data are migrated to the target database.

Picture showing the database tables and data migrated to target database

Click to Enlarge
