VPC Interface Endpoint In AWS

In this article, we will discuss the VPC interface endpoint in AWS.

Purpose

The VPC endpoint enables you to connect VPC to the AWS services without using the internet gateway.

How To Create A VPC Interface Endpoint?

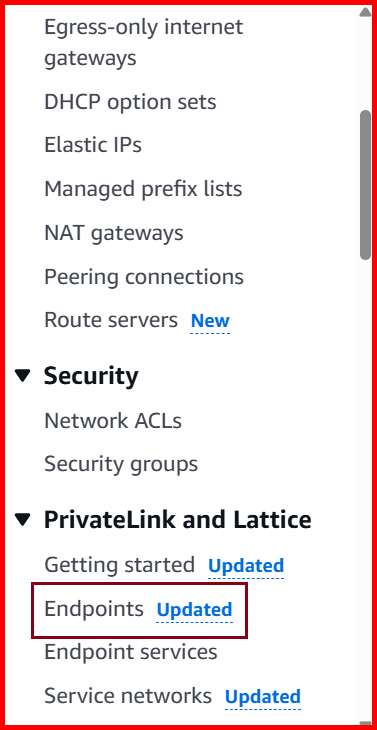

To create a VPC endpoint, go to the VPC dashboard. On the VPC dashboard, click on the Endpoints menu.

Picture showing the Endpoints submenu in the Virtual private cloud menu

Click to Enlarge

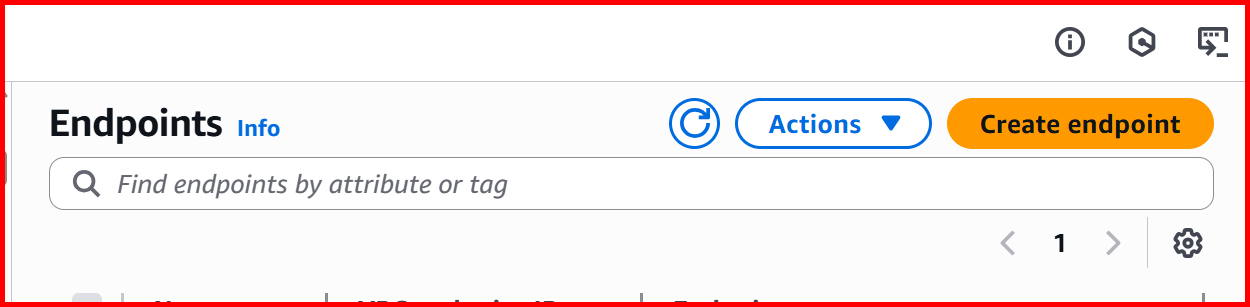

The endpoint screen will appear on the right-hand side. Click on the Create endpoint button.

Picture showing the screen for showing the list of endpoints

Click to Enlarge

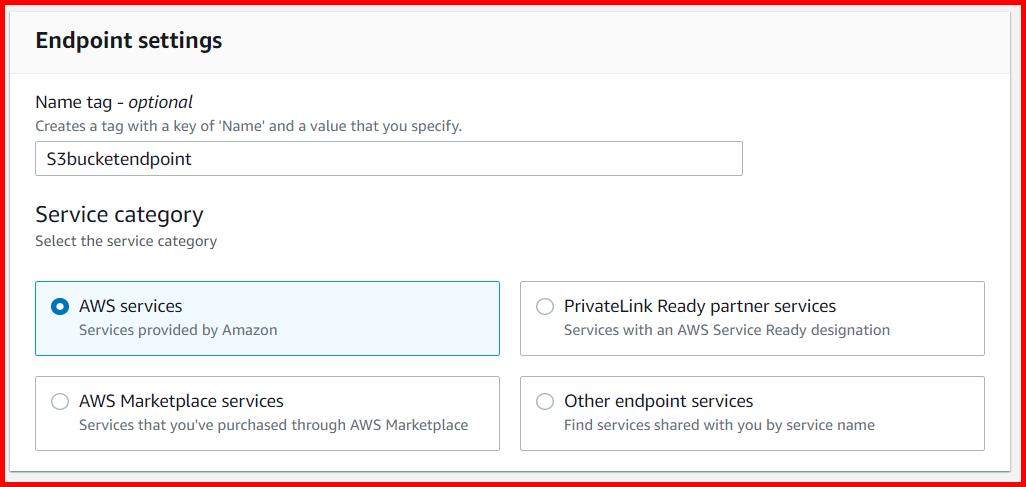

On the create endpoint screen, enter the Name.

Picture showing the section for entering the end point name and selecting the endpoint category

Click to Enlarge

In the Service Category, select the option AWS services (see the figure above). In the AWS service, select com.amazonaws.s3-global.accesspoint.

Picture showing selecting the service for the endpoint

Click to Enlarge

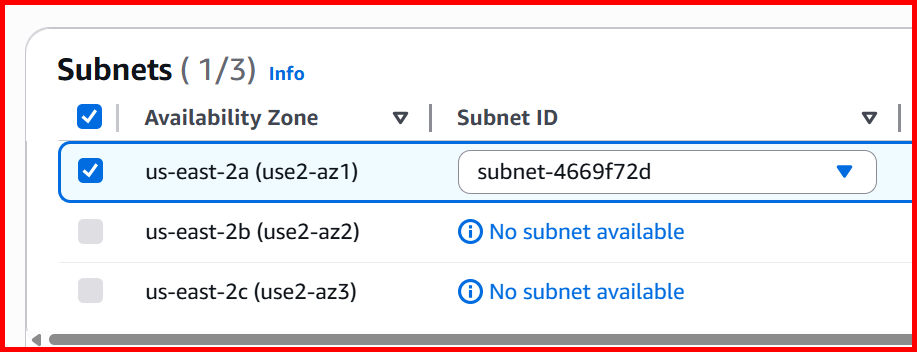

Scroll down to select the VPC and subnets.

Picture showing selecting the vpc and subnet for endpoint

Click to Enlarge

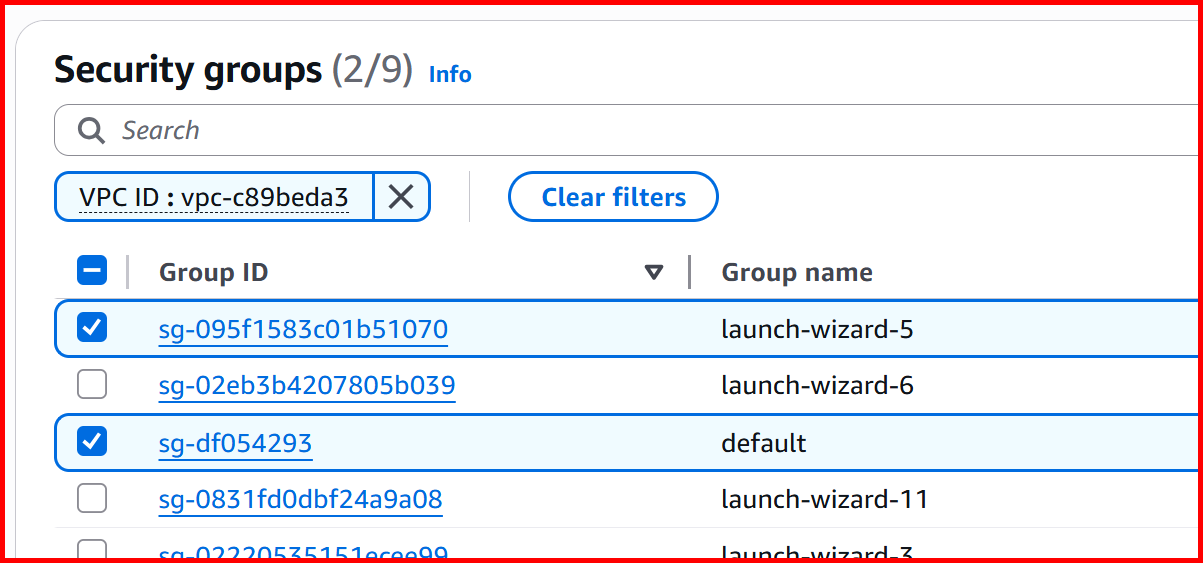

Scroll down further, select the security groups.

Picture showing selecting the security group for endpoint

Click to Enlarge

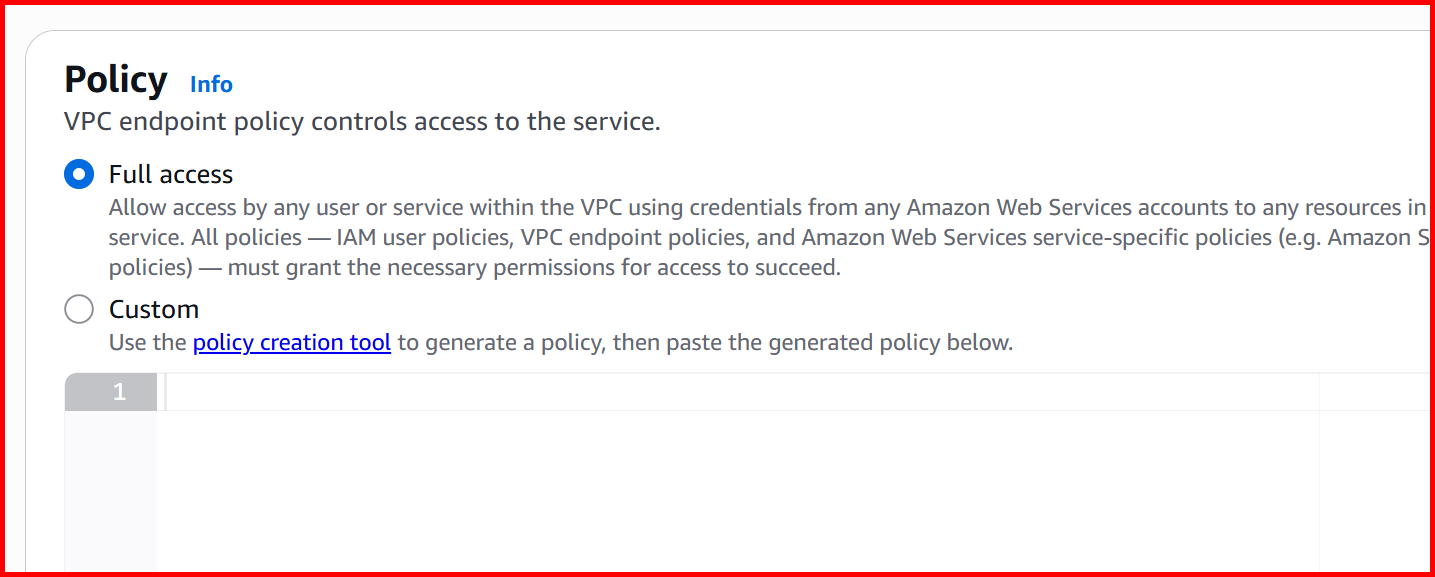

Furthermore, scroll further to select the policy.

Picture showing selecting the policy of an endpoint

Click to Enlarge

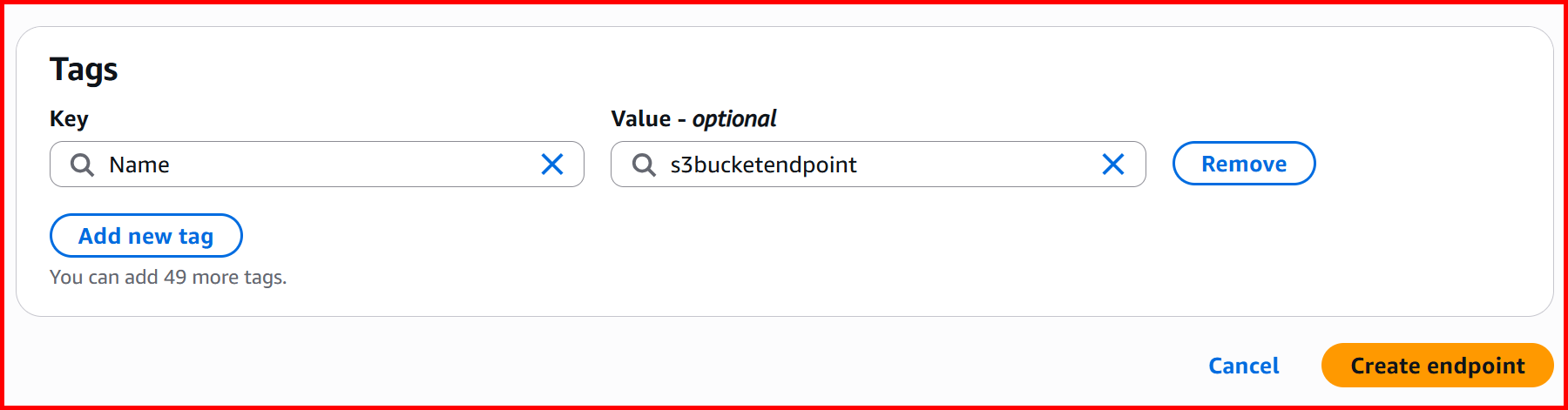

Finally, click on the Create endpoint button.

Picture showing selecting the tag for then endpoint

Click to Enlarge

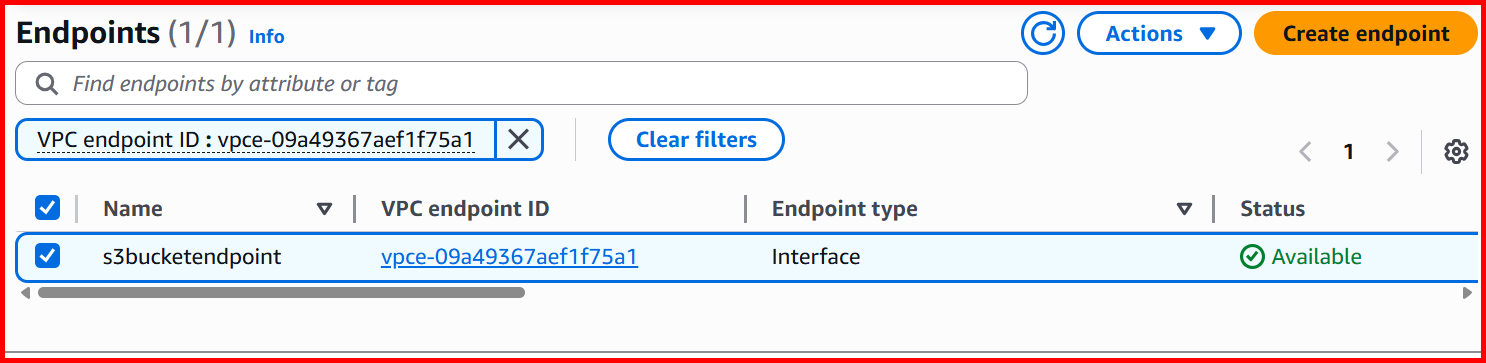

The interface endpoint is created.

Picture showing the endpoint created in AWS console

Click to Enlarge

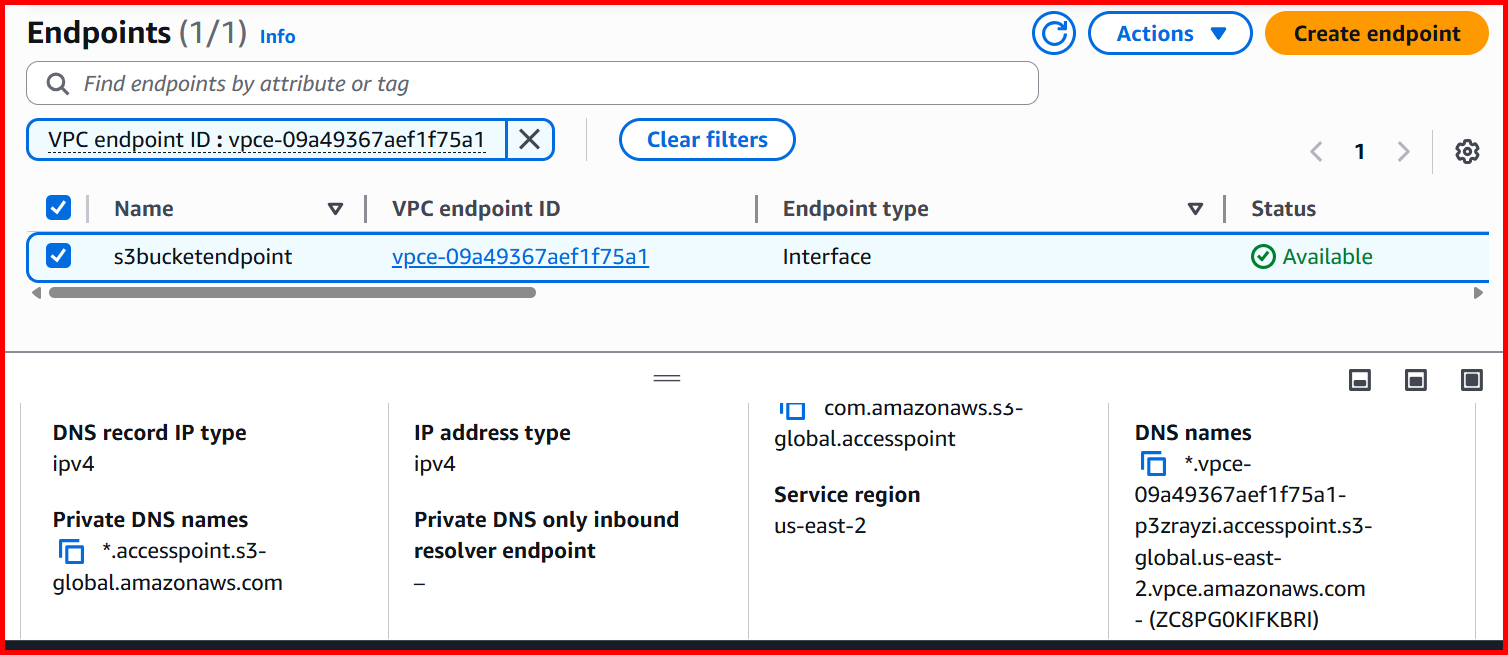

If you select the interface endpoint, you can see the DNS names used to connect the AWS services.

Picture showing the endpoints in different regions

Click to Enlarge
