Target Groups In AWS

This article describes target groups in AWS.

Purpose

A target group is a set of resources (like EC2 instances or Lambda functions) that a load balancer routes traffic to based on configured rules.

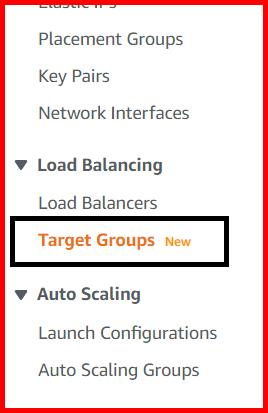

To create a target group, click on the Target Groups link in the left-hand menu.

Click to Enlarge

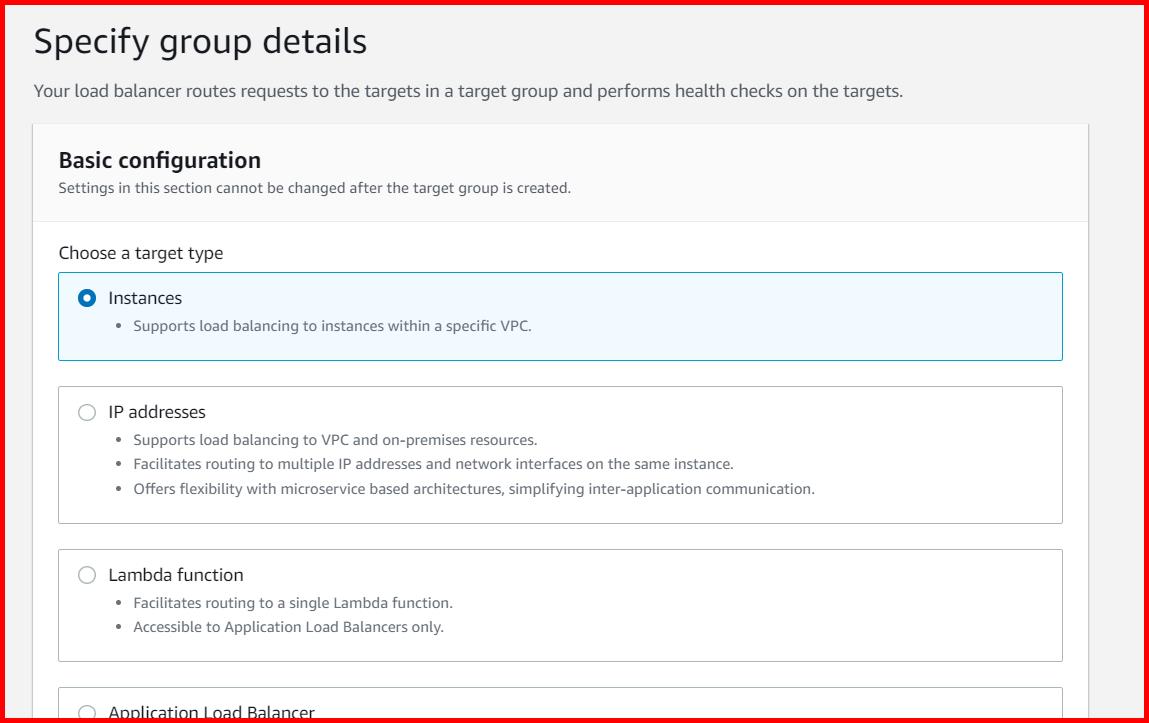

The Create Target Group screen will appear. First, select the target type. For this article, we will choose Instances.

Click to Enlarge

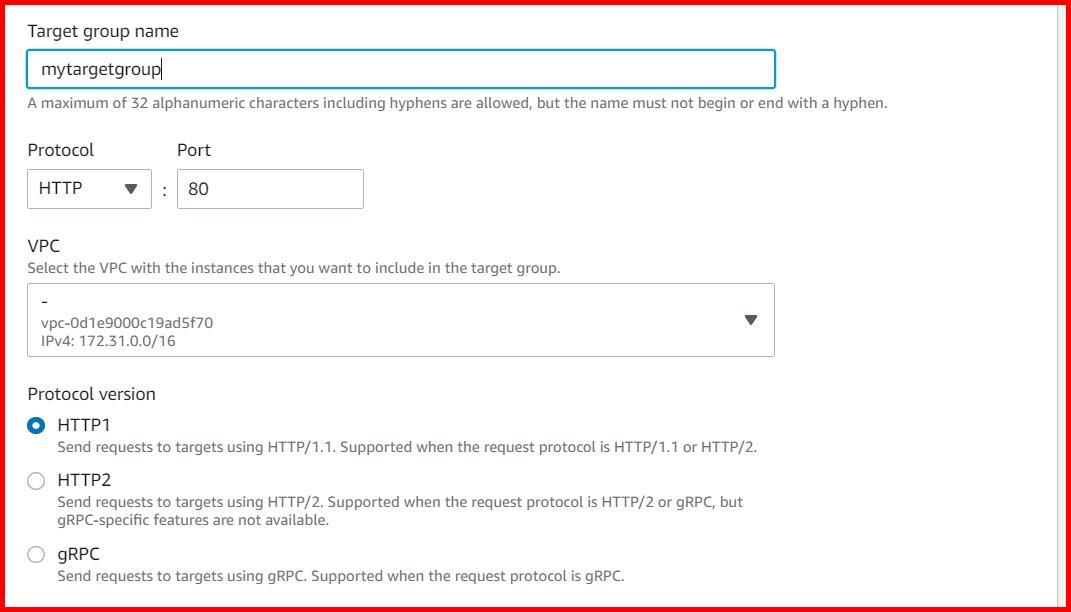

Scroll down to input the Target group name and Protocol.

Click to Enlarge

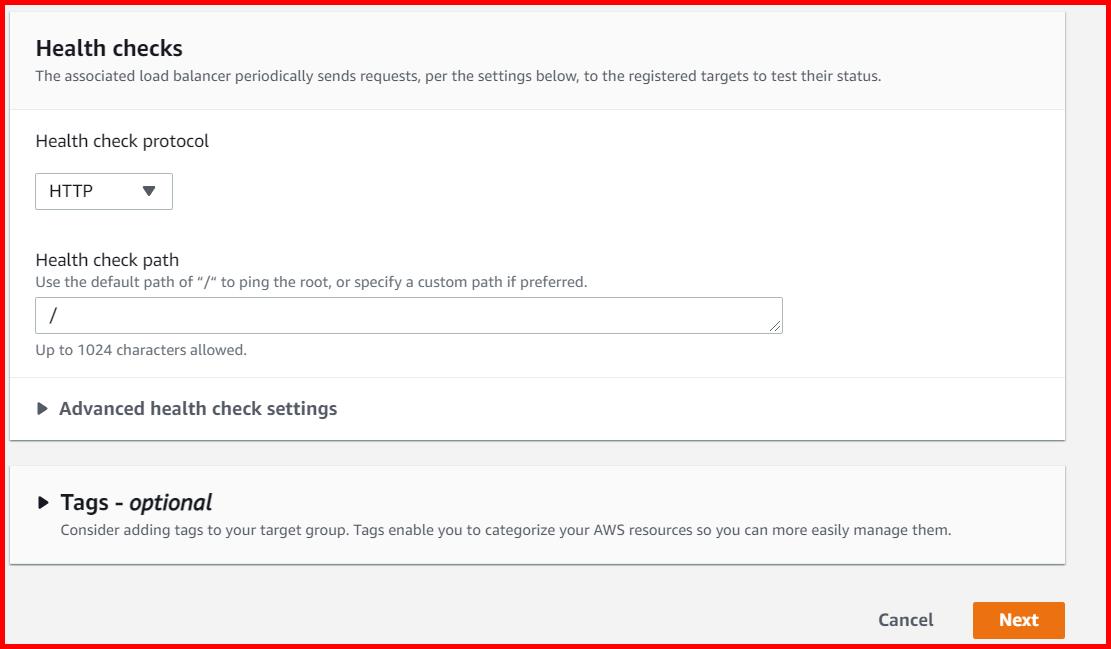

Scroll down to specify the Health checks. Click on the Next button.

Click to Enlarge

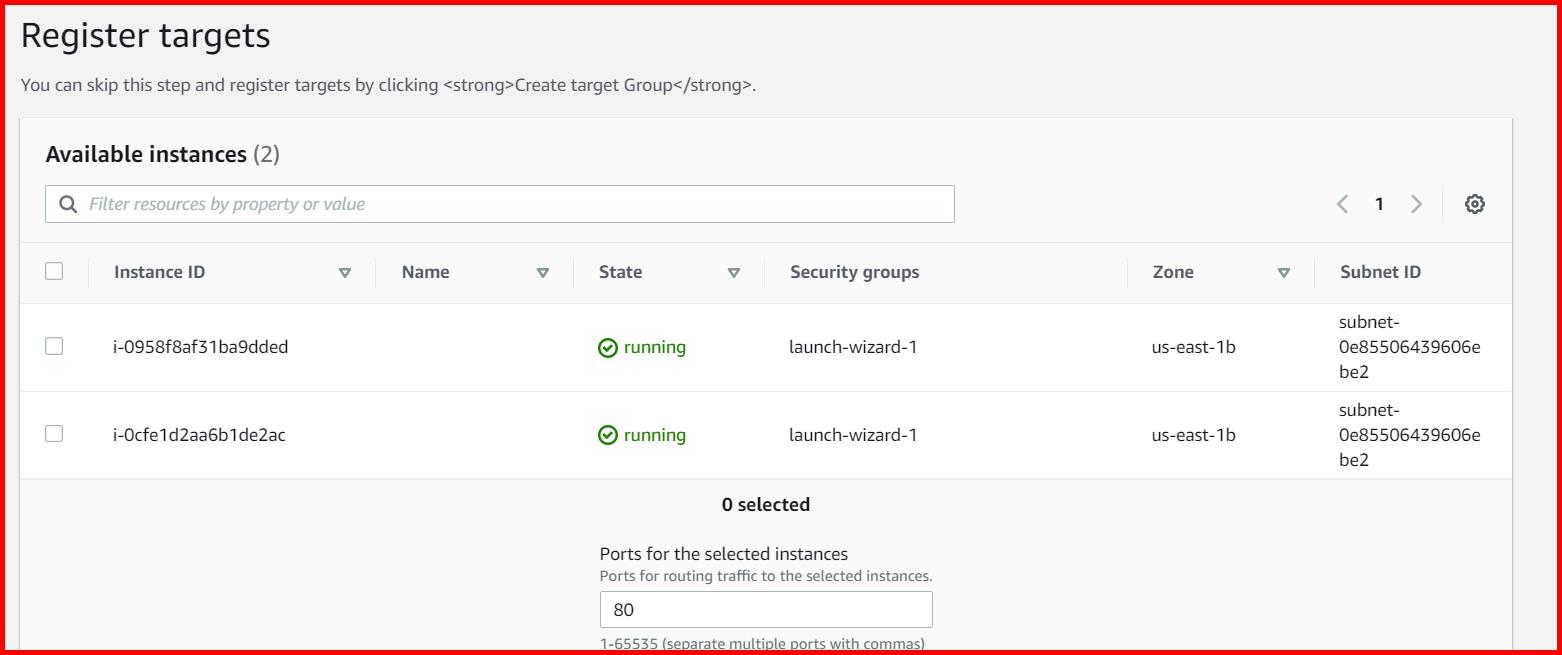

On the next screen, we can choose the Available instances.

Click to Enlarge

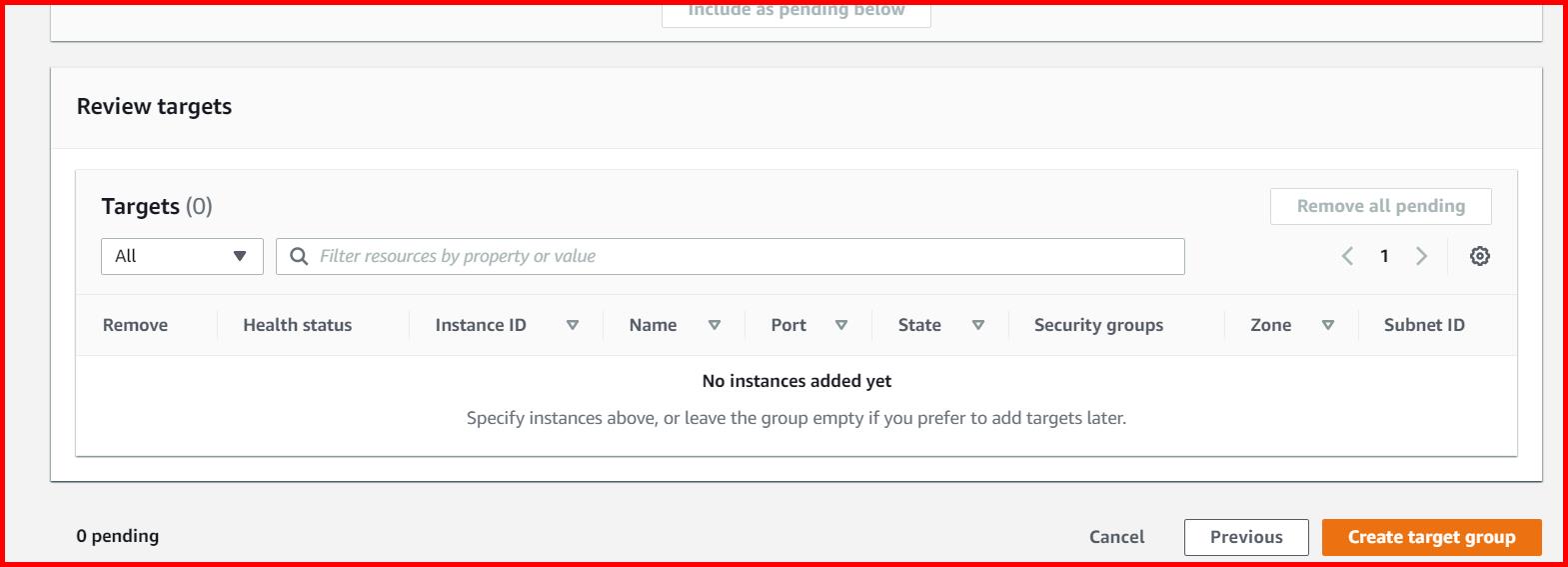

Finally, scroll down and click on the Create target group button.

Click to Enlarge

The target group has been created.
