Hierarchies In Amazon S3

In this article, we will discuss hierarchies in Amazon S3.

How Does S3 Maintain Hierarchy?

Unlike the file system in the operating system, the S3 has a flat structure and does not maintain a hierarchy. S3 maintains the hierarchy based on the naming convention of the S3 objects.

Naming Convention Of The S3 Object

There are 2 types of objects in the S3 bucket i.e., files and folders. Each S3 object consists of the following parts.

Prefix
Key name

Example

Consider the following hierarchy.

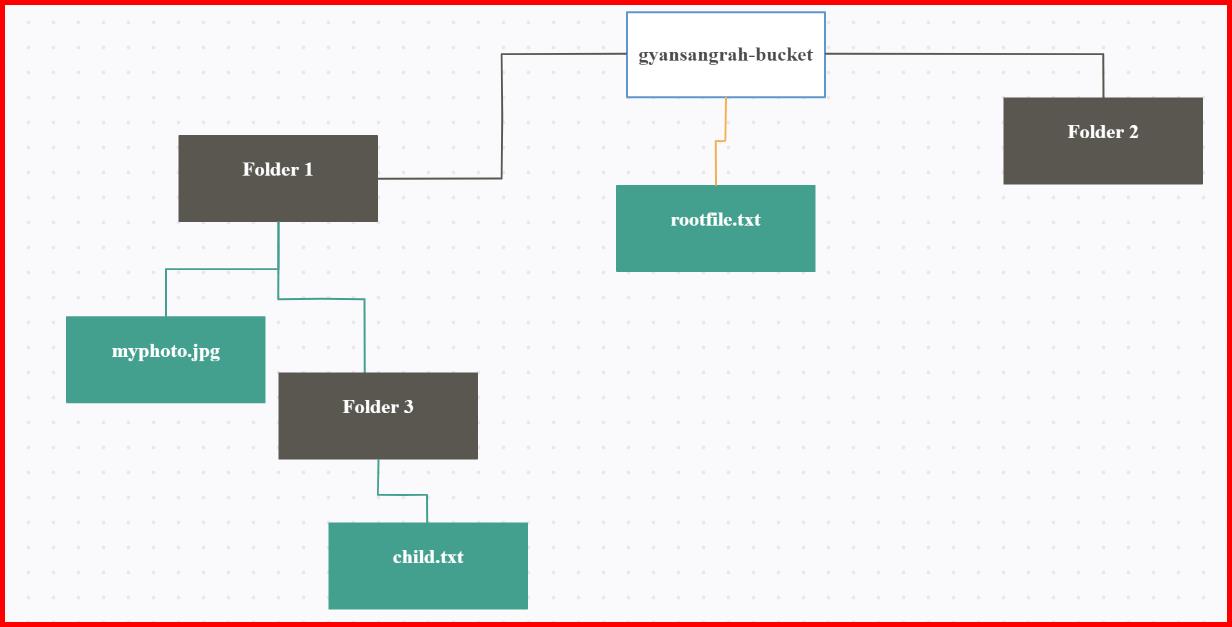

Picture showing the hierarchy of objects in S3 bucket

Click to Enlarge

Here, gyansangrah-bucket is the S3 bucket name.

Object Name	Prefix	Key name
Folder1	No prefix	Folder1/
rootfile.txt	No prefix	rootfile.txt
Folder2	No prefix	Folder2/
myphoto.jpg	Folder1/	myphoto.jpg
Folder3	Folder1/	Folder3/
Child.txt	Folder1/Folder3/	Child.txt
