Generate script for database objects using SSMS

In this article, we will generate script(s) for database objects like tables, views, stored procedures etc. using SQL Server Management Studio.

Database schema

For this article, I am using a database with some dummy tables. See the screen shot below

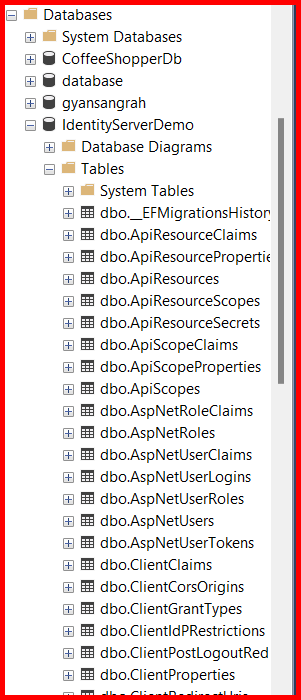

Picture showing the database and the tables inside the database

Click to Enlarge

Steps

For generating the script

1. Right click on the database, and go to ‘Tasks→ Generate Scripts…’

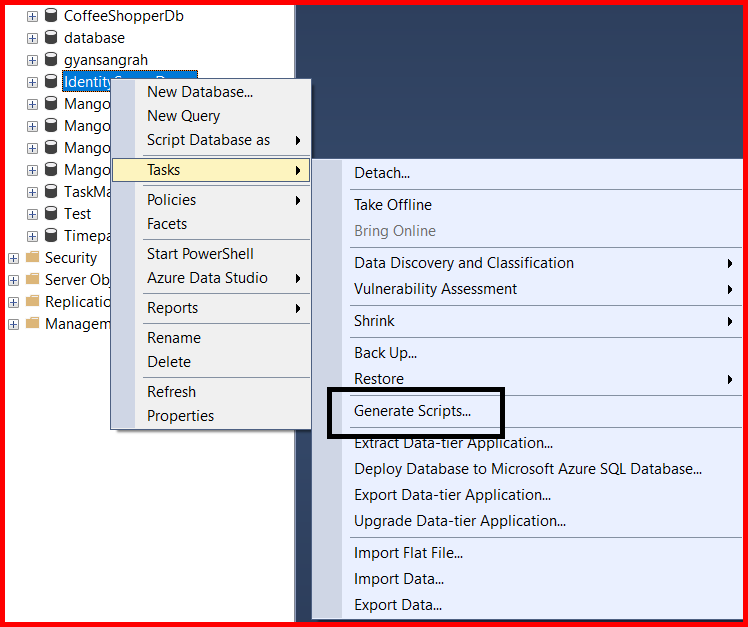

Picture showing the Generate Scripts... option inside the Task menu

Click to Enlarge

2. Following window appears on click of ‘Generate Scripts…’

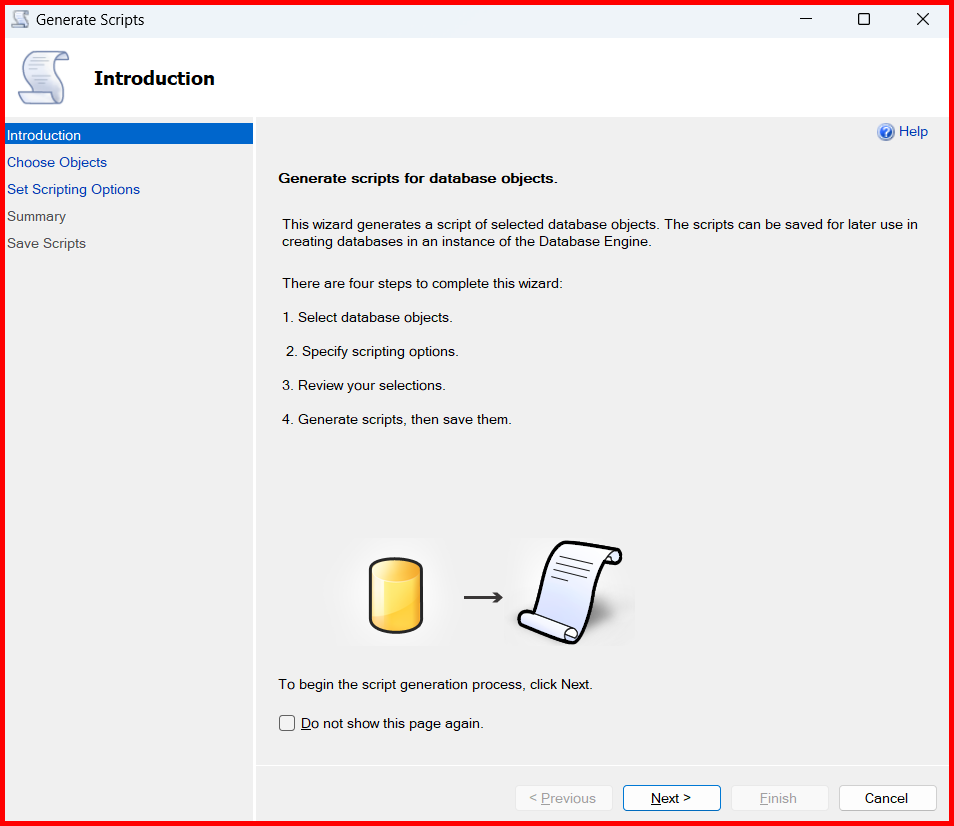

Picture showing the first screen of Generate and Publish Scripts wizard

Click to Enlarge

Click on next button.

3. Following window will appear

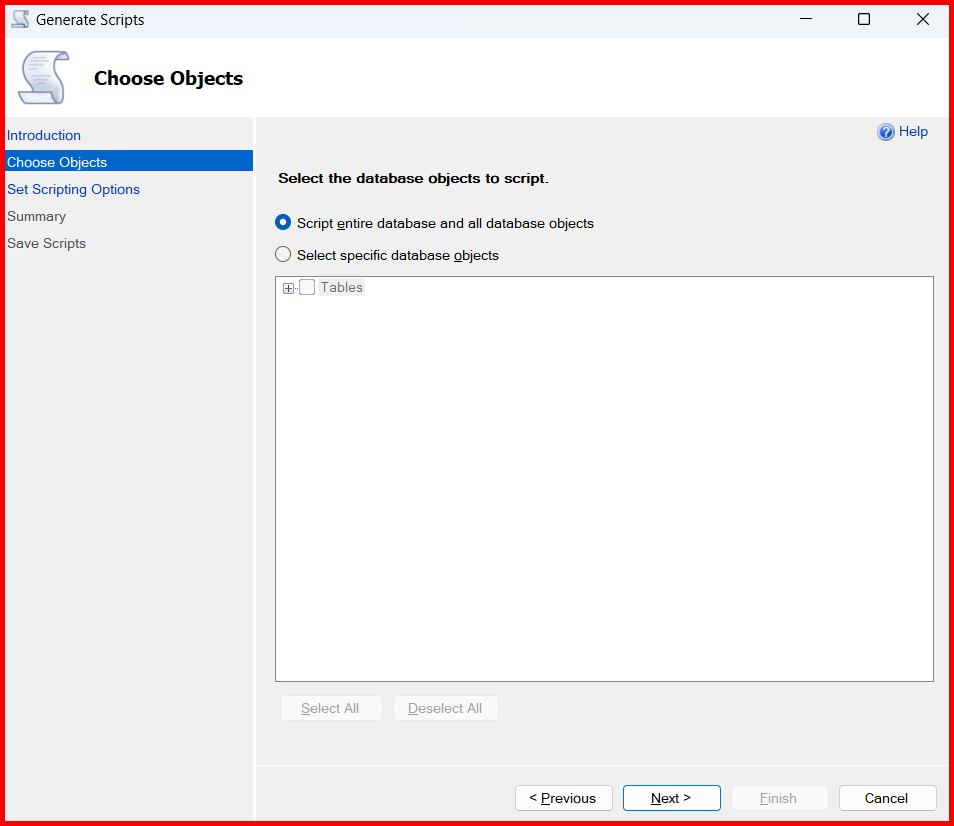

Picture showing the second screen of Generate and Publish Scripts wizard to select the object

Click to Enlarge

In the above window, you can select the first radio button i.e. ‘Script entire database and all database objects’ to generate the script for all database objects.

Or you can select the second radio button i.e. ‘Select specific database objects’, if you want to generate script(s) for the particular object(s).

Click on Next.

4. Following window will appear

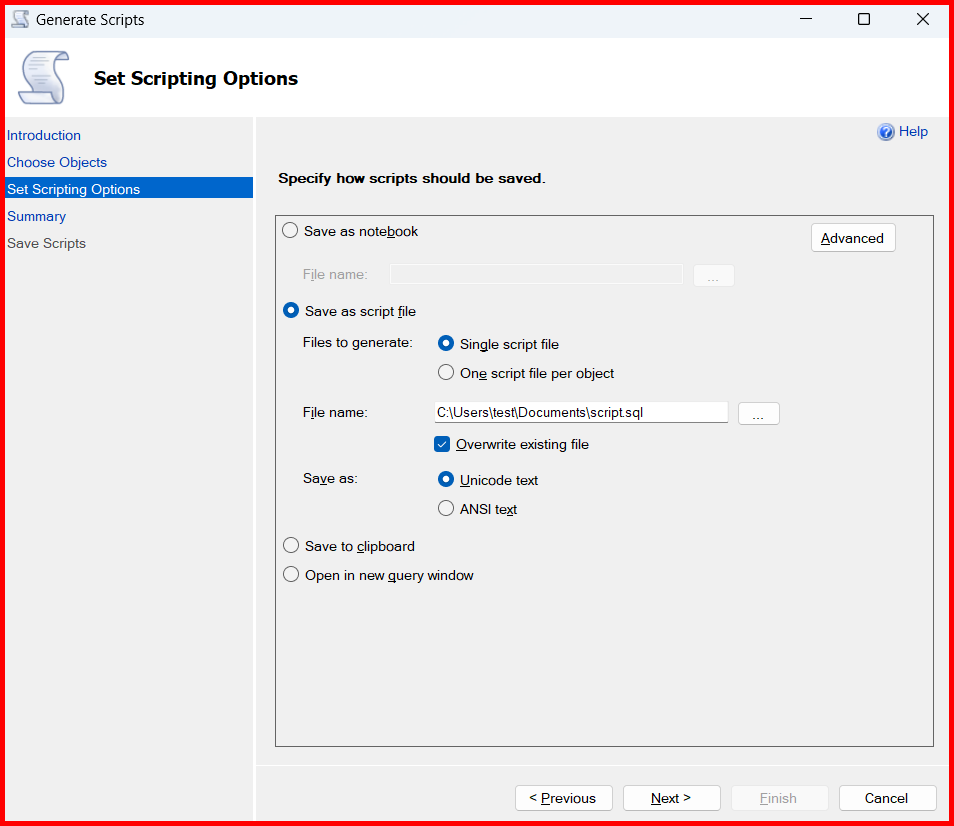

Picture showing the options for setting the path of the generated script

Click to Enlarge

In the above window, you can select either of these options

   1. Save the generated script as file

   2. Copy it on clipboard

   3. Show it in new query window.

   4. Now click on Next and following window will appear

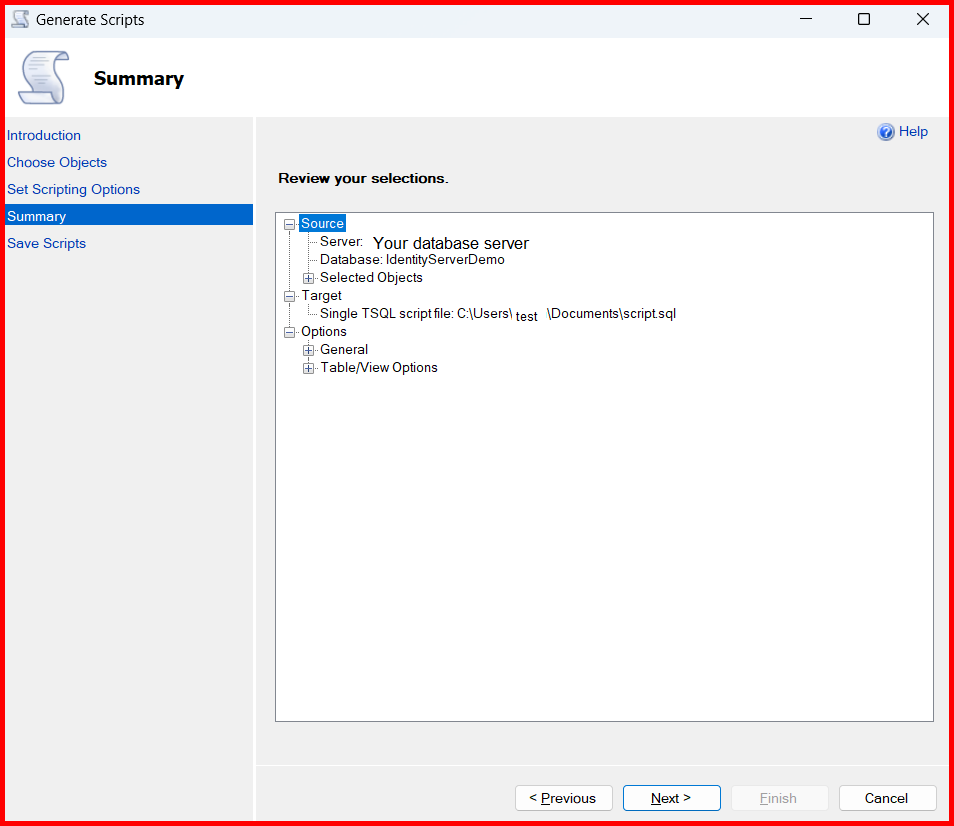

Picture showing the summary screen of the Generate and Publish Scripts wizard

Click to Enlarge

5. Click Next and scripts will be generated for the database objects as shown in figure below

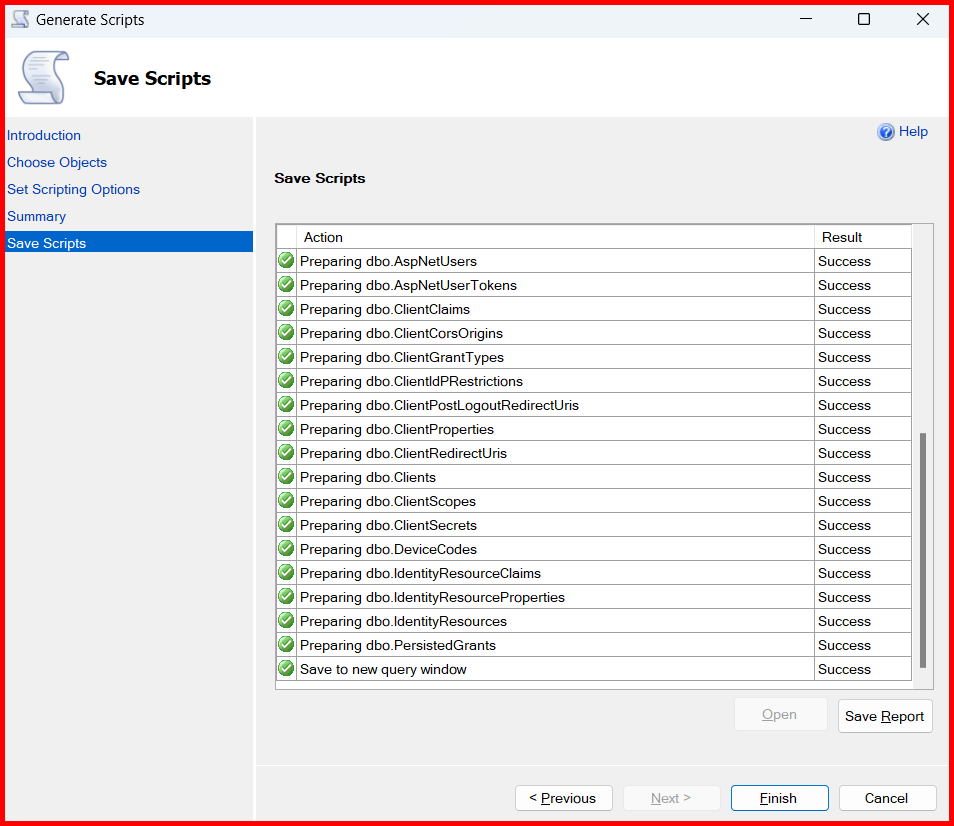

Picture showing the last screen of the Generate and Publish Scripts wizard to show the progress of the generated script

Click to Enlarge

6. Click on Finish to complete the process. A script file will be created on specified path

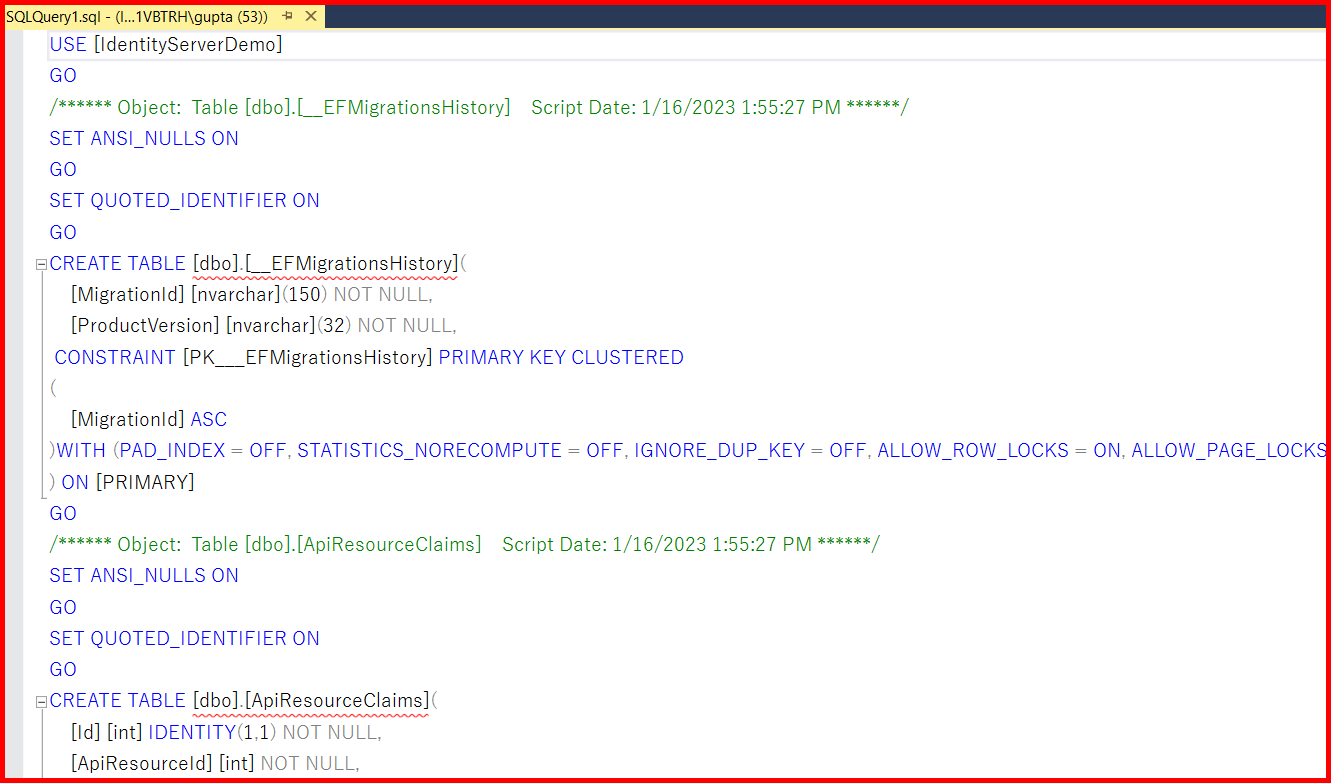

Picture showing the generated script in the query window of SSMS

Click to Enlarge

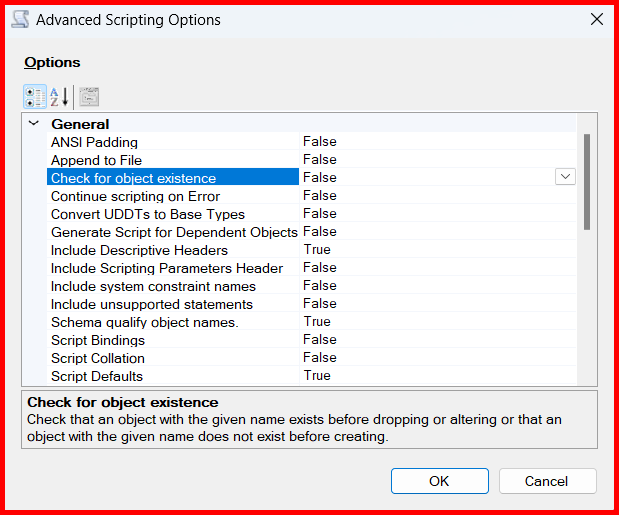

There is a ‘Advanced’ button that will open ‘Advanced Scripting Options’ window as shown in figure below

Click to Enlarge

There are many options in this window, but we will only talk about few options

   1. Script Drop and Create – There are three options

      a. Create – When you want to generate ‘create’ script only for database objects

      b. Drop – When you want to generate ‘drop’ script only for database objects.

      c. Drop and Create – When you want to generate ‘drop and create’ script for database objects.

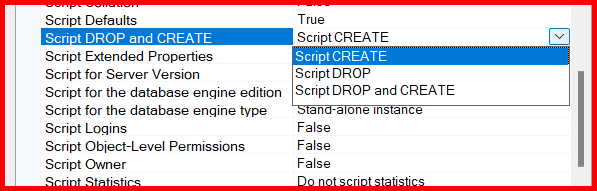

Picture showing setting the property of Script Drop and Create attribute

Click to Enlarge

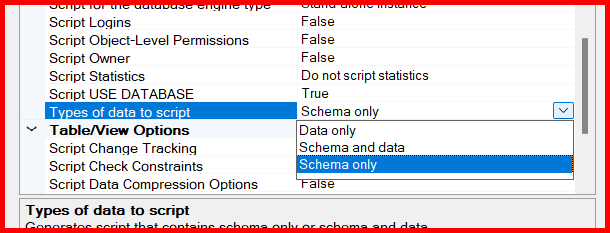

   2. Types of data to script – There are three options

      a. Data only – When you only want to generate scripts for data only. This option is only valid for tables.

      b. Schema and Data – When you want to generate scripts for schema of data objects and data of tables.

      c. Schema only – When you want to generate scripts for schema only.

Picture showing setting the property of Script Check Constraints attribute

Click to Enlarge

3. Script Indexes – It means while generating the script for tables, you also want to create a script for indexes as well then you can select this option to true.

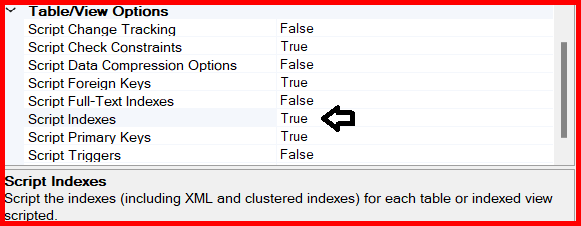

Picture showing setting the property of Script indexes attribute

Click to Enlarge

Posted By -	Karan Gupta

Posted On -	Friday, April 20, 2018
