DynamoDB Accelerator In AWS

In this article, we will discuss the DynamoDB accelerator in AWS.

Purpose

DynamoDB accelerator is a fully managed, highly available in-memory cache for DynamoDB for improving performance.

How Does DAX Work?

DAX is a bridge between the application and DynamoDB. DAX provides frequently accessed data to the application.

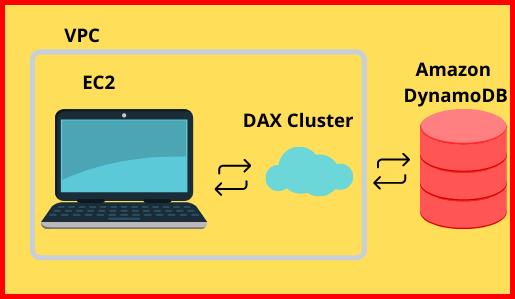

Picture showing how the DAX works in AWS

Click to Enlarge

Creation Of DAX Cluster

First, create a DynamoDB table. Go to DynamoDB → DAX → Clusters.

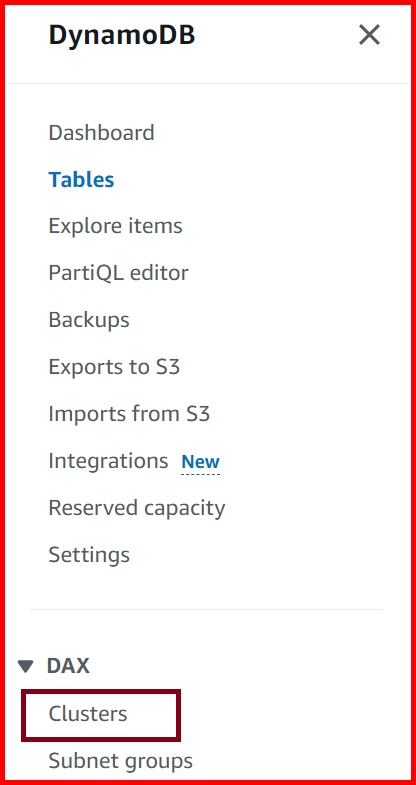

Picture showing the Clusters option inside DAX submenu

Click to Enlarge

A screen will appear to create the DAX cluster. Click on the Create cluster button.

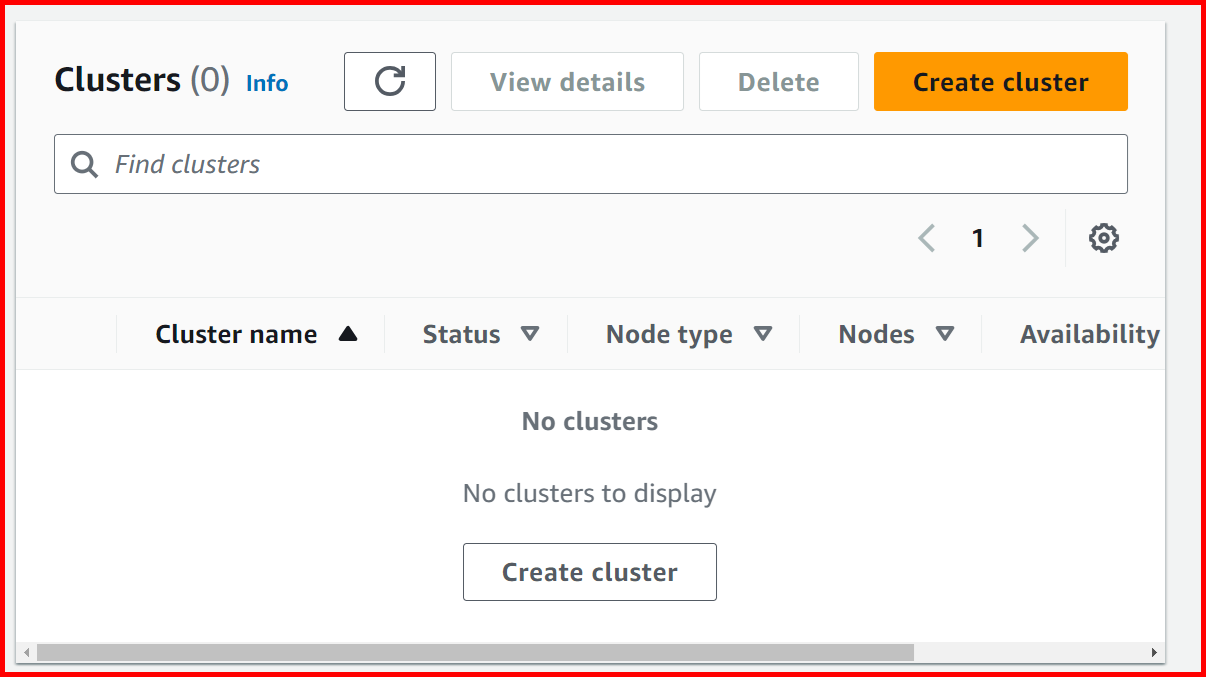

Picture showing the Create cluster button for creating the new cluster

Click to Enlarge

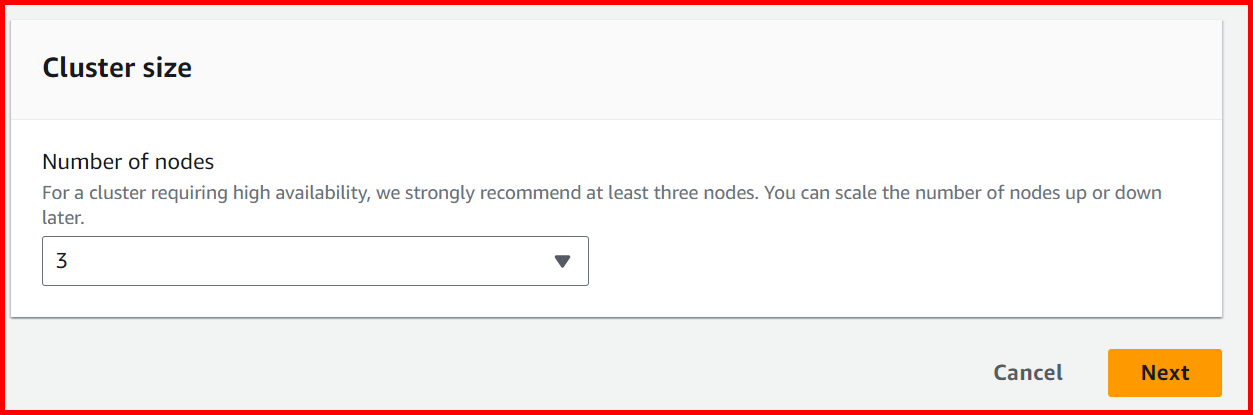

A screen will appear to enter the information. Enter the Cluster name, and select Node families, Node types, and Cluster size. Click to proceed on the Next button.

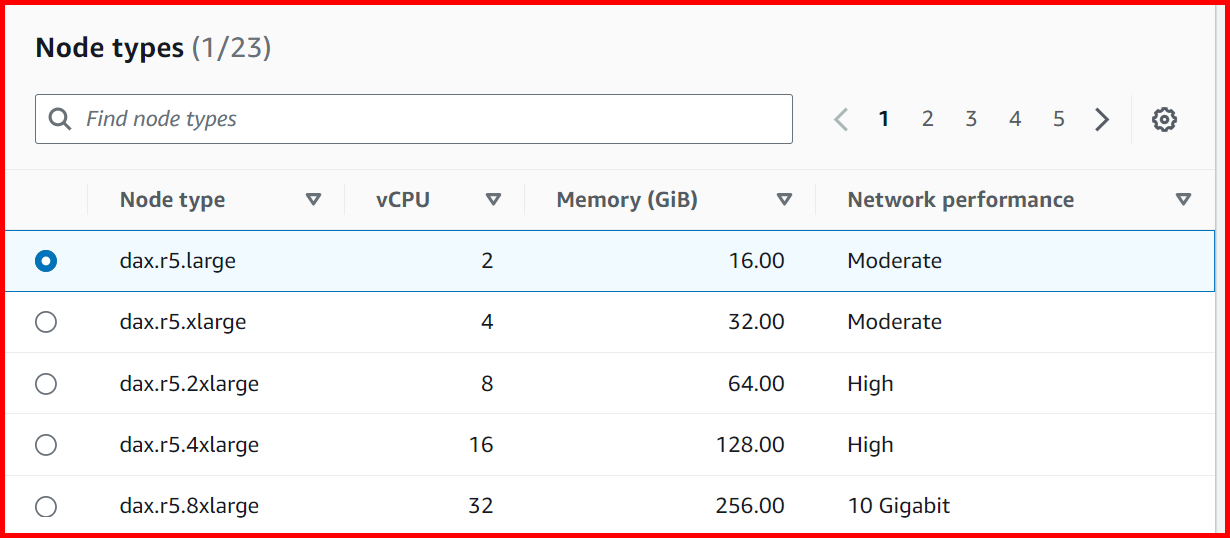

Picture showing the Create cluster screen for entering cluster name, node families and cluster size

Click to Enlarge

Click to Enlarge

In the next screen, you can create the Subnets and fill in other information. Click on the Next button.

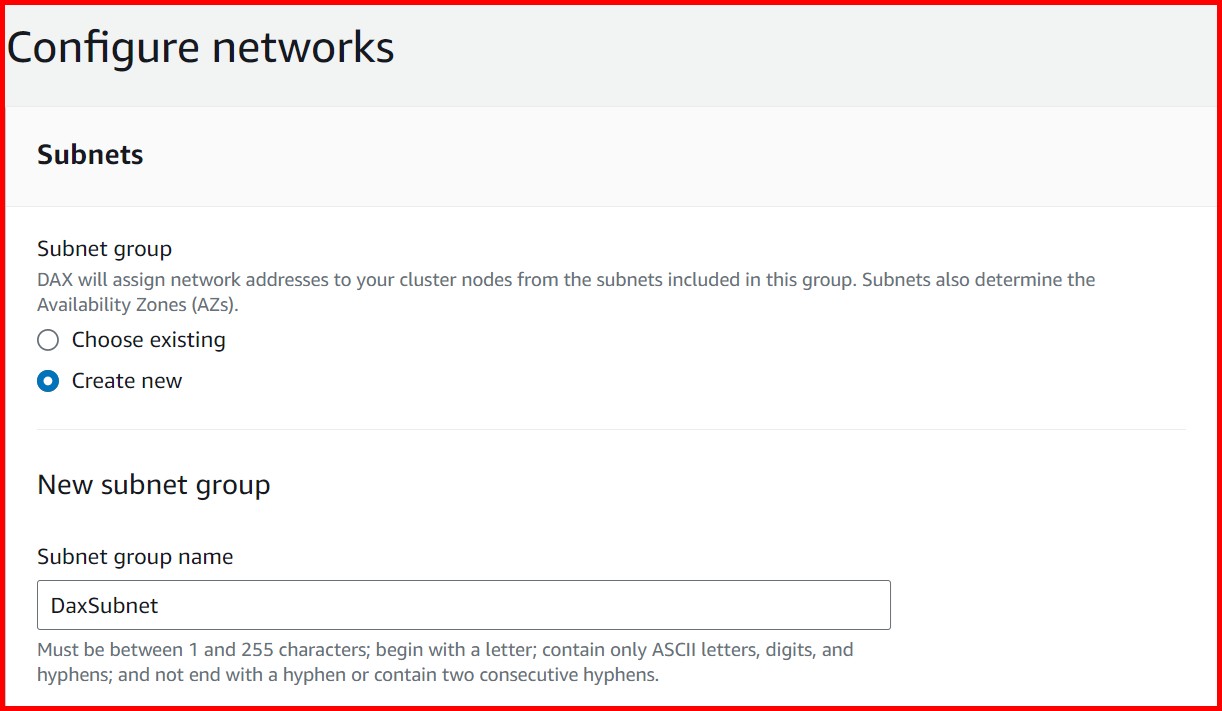

Picture showing the second step of the create cluster screen

Click to Enlarge

On the third screen, you can select the table. Click on the Next button.

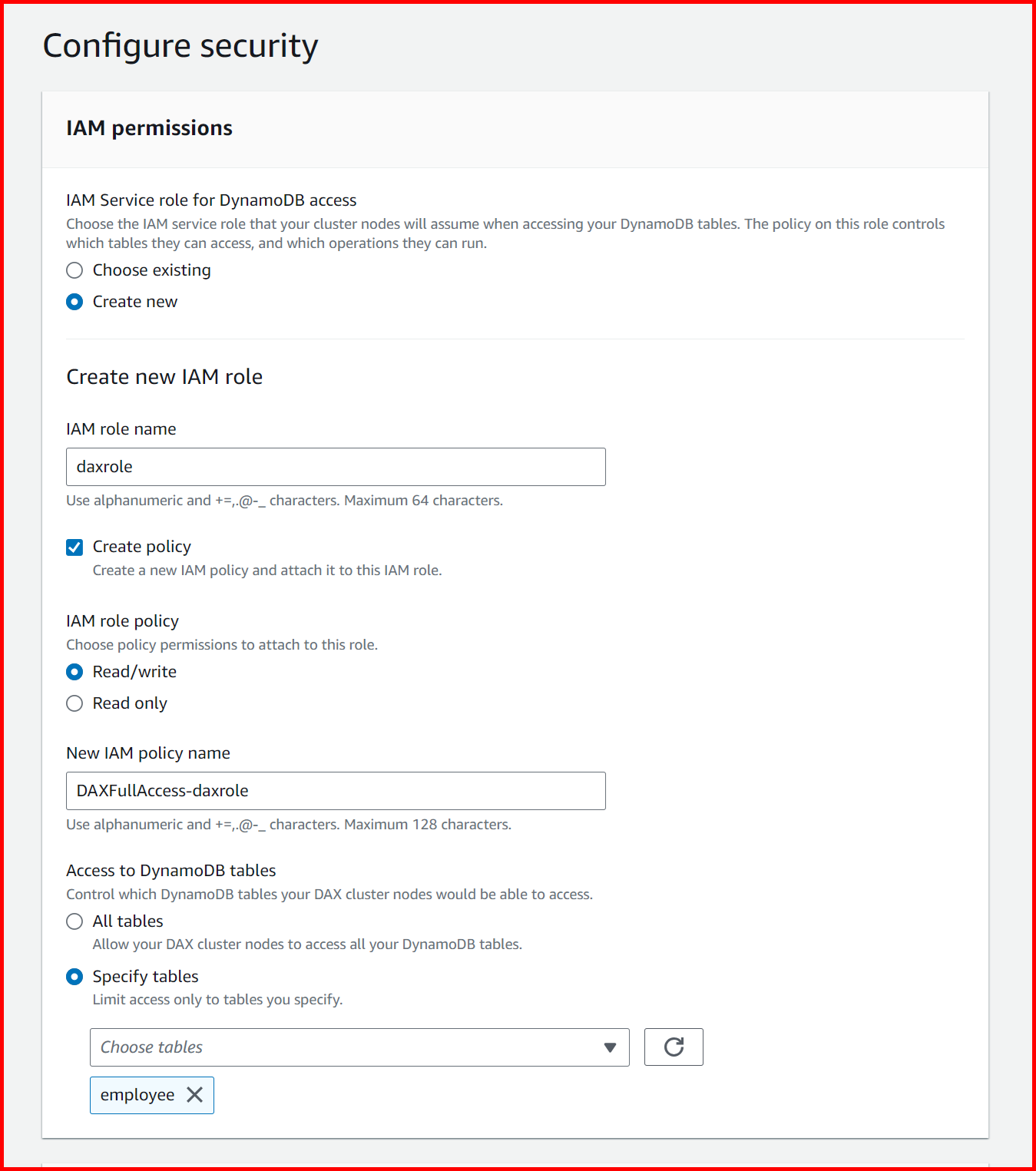

Picture showing the third step of the create cluster screen for selecting the dynamo db tables

Click to Enlarge

In the next screen, you can specify advanced settings. Click on the Next button.

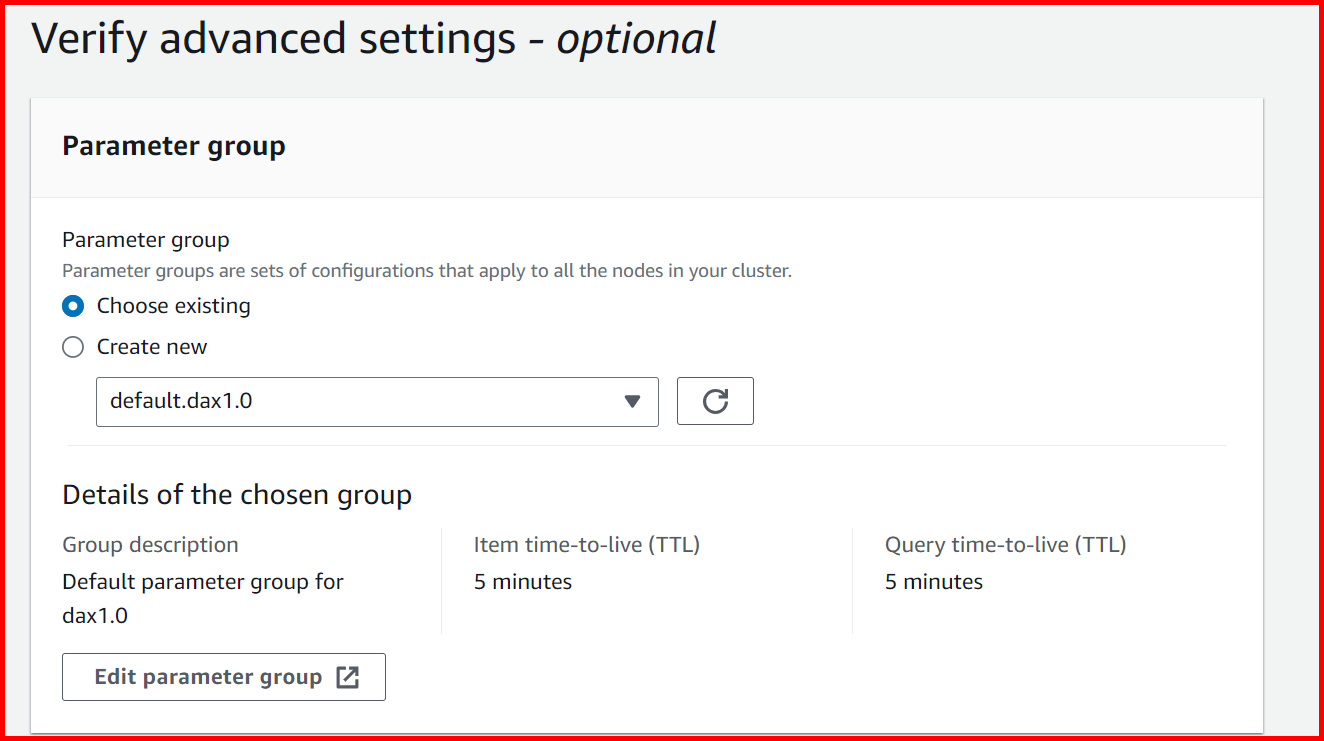

Picture showing the fourth step of the create cluster screen

Click to Enlarge

You can review the information on the last screen and click on the Create cluster button.

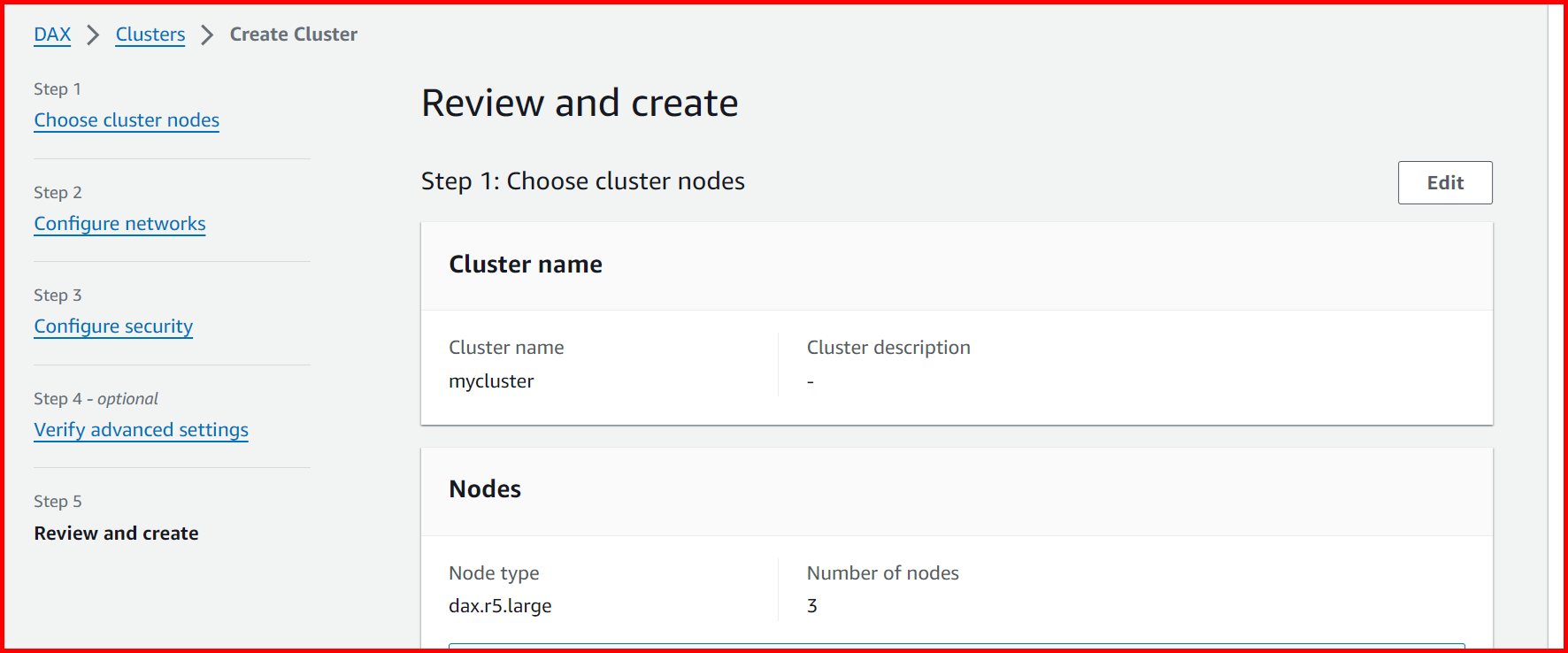

Picture showing the screen to review the cluster information

Click to Enlarge

The cluster is created.
