Cross Region Replication For S3 Buckets In AWS

In this article, we will perform cross-region replication for S3 buckets in AWS.

Purpose

The purpose of the cross region replication is to copy the file(s) from the source bucket to the designation bucket asynchronously.

Prerequisite For CRR (Cross Region Replication)

Both source and the destination buckets should comply these 2 conditions: -

Both buckets should be public
Bucket versioning should be enabled for both the buckets

Creation Of Buckets

First, create the source bucket.

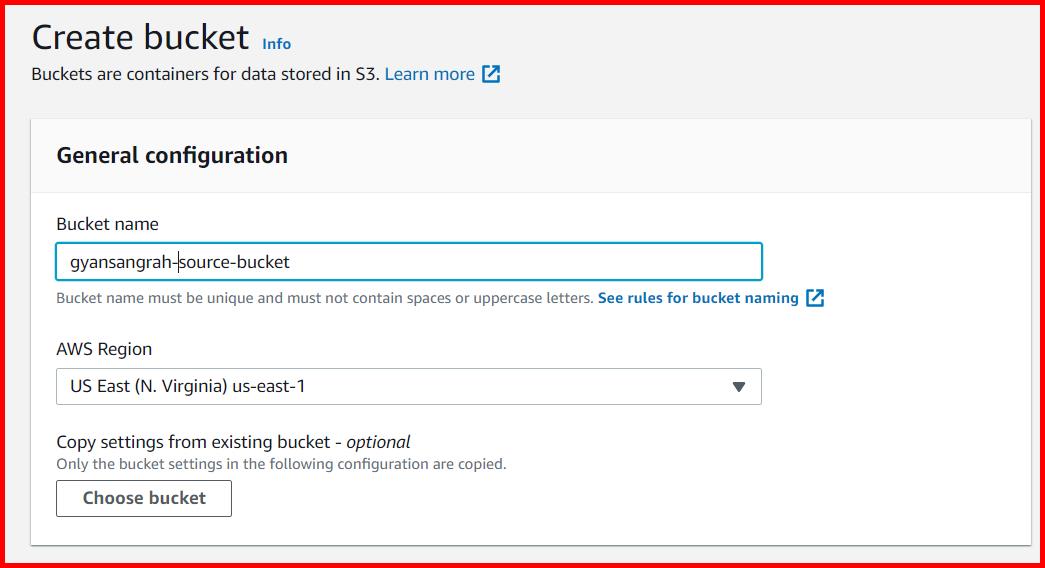

Picture showing the create bucket screen for creating the new bucket

Click to Enlarge

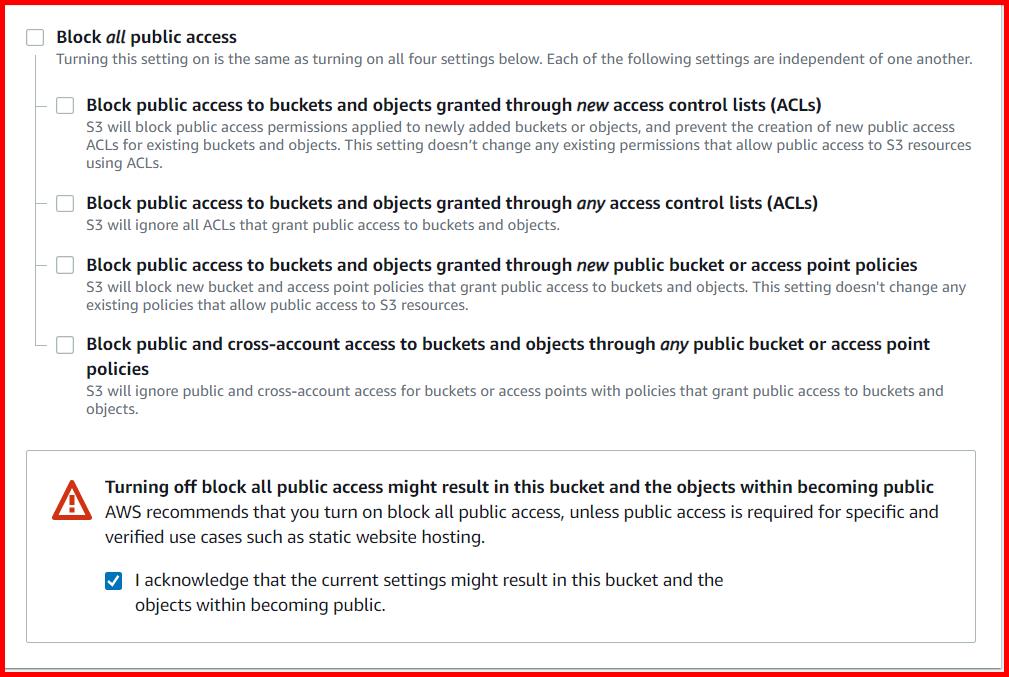

Scroll down and make the bucket public.

Picture showing unchecking the checkbox - Block all public access to make the bucket public

Click to Enlarge

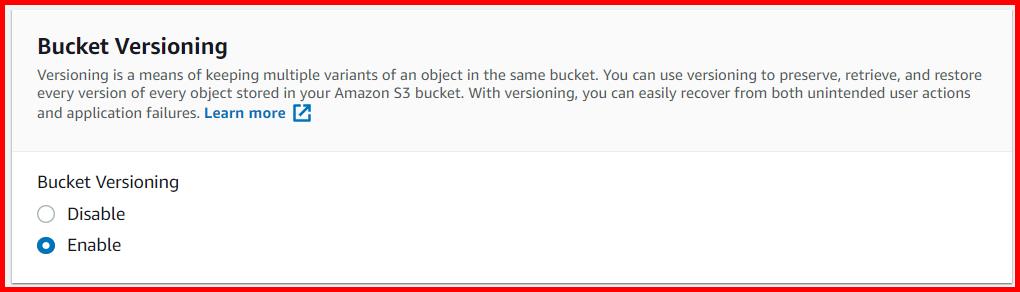

Scroll down further and enable bucket versioning.

Picture showing enabling the bucket versioning

Click to Enlarge

Scroll to the bottom and click on the Create bucket button to complete the bucket creation. In the similar way, create the destination bucket.

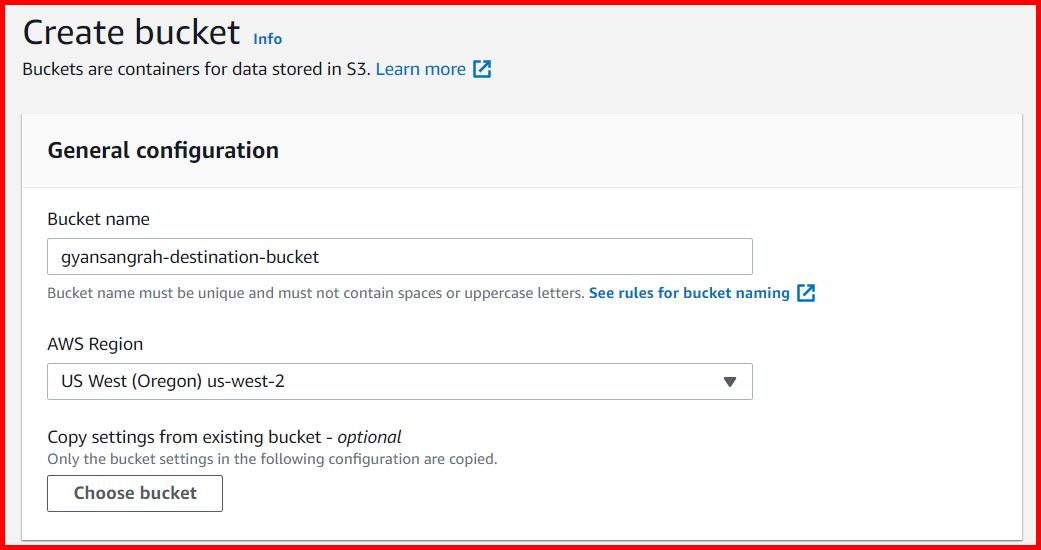

Picture showing creating the destination bucket for CRR

Click to Enlarge

Make the bucket public and enable bucket versioning as we did for the source bucket. Once you have created the destination bucket, both source and destination buckets are ready with you.

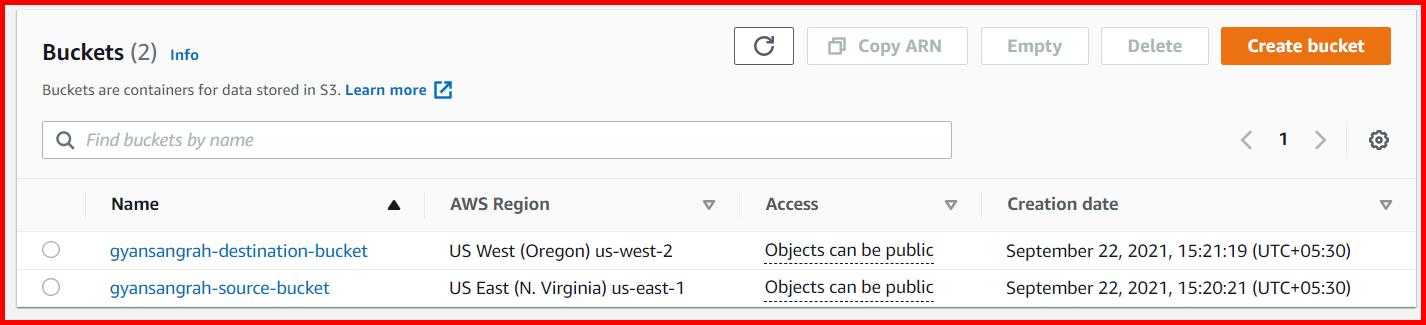

Picture showing the source and the destination bucket created

Click to Enlarge

Add Replication Rule

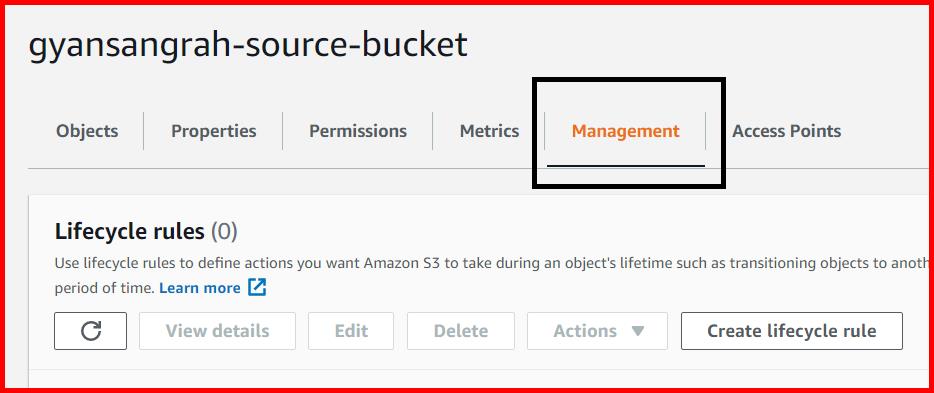

To add a replication rule, click on the Management link inside the source bucket.

Picture showing the Management tab in the bucket detail screen

Click to Enlarge

Scroll down to the Replication rules section.

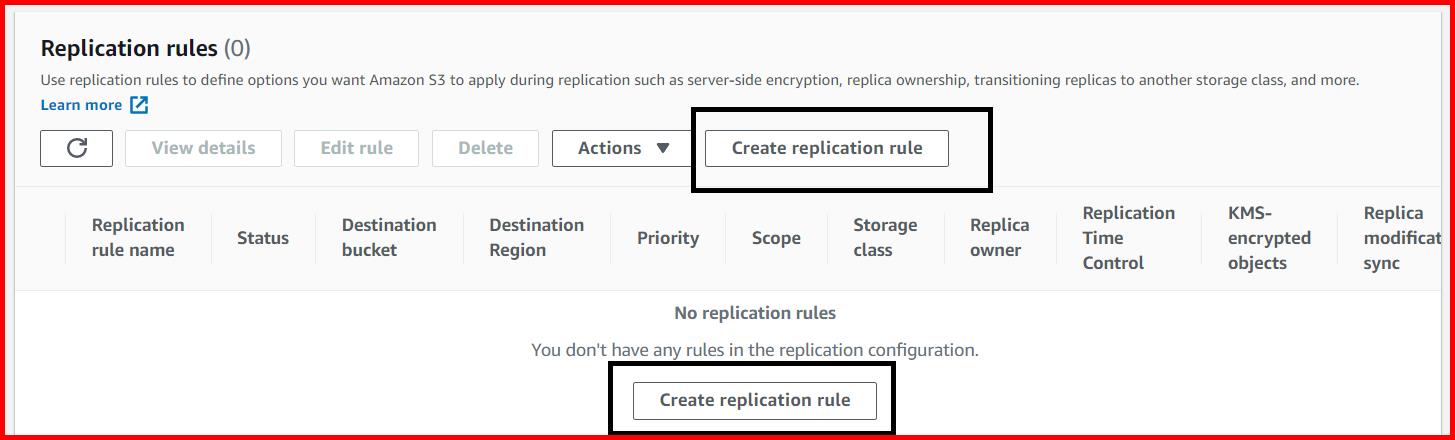

Picture showing the Replication rules button for adding the new rule

Click to Enlarge

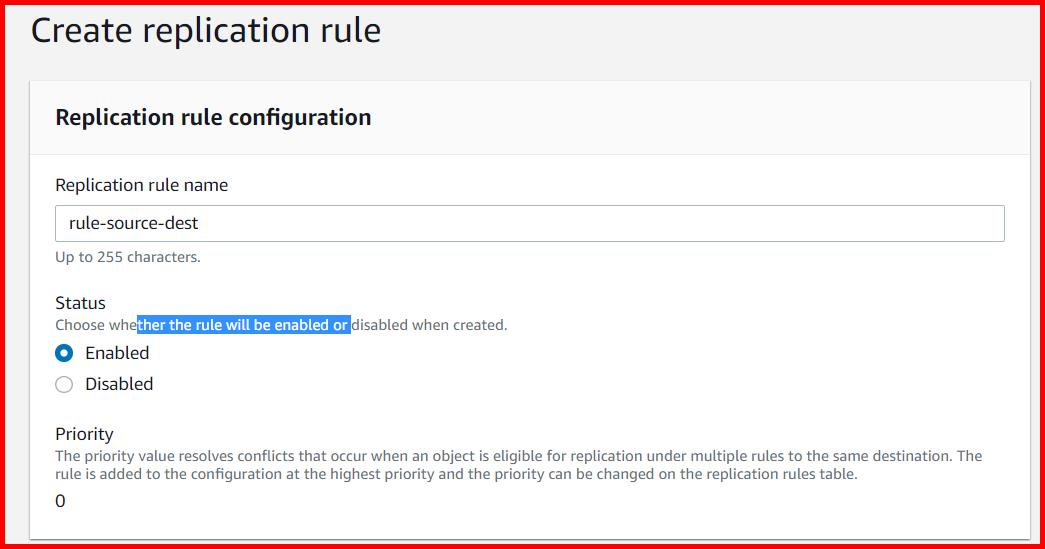

Click on the Create replication rule button. A screen appears where you can enter the Replication rule name.

Picture showing the create replication screen in aws

Click to Enlarge

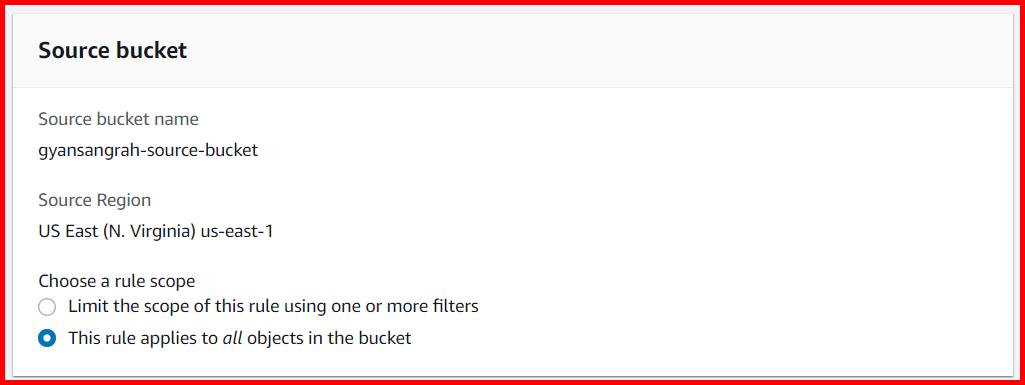

Scroll down to select the source bucket.

Picture showing the section for the source bucket

Click to Enlarge

Further scroll down to select the destination bucket.

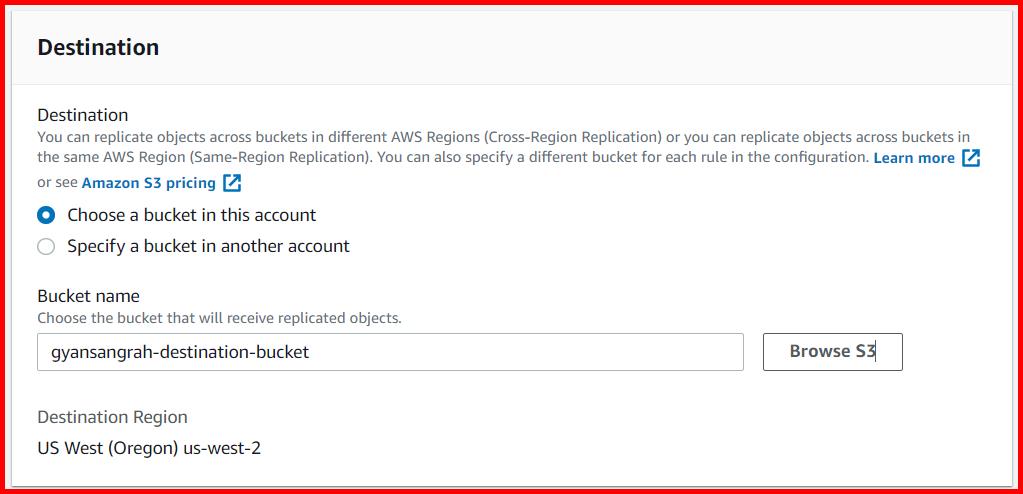

Picture showing selecting the destination bucket

Click to Enlarge

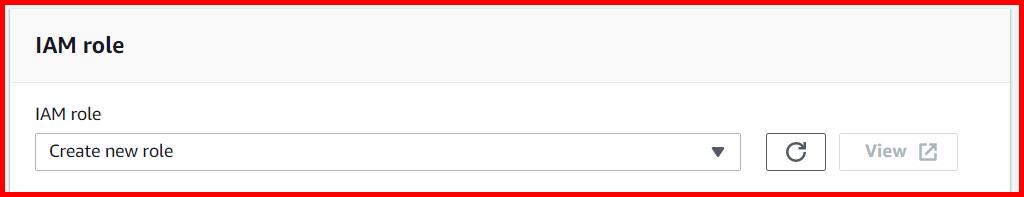

Scroll down to select the IAM role. Select the option Create new role.

Click to Enlarge

The above section will create a new role in the IAM section.

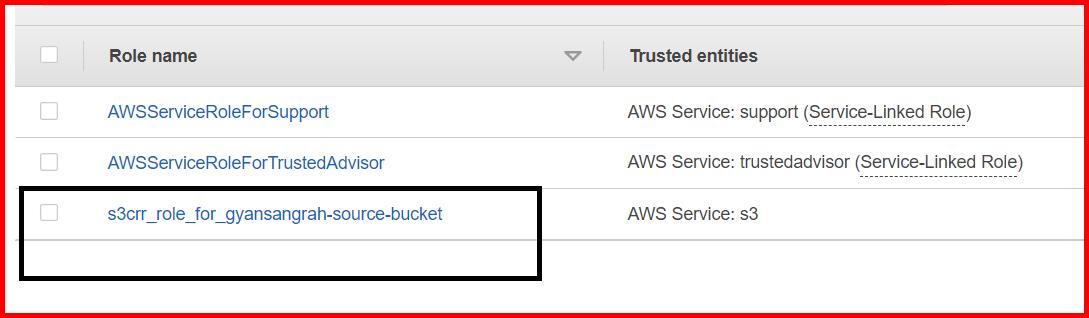

Picture showing creating the new IAM role in the roles screen

Click to Enlarge

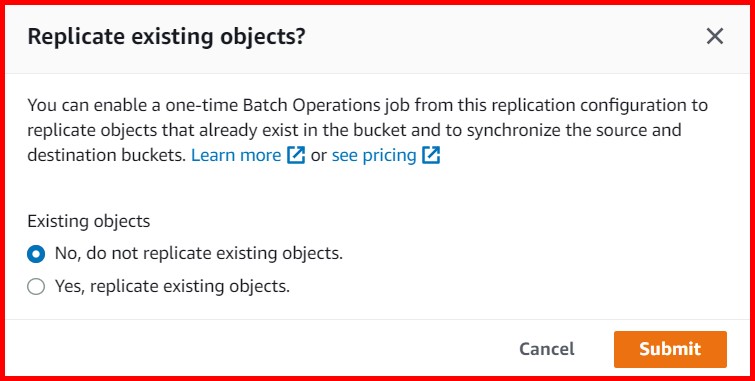

Scroll to the bottom and click on the Save button to save the rule. A popup window will appear to confirm if you want to apply the rule on the existing buckets or not. Select the No, do not replicate existing objects option, and click on the Submit button.

Picture showing the confirmation message if the rule is applied to the existing bucket or not

Click to Enlarge

CRR In Action

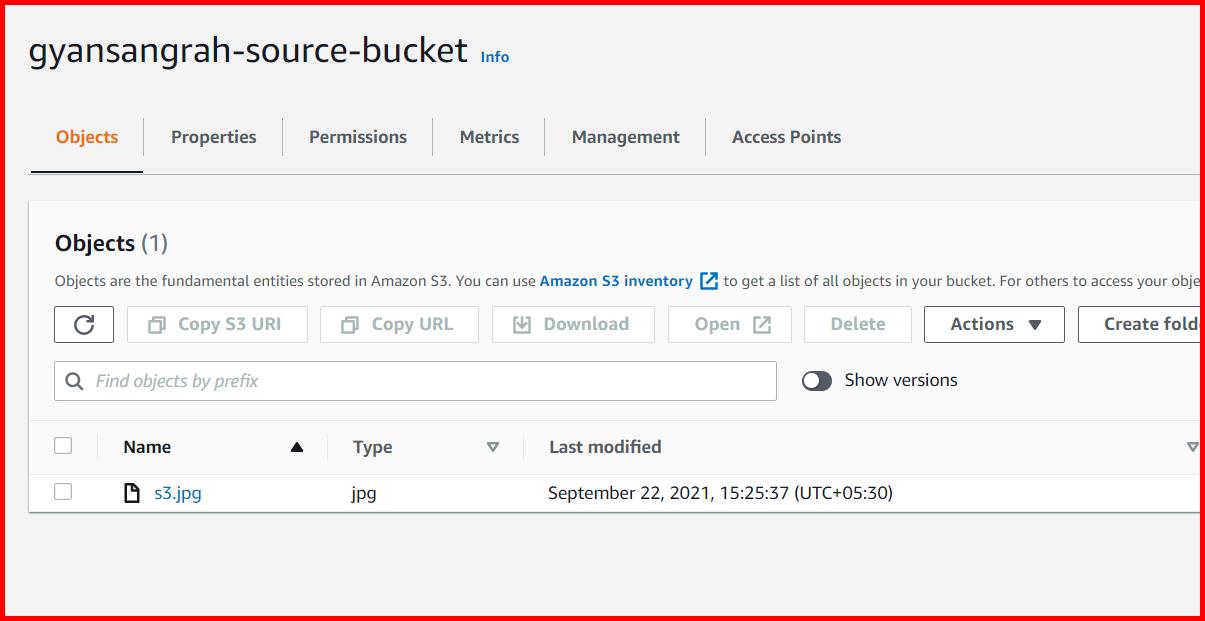

Upload a file in the source bucket.

Picture showing image file uploaded on the source bucket

Click to Enlarge

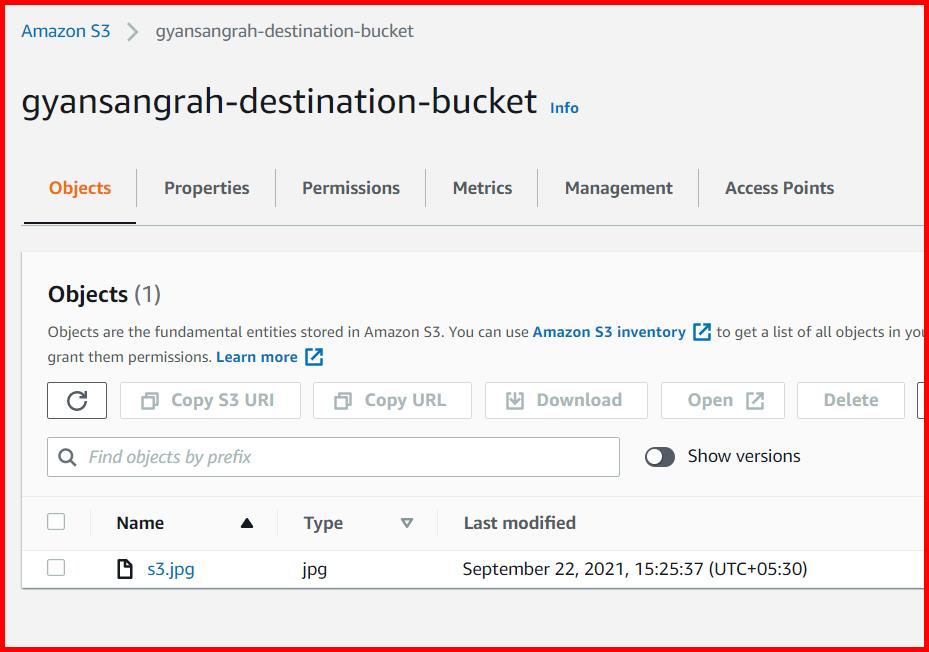

After some time, the file gets copied to the destination bucket.

Picture showing the image file copied on destination bucket using CRR

Click to Enlarge
