AWS Internet Gateway

In this article, we will discuss the AWS internet gateway.

Purpose

An internet gateway is a component that allows communication between VPC and the internet.

How To Create An Internet Gateway?

To create an internet gateway, search the word internet gateway in the search box. Click on the Internet gateway service in the search result.

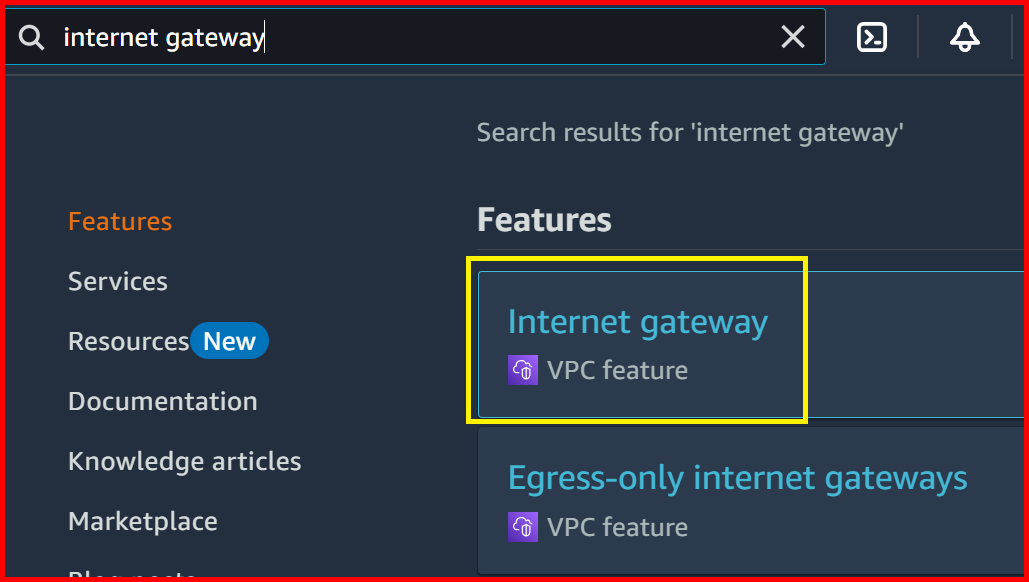

Picture showing the internet gateway option in the search result

Click to Enlarge

In the Internet gateways screen, click on the Create internet gateway button.

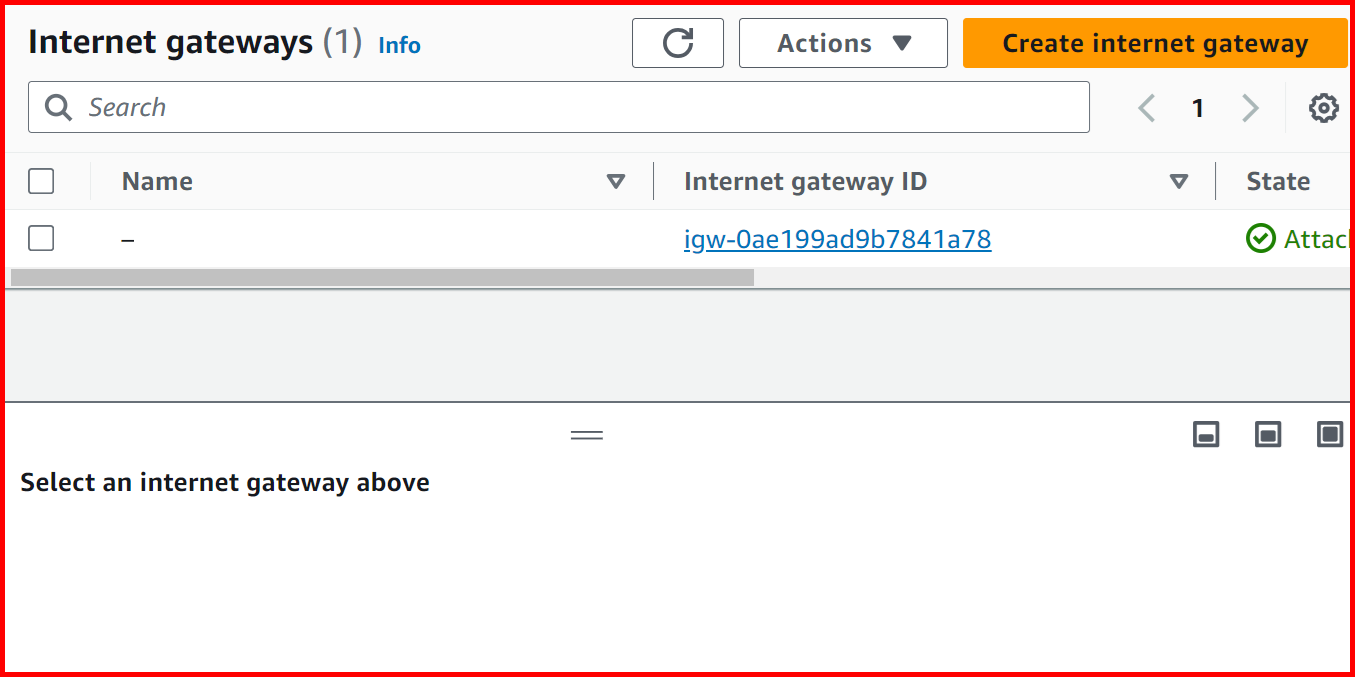

Picture showing the list of internet gateways in AWS console

Click to Enlarge

The Create internet gateway screen will appear. Enter the Name tag and click on the Create internet gateway button at the bottom of the screen.

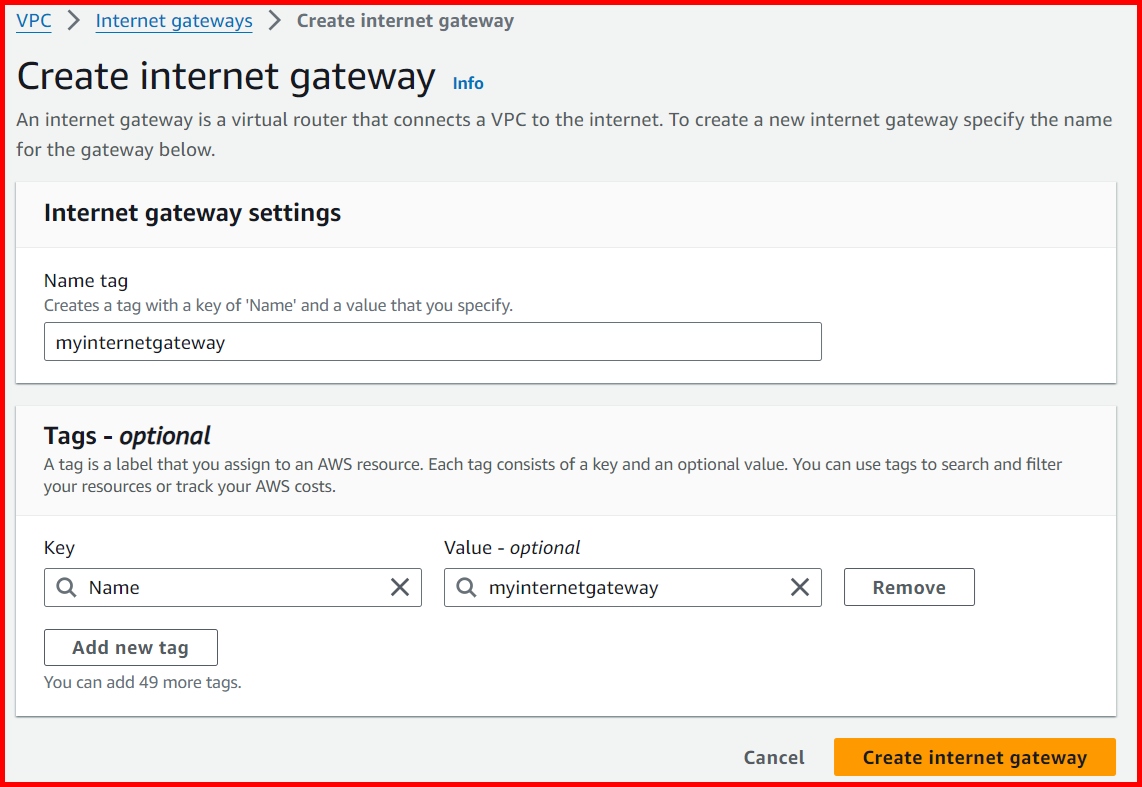

Picture showing the create internet gateway screen in AWS console

Click to Enlarge

How To Attach An Internet Gateway With VPC?

Once the internet gateway is created, the state of the internet gateway is Detached as there is no VPC attached to it.

Picture showing the internet gateway in the detached state

Click to Enlarge

To attach the VPC, select the internet gateway and click on Actions → Attach to VPC.

Picture showing the Attach to VPC option for attaching the VPC to internet gateway

Click to Enlarge

In the Attach to VPC screen, select the VPC and click on the Attach internet gateway button.

Picture showing selecting the VPN for attaching to the internet gateway

Click to Enlarge

The internet gateway is attached to VPC and the state of the internet gateway will be Attached.

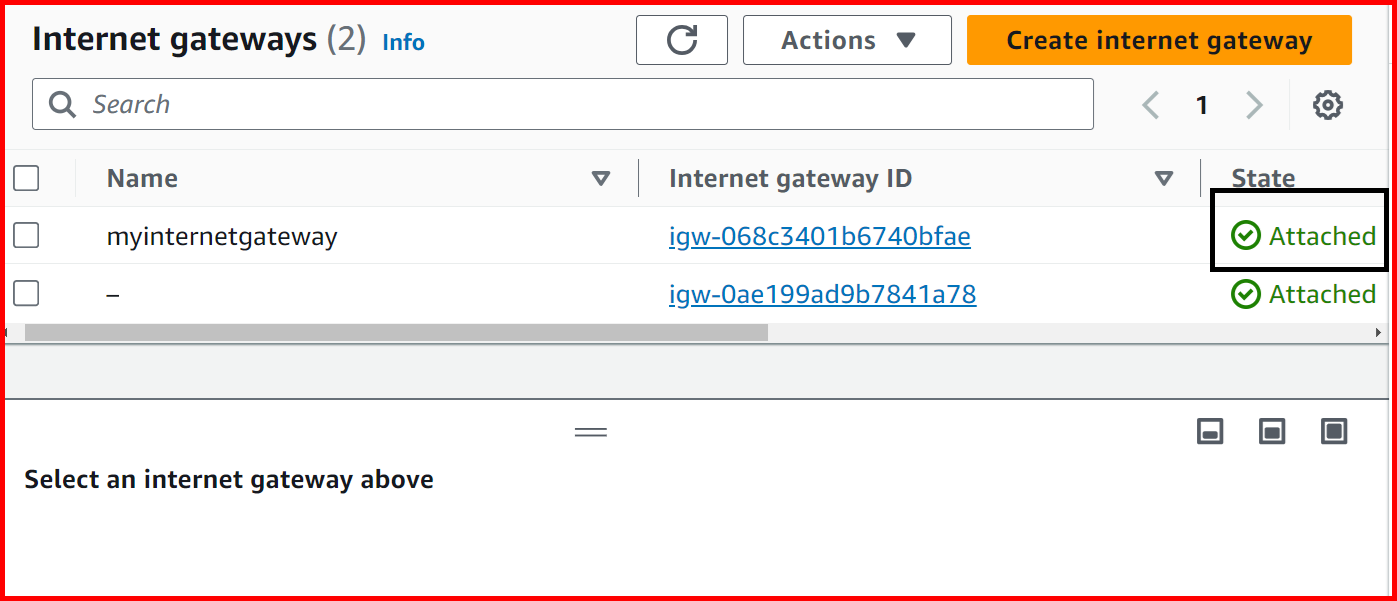

Picture showing the internet gateway in attached state

Click to Enlarge
