CloudFormation In AWS

In this article, we will discuss CloudFormation in AWS.

Purpose

Consider an example, where you have a requirement for creating the same infrastructure elements like S3 bucket, EC2, load balancer etc. for the client. You have 2 options to accomplish the task: -

Create the same infrastructure components manually everywhere
Use CloudFormation

The CloudFormation is a service that allows you to create/update/delete the AWS infrastructure using the template.

Different Components Of CloudFormation

Component	Description
Templates	The JSON or YAML text file that contains the instructions for building out the AWS resources
Stacks	The entire environment described by the template and created, updated, and deleted as a single unit
StackSets	AWS CloudFormation StackSets extends the functionality of stacks by enabling you to create, update, or delete stacks across multiple accounts and regions with a single operation
Change Sets	A summary of proposed changes to your stack that will allow you to see how those changes might impact your existing resources before implementing them

Steps

In this article, we will work on the following steps: -

Create and save the template
Create a stack with the template

So, let us get started.

Create And Save The Template

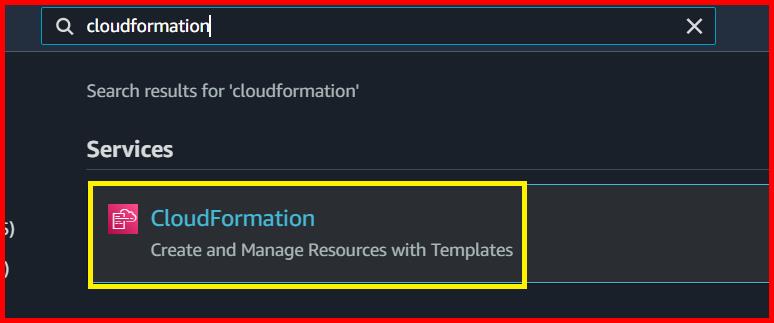

First, search the word cloudformation in the search box. Click on the CloudFormation services from the search result.

Picture showing the cloudformation service in the search result of the AWS console

Click to Enlarge

The CloudFormation screen will appear. Click on the Create stack button.

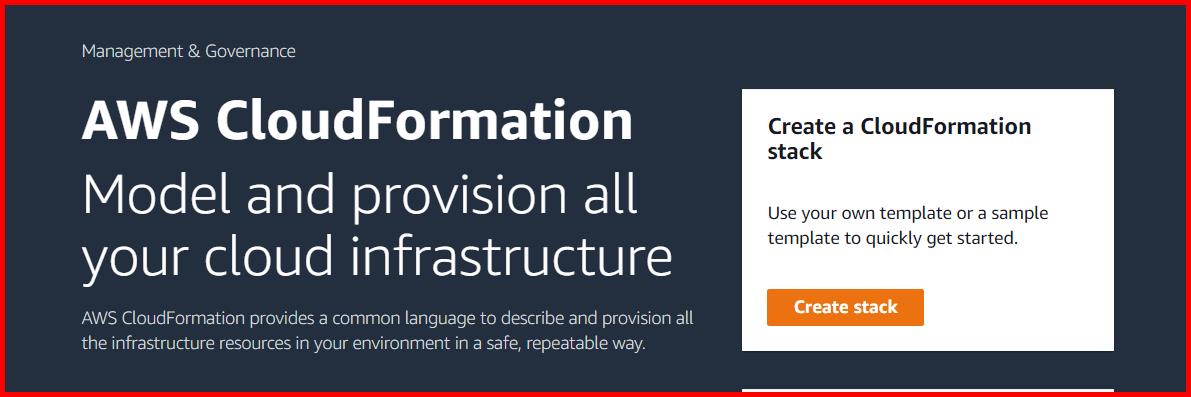

Picture showing the create stack button for creating the new infrastructure automation

Click to Enlarge

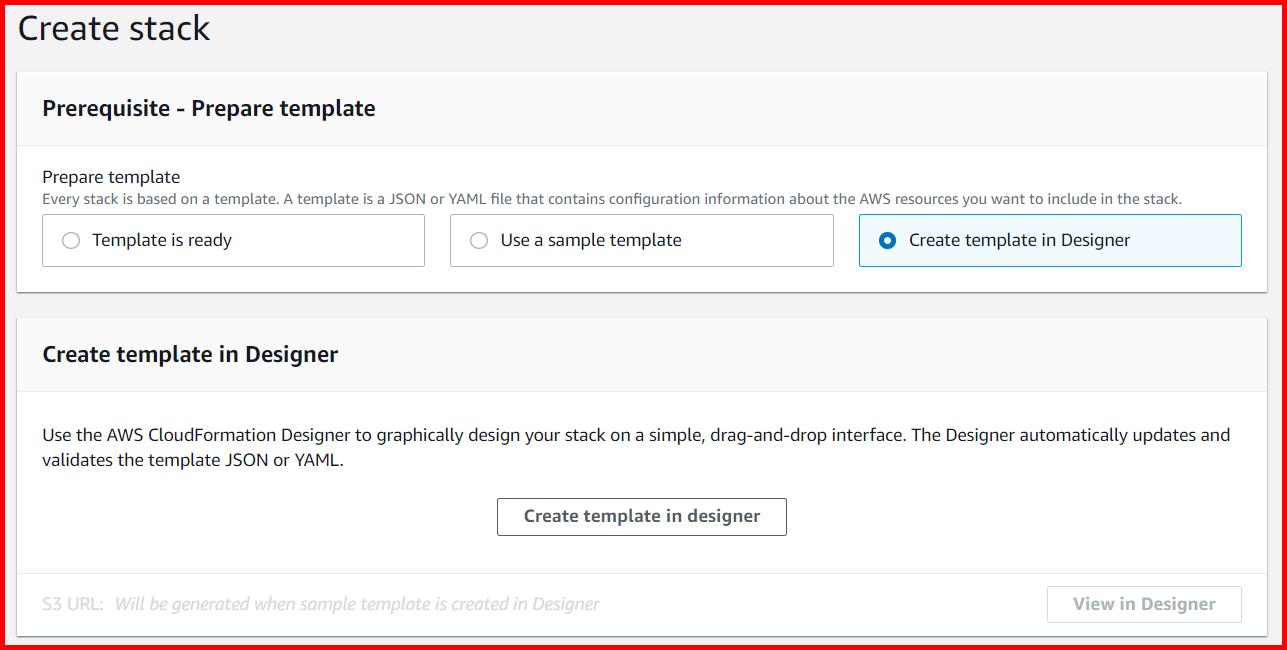

In the create stack screen, select the radio button Create template in Designer.

Picture showing selecting the Create template in Designer radio button

Click to Enlarge

Click on the Create template in designer button. The designer screen will appear.

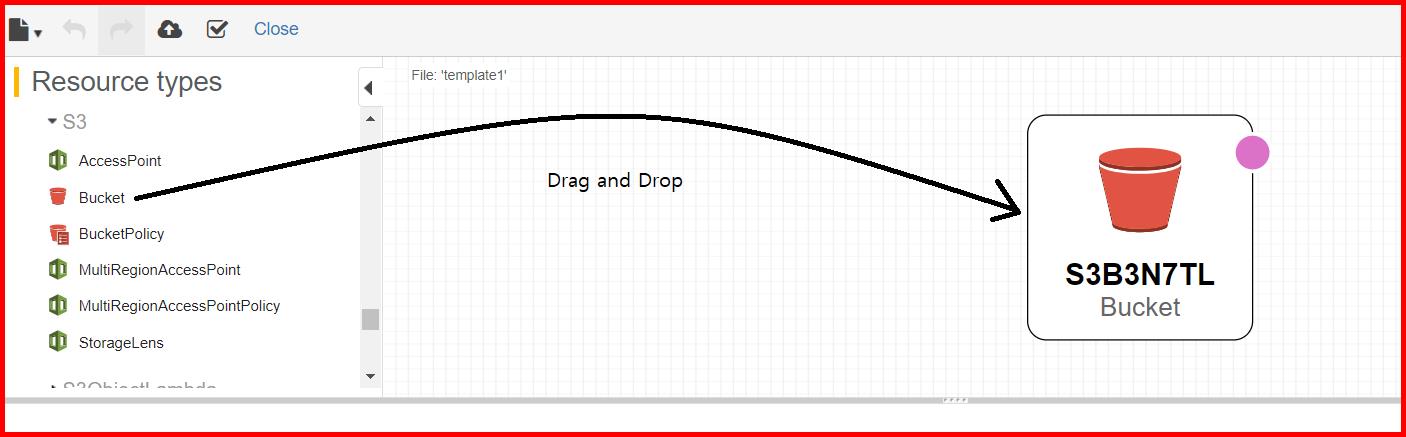

Picture showing dragging and dropping the S3 bucket on the designer screen

Click to Enlarge

Drag and drop the resource. For this article, we are dragging and dropping the S3 bucket on the designer.

Once done, save the template

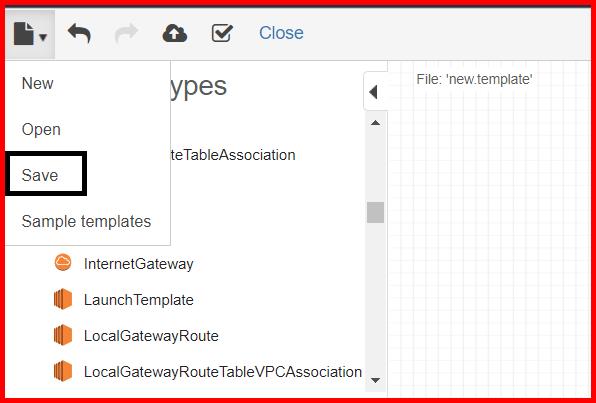

Picture showing the Save menu for saving the template

Click to Enlarge

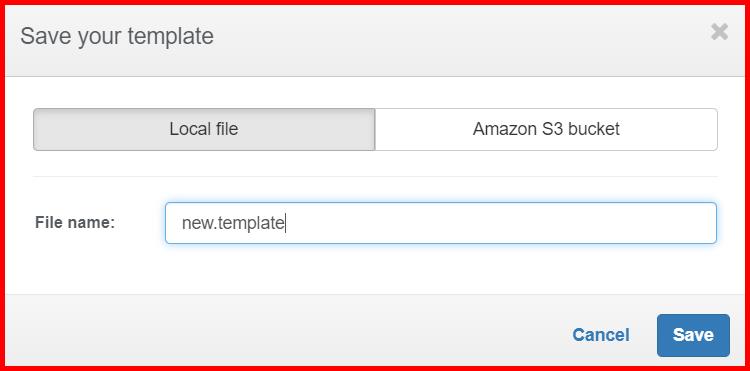

A popup window will appear to specify the location. For this article, we are saving the template file locally.

Click to Enlarge

Create A Stack With The Template

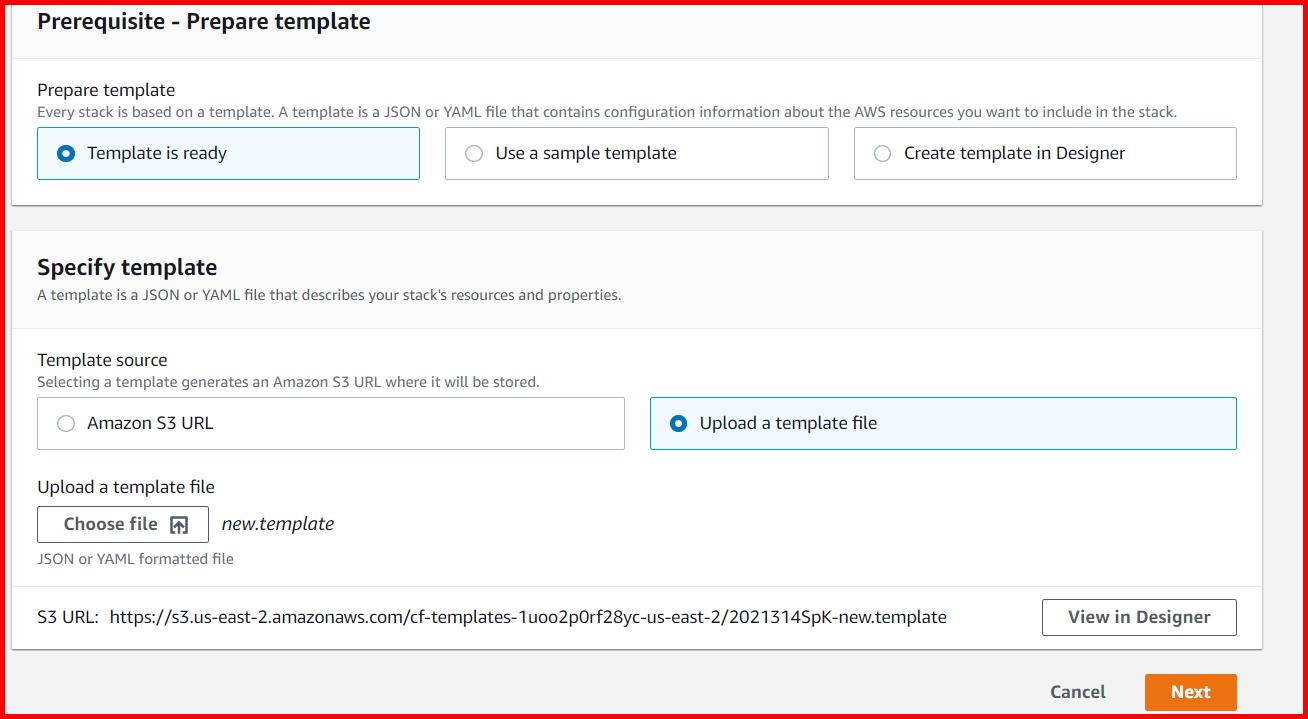

Now again go back to the stack creation screen and this time, select the radio button Template is ready. Upload the template file and click on the Next button.

Picture showing creating the cloud formation by using template

Click to Enlarge

In the next screen, enter the Stack name and click on the Next button.

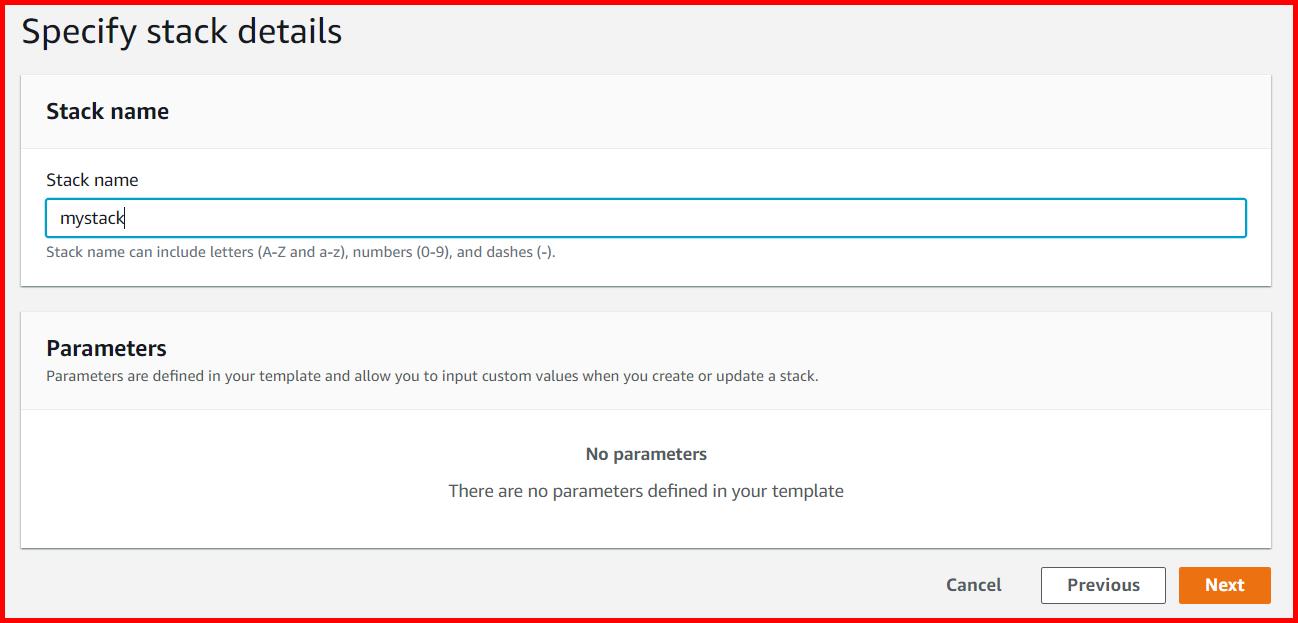

Picture showing the screen for specifying the stack name

Click to Enlarge

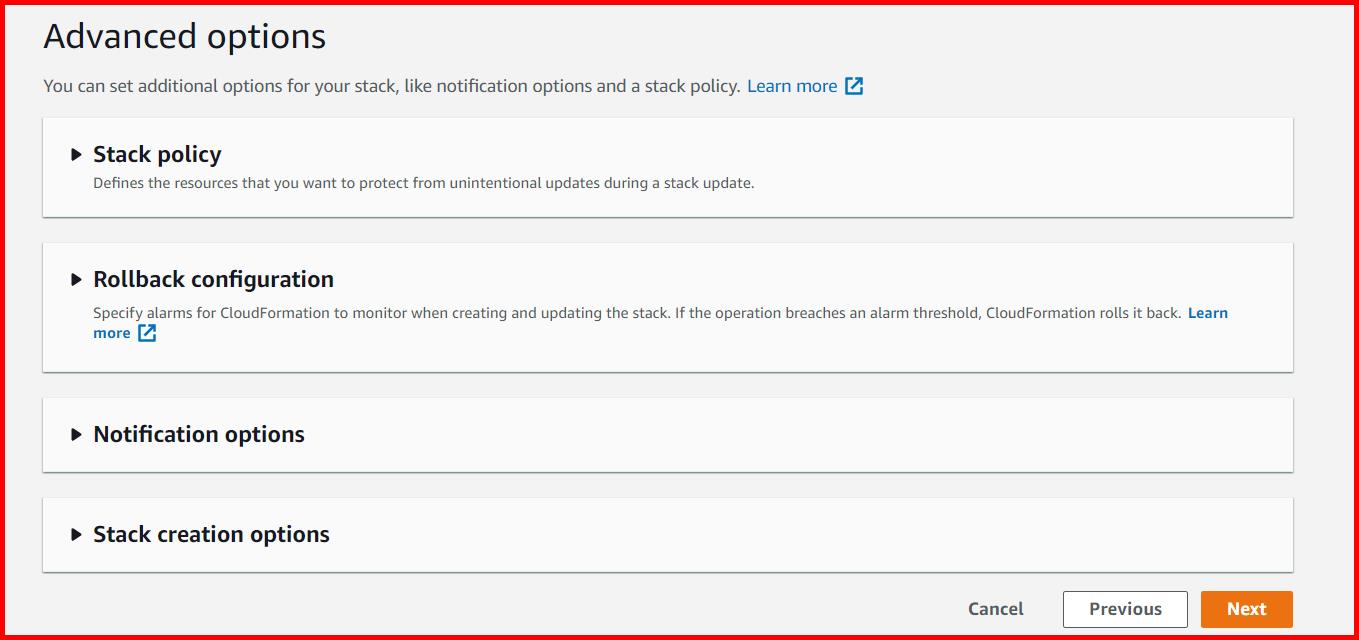

In the next screen, do not change anything and click on the Next button.

Picture showing the advanced options screen while creating the stack

Click to Enlarge

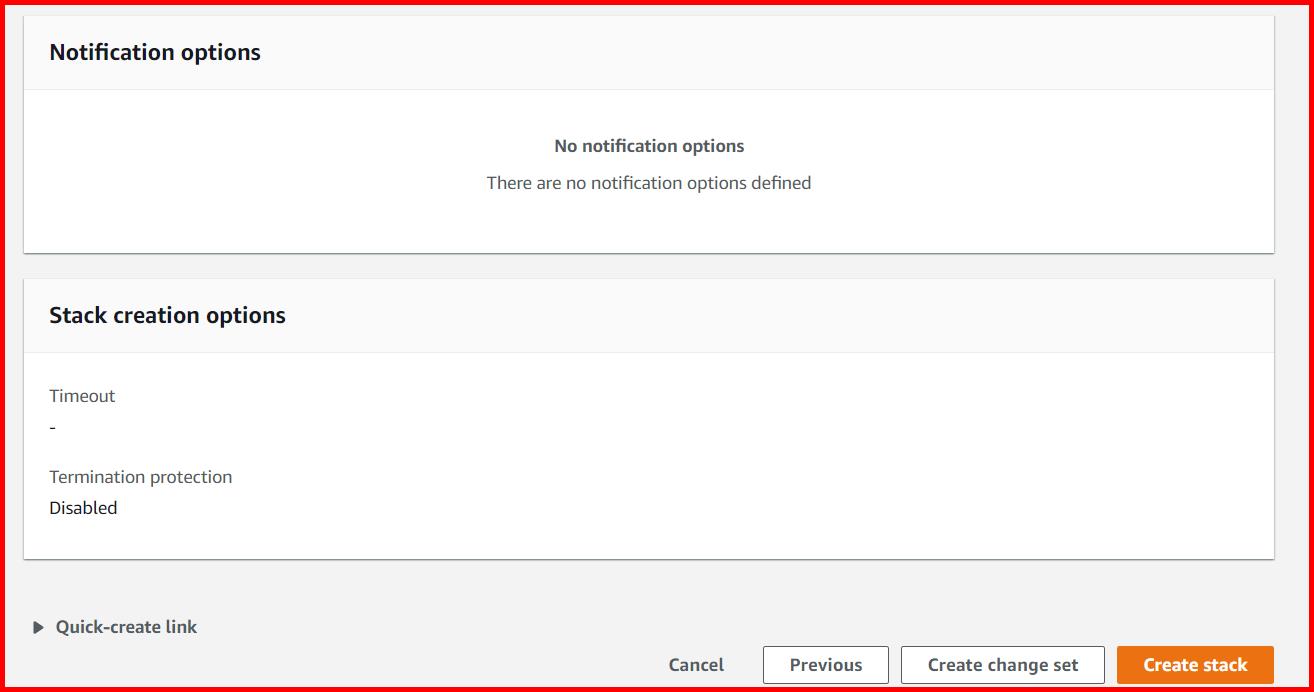

In the next screen, click on the Create stack button.

Picture showing the Create stack button for creating the new stack

Click to Enlarge

The resource creation will start.

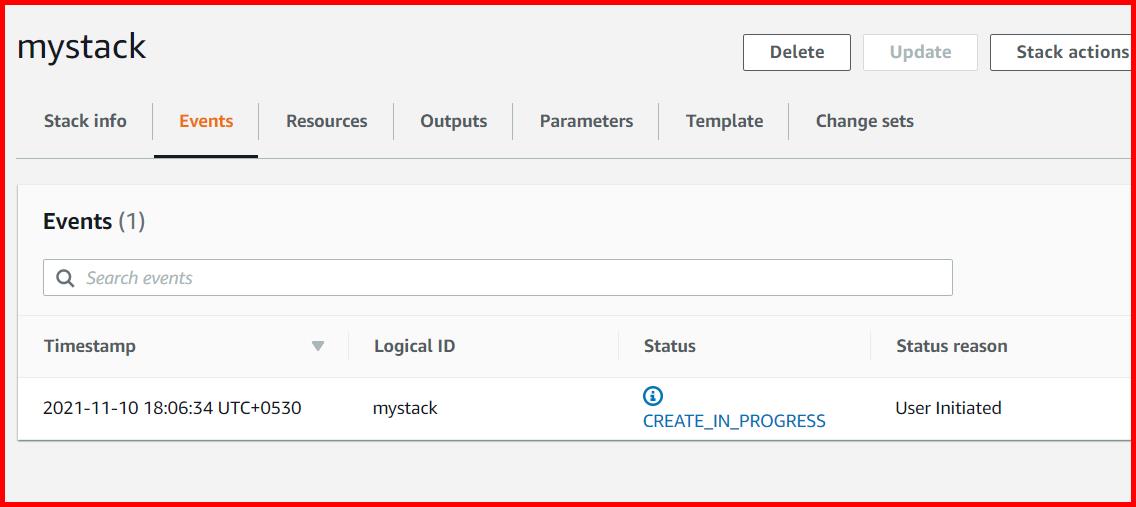

Picture showing the status of stack creation as in progress

Click to Enlarge

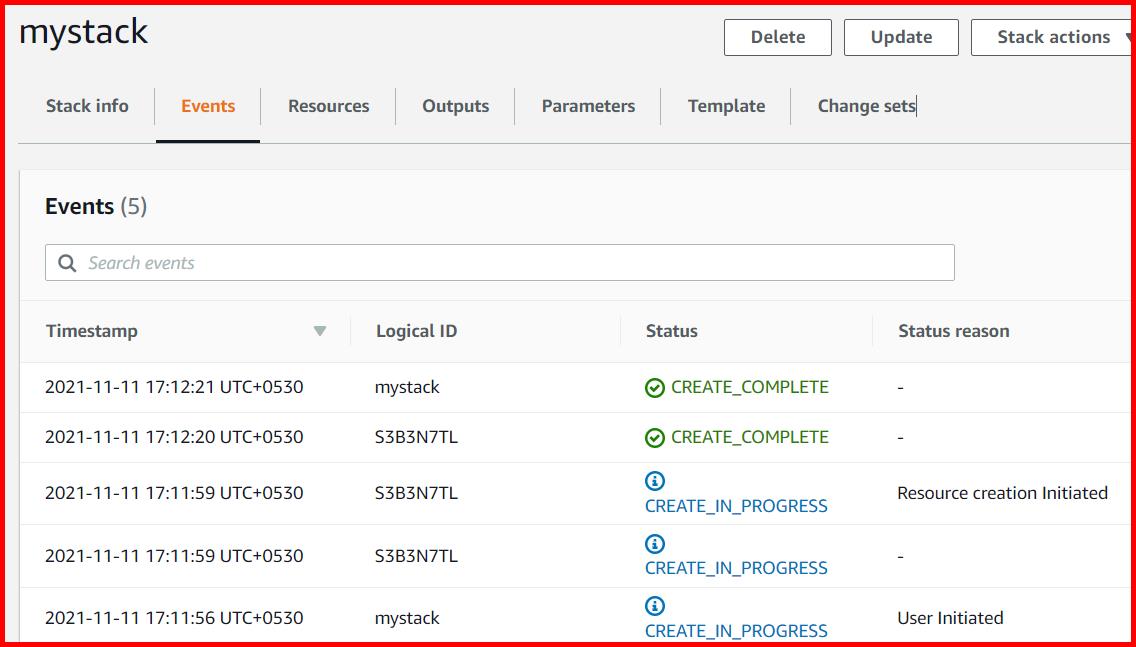

Once the resource is created, you will see the success event.

Picture showing the status of stack creation as completed

Click to Enlarge

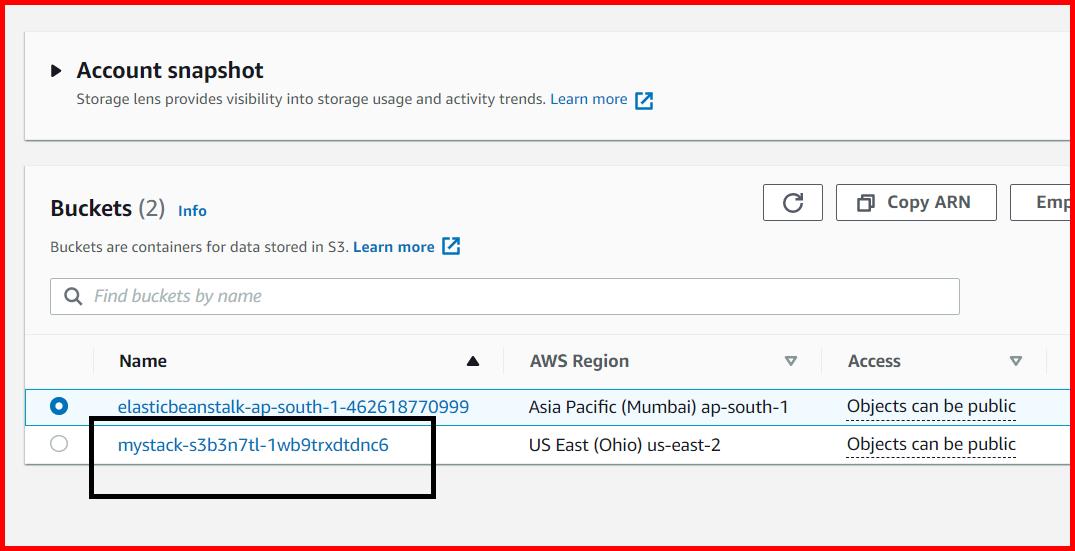

The S3 bucket is created.

Picture showing the creation of S3 bucket using the cloud formation in AWS

Click to Enlarge
